Exterior lighting › Brake lights wiring diagram

Wiring diagrams and electrical functionsBrake lights wiring diagram

BRAKE LIGHTS WIRING DIAGRAM

Combi, Minibus, Panorama, Van

Wiring Diagram

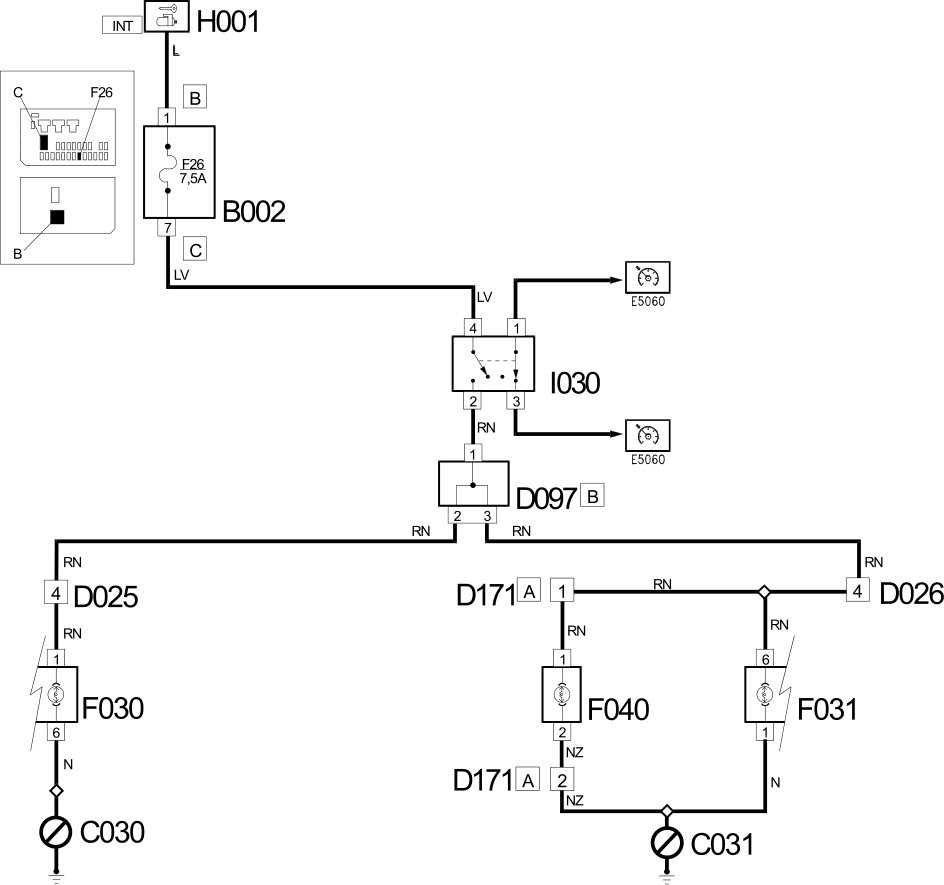

Components

Component code	Description	Reference to the assembly
B002	JUNCTION UNIT UNDER DASHBOARD
C030	LEFT REAR EARTH
C031	RIGHT REAR EARTH
D025	DASHBOARD/LEFT REAR COUPLING
D026	DASHBOARD/RIGHT REAR COUPLING
D097	SHORT CIRCUITING COUPLING
D171	RIGHT REAR/LUGGAGE COMPARTMENT COUPLING
F030	LEFT REAR LIGHT CLUSTER
F031	RIGHT REAR LIGHT CLUSTER
F040	ADDITIONAL REAR LIGHT (THIRD BRAKE LIGHT)
I030	BRAKE PEDAL SWITCH

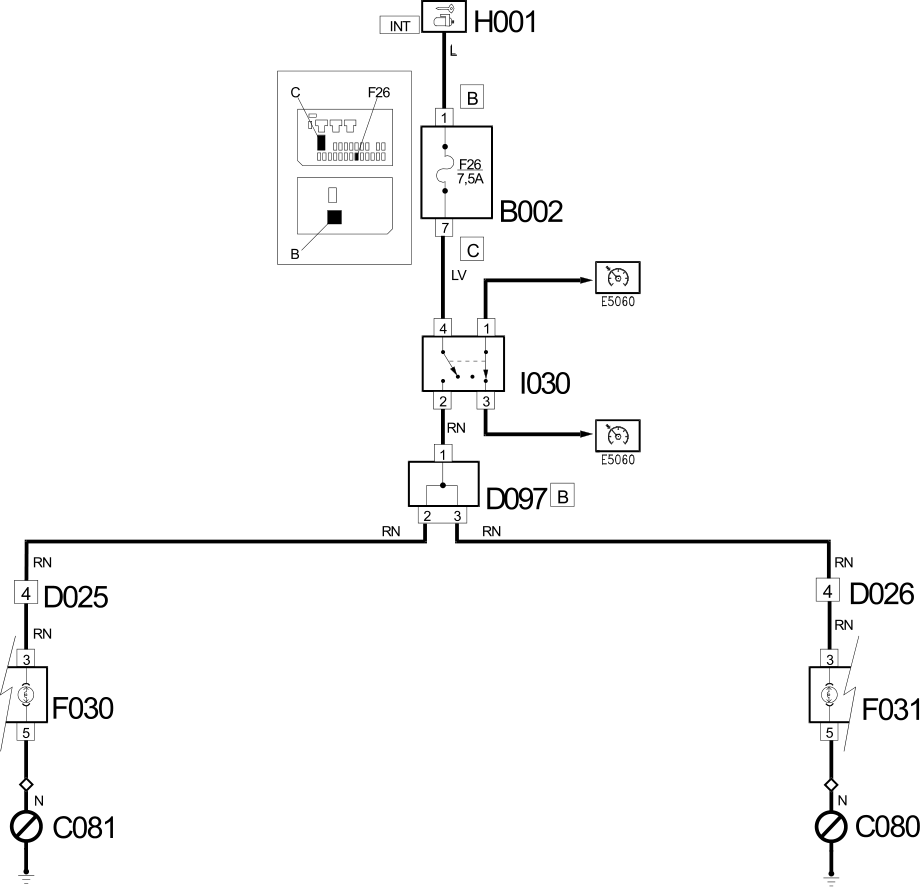

Chassis cab

Components

Component code	Description	Reference to the assembly
B002	JUNCTION UNIT UNDER DASHBOARD
C030	LEFT REAR EARTH
C031	RIGHT REAR EARTH
C080	RIGHT REAR LIGHT CLUSTER EARTH
C081	LEFT REAR LIGHT CLUSTER EARTH
D025	DASHBOARD/LEFT REAR COUPLING
D026	DASHBOARD/RIGHT REAR COUPLING
D097	SHORT CIRCUITING COUPLING
D171	RIGHT REAR/LUGGAGE COMPARTMENT COUPLING
F030	LEFT REAR LIGHT CLUSTER
F031	RIGHT REAR LIGHT CLUSTER
F040	ADDITIONAL REAR LIGHT (THIRD BRAKE LIGHT)
I030	BRAKE PEDAL SWITCH
