REAR FOGLAMPS WIRING DIAGRAM

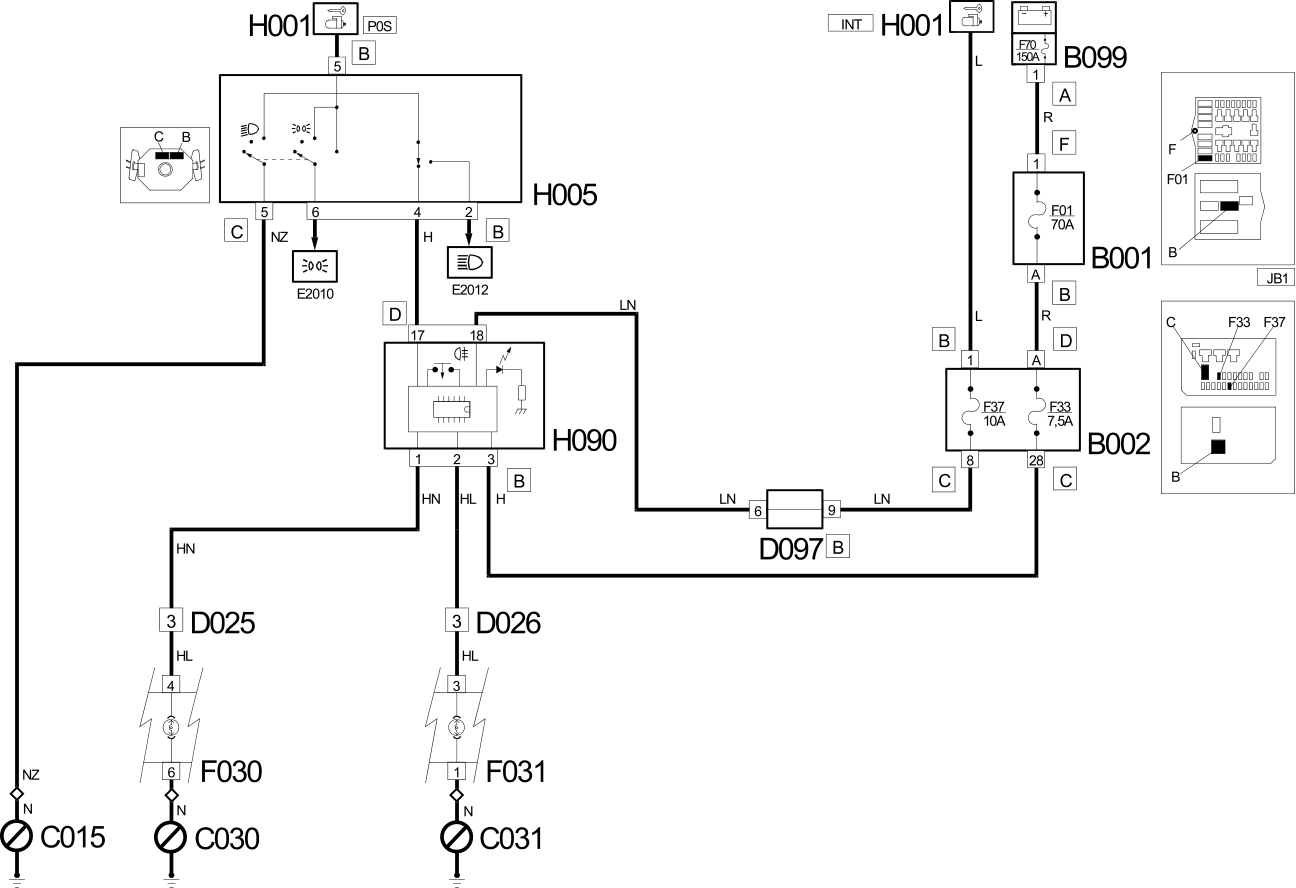

Combi, Minibus, Panorama, Van

Wiring Diagram

Components

Component code	Description	Reference to the assembly
B001	JUNCTION UNIT
B002	JUNCTION UNIT UNDER DASHBOARD
B099	MAXI FUSE BOX ON BATTERY
C015	DASHBOARD EARTH, DRIVER'S SIDE
C030	LEFT REAR EARTH
D025	DASHBOARD/LEFT REAR COUPLING
D026	DASHBOARD/RIGHT REAR COUPLING
D097	SHORT CIRCUITING COUPLING
F030	LEFT REAR LIGHT CLUSTER
F031	RIGHT REAR LIGHT CLUSTER
H090	SWITCH CONTROL PANEL

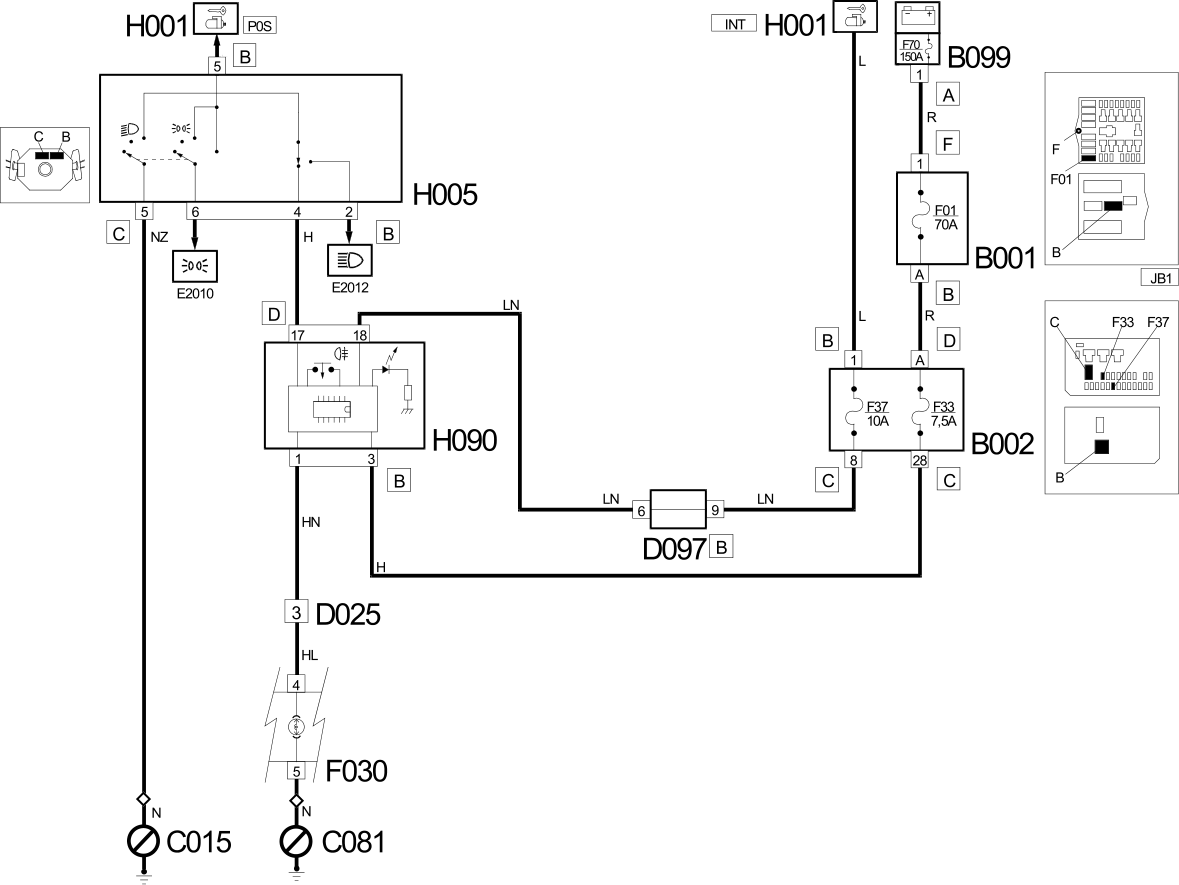

Chassis cab

Wiring Diagram

Components

Component code	Description	Reference to the assembly
B001	JUNCTION UNIT
B002	JUNCTION UNIT UNDER DASHBOARD
B099	MAXI FUSE BOX ON BATTERY
C015	DASHBOARD EARTH, DRIVER'S SIDE
C030	LEFT REAR EARTH
C081	LEFT REAR LIGHT CLUSTER EARTH
D025	DASHBOARD/LEFT REAR COUPLING
D026	DASHBOARD/RIGHT REAR COUPLING
D097	SHORT CIRCUITING COUPLING
F030	LEFT REAR LIGHT CLUSTER
F031	RIGHT REAR LIGHT CLUSTER
H090	SWITCH CONTROL PANEL
