Fog lights wiring diagram
- Make
- Fiat
- Model
- Ducato Factory Service Manual
- Year
- 2002–2006
- Section
- Exterior lighting › Fog lights wiring diagram
Wiring diagrams and electrical functionsFog lights wiring diagram

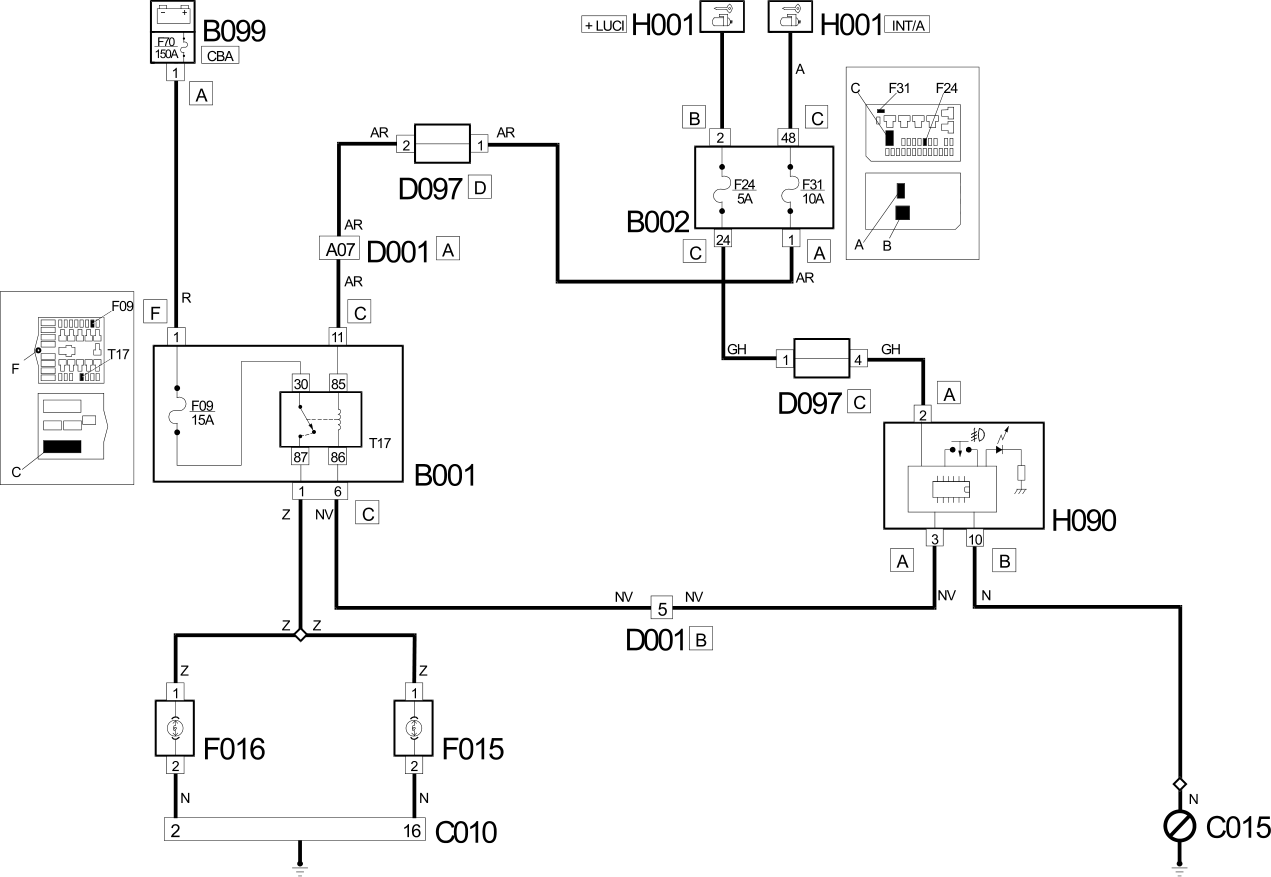

FOG LIGHTS WIRING DIAGRAM
Wiring Diagram
Components
| Component code | Description | Reference to the assembly |
|---|---|---|
| B001 | JUNCTION UNIT | |
| B002 | JUNCTION UNIT UNDER DASHBOARD | |
| B099 | MAXI FUSE BOX ON BATTERY | |
| C010 | LEFT FRONT EARTH | |
| C015 | DASHBOARD EARTH, DRIVER'S SIDE | |
| D001 | FRONT/DASHBOARD COUPLING | |
| D097 | SHORT CIRCUITING COUPLING | |
| F015 | LEFT FOG LAMP | |
| F016 | RIGHT FOG LAMP | |
| H090 | SWITCH CONTROL PANEL |
