Wiring diagrams and electrical functions Reversing lights wiring diagram

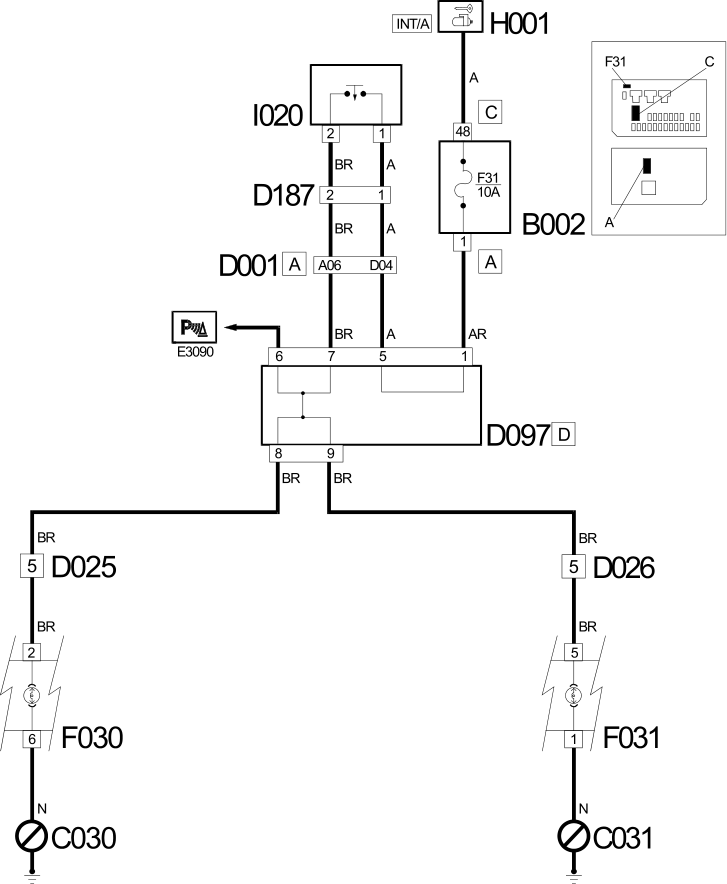

REVERSING LIGHTS WIRING DIAGRAM
Combi, Minibus, Panorama, Van
Wiring Diagram
Components
Component code Description Reference to the assembly B002 JUNCTION UNIT UNDER DASHBOARD C030 LEFT REAR EARTH C031 RIGHT REAR EARTH D001 FRONT/DASHBOARD COUPLING D025 DASHBOARD/LEFT REAR COUPLING D026 DASHBOARD/RIGHT REAR COUPLING D097 SHORT CIRCUITING COUPLING D187 FRONT/REVERSING SWITCH BRIDGE COUPLING F030 LEFT REAR LIGHT CLUSTER F031 RIGHT REAR LIGHT CLUSTER I020 REVERSING LIGHTS SWITCH I081 MULTIFUNCTION SWITCH ON GEARBOX
2.8 JTD 8V · Automatic Transmission, Combi, Minibus, Panorama, Van
Wiring Diagram
Components
Component code Description Reference to the assembly B002 JUNCTION UNIT UNDER DASHBOARD C030 LEFT REAR EARTH C031 RIGHT REAR EARTH D001 FRONT/DASHBOARD COUPLING D025 DASHBOARD/LEFT REAR COUPLING D026 DASHBOARD/RIGHT REAR COUPLING D097 SHORT CIRCUITING COUPLING D187 FRONT/REVERSING SWITCH BRIDGE COUPLING F030 LEFT REAR LIGHT CLUSTER F031 RIGHT REAR LIGHT CLUSTER I020 REVERSING LIGHTS SWITCH I081 MULTIFUNCTION SWITCH ON GEARBOX
2.8 JTD 8V · Automatic Transmission, Chassis cab
Wiring Diagram
Components
Component code Description Reference to the assembly B002 JUNCTION UNIT UNDER DASHBOARD C030 LEFT REAR EARTH C031 RIGHT REAR EARTH D001 FRONT/DASHBOARD COUPLING D025 DASHBOARD/LEFT REAR COUPLING D026 DASHBOARD/RIGHT REAR COUPLING D097 SHORT CIRCUITING COUPLING D187 FRONT/REVERSING SWITCH BRIDGE COUPLING F030 LEFT REAR LIGHT CLUSTER F031 RIGHT REAR LIGHT CLUSTER I020 REVERSING LIGHTS SWITCH I081 MULTIFUNCTION SWITCH ON GEARBOX
Chassis cab

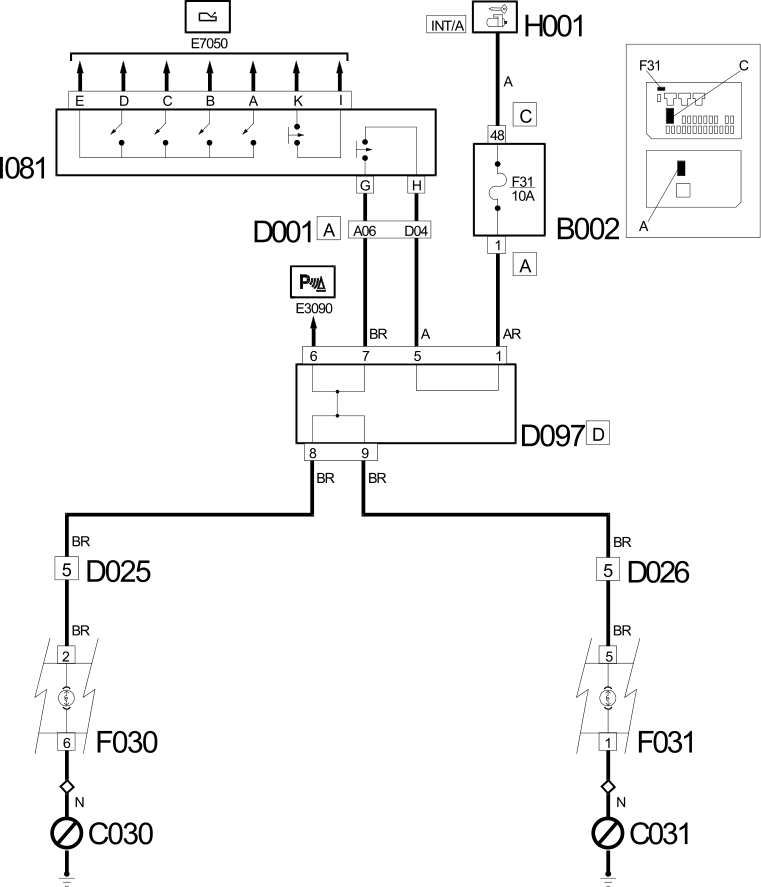

Wiring Diagram
Components
Component code Description Reference to the assembly B002 JUNCTION UNIT UNDER DASHBOARD C030 LEFT REAR EARTH C031 RIGHT REAR EARTH C080 RIGHT REAR LIGHT CLUSTER EARTH D001 FRONT/DASHBOARD COUPLING D025 DASHBOARD/LEFT REAR COUPLING D026 DASHBOARD/RIGHT REAR COUPLING D097 SHORT CIRCUITING COUPLING D187 FRONT/REVERSING SWITCH BRIDGE COUPLING F030 LEFT REAR LIGHT CLUSTER F031 RIGHT REAR LIGHT CLUSTER I020 REVERSING LIGHTS SWITCH I081 MULTIFUNCTION SWITCH ON GEARBOX
20 Electrical
