PASSIVE ENTRY - Wiring diagram
- Make
- Fiat
- Model
- Stilo Factory Service Manual
- Year
- 2001–2007
- Section
- Vehicle electronic systems › PASSIVE ENTRY - Wiring diagram
Wiring diagrams and electrical functionsPASSIVE ENTRY - Wiring diagram
PASSIVE ENTRY - Wiring diagram

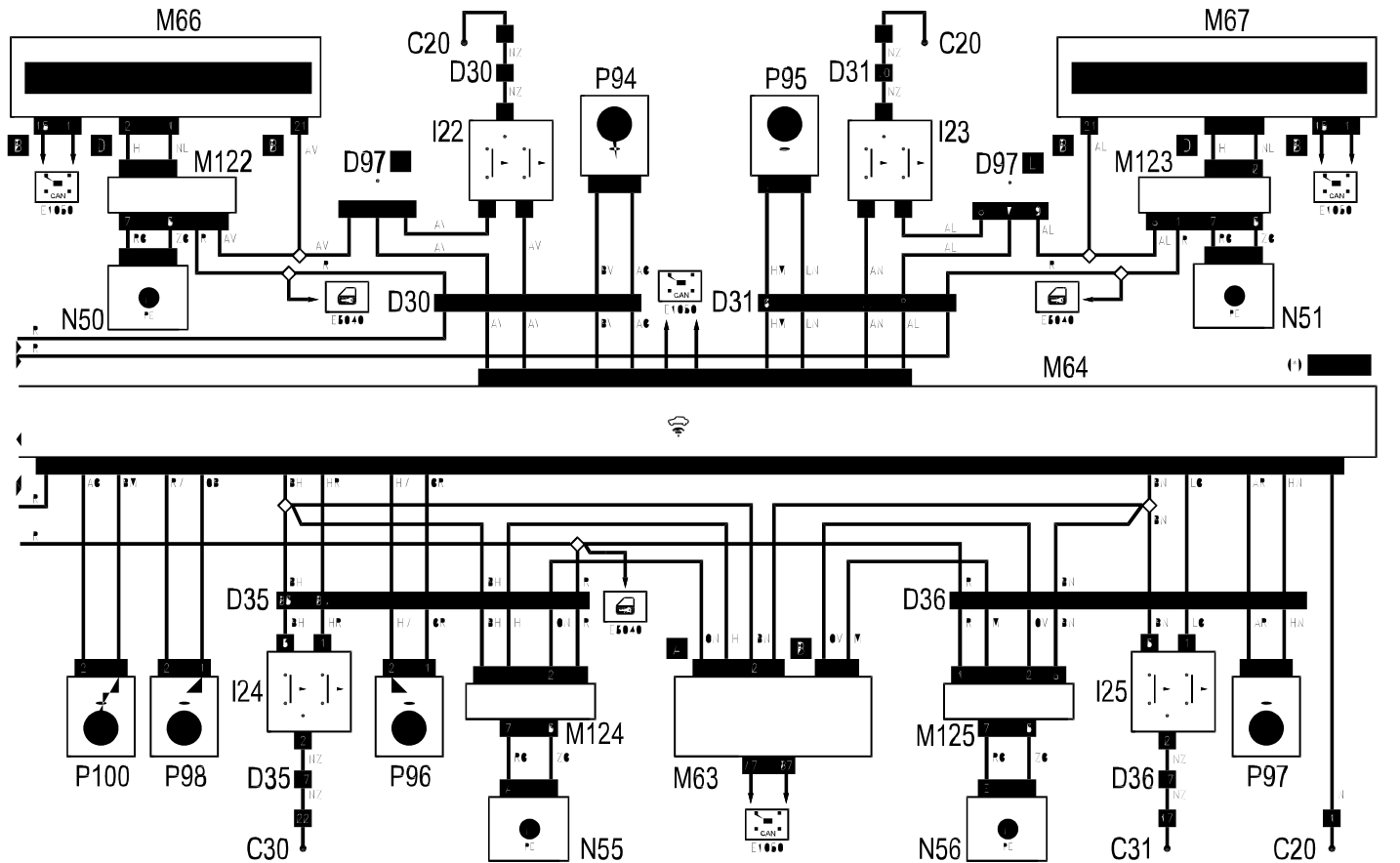

Wiring diagram
COMPONENTS
| Component code | Name | Assembly reference |
|---|---|---|
| B2 | Junction unit under dashboard | 5505A |
| B45 | Luggage compartment junction unit | |
| B99 | Maxifuse box on battery | 5530B |
| C15 | Facia earth, driver's side | |
| C20 | Passenger side dashboard earth | |
| C30 | Left rear earth | |
| C31 | Rear right earth | |
| D20 | /Rear dashboard coupling | |
| D20 | Dashboard/rear coupling | |
| D30 | Rear coupling for /front door. driver's side | |
| D31 | /Front passenger door. rear coupling | |
| D31 | Front passenger door/ rear coupling. | |
| D35 | Left /rear door. coupling | |
| D35 | Rear / rear door coupling left | |
| D36 | Rear/right door coupling right | |
| D36 | Right /rear door. rear coupling | |
| D97 | Short circuiting coupling | |
| F52 | Number plate lights | |
| F52 | Number plate lights | 7015B |
| I22 | Switch on driver's outer front handle | 7005C |
| I22 | Switch on driver's side outer front handle | 7005C |
| I23 | Switch on passenger side outer front handle | 7005C |
| I24 | Switch on left outer rear handle | 7010C |
| I24 | Switch on left outside rear handle | 7010C |
| I25 | Switch on right outer rear handle | 7010C |
| I33 | Switch on boot outer handle | |
| I33 | Switch on boot outer handle | 7015B |
| M1 | Body computer | 5505A |
| M122 | Driver side front door 'easy go' control unit | |
| M123 | Passenger side front door 'easy go' control unit | |
| M124 | Driver side rear door 'easy go' control unit | |
| M125 | Passenger side rear door 'easy go' control unit | |
| M63 | Luggage compartment control unit | 5505A |
| M64 | Passive entry control unt | |
| M66 | Driver's door control unit | 5505A |
| M67 | Passenger door control unit | 5505A |
| N50 | .Front driver's door lock geared motor | 7005N |
| N50 | Front driver's door lock geared motor. | 7005N |
| N51 | Front passenger door lock geared motor | 7005N |
| N51 | Passenger side front door lock geared motor | 7005N |
| N55 | Left rear. door lock geared motor | 7010N |
| N56 | Rear door lock geared motor right | 7010N |
| N56 | Right rear. door lock geared motor | 7010N |
| P100 | RF aerial in boot for passive entry | |
| P15 | RF aerial for passive entry control unit | |
| P77 | RF aerial on tunnel for passive entry | |
| P78 | RF aerial in dashboard for passive entry | |
| P94 | Left front door RF aerial for passive entry | |
| P95 | Right front door RF aerial for passive entry | |
| P96 | Left rear door RF aerial for passive entry | |
| P97 | RF aerial on right rear door for passive entry | |
| P97 | Right rear door RF aerial for passive entry | |
| P98 | RF aerial on rear bumper for passive entry | 5580E |
| P99 | Fiat Code passive entry RF aerial |

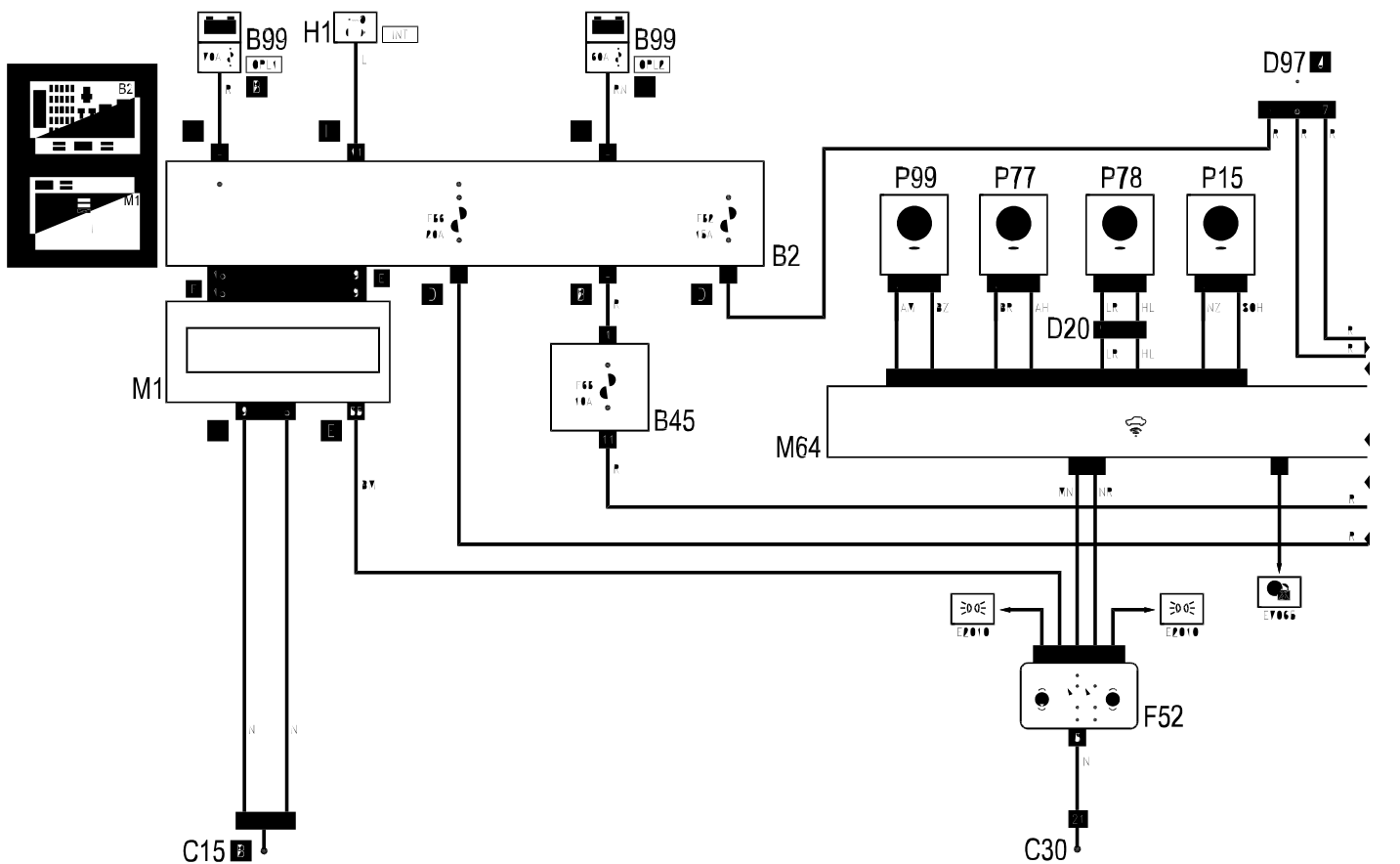

Wiring diagram
COMPONENTS
| Component code | Name | Assembly reference |
|---|---|---|
| B2 | Junction unit under dashboard | 5505A |
| B45 | Luggage compartment junction unit | |
| B99 | Maxifuse box on battery | 5530B |
| C15 | Facia earth, driver's side | |
| C20 | Passenger side dashboard earth | |
| C30 | Left rear earth | |
| C31 | Rear right earth | |
| D20 | /Rear dashboard coupling | |
| D20 | Dashboard/rear coupling | |
| D30 | Rear coupling for /front door. driver's side | |
| D31 | /Front passenger door. rear coupling | |
| D31 | Front passenger door/ rear coupling. | |
| D35 | Left /rear door. coupling | |
| D35 | Rear / rear door coupling left | |
| D36 | Rear/right door coupling right | |
| D36 | Right /rear door. rear coupling | |
| D97 | Short circuiting coupling | |
| F52 | Number plate lights | |
| F52 | Number plate lights | 7015B |
| I22 | Switch on driver's outer front handle | 7005C |
| I22 | Switch on driver's side outer front handle | 7005C |
| I23 | Switch on passenger side outer front handle | 7005C |
| I24 | Switch on left outer rear handle | 7010C |
| I24 | Switch on left outside rear handle | 7010C |
| I25 | Switch on right outer rear handle | 7010C |
| I33 | Switch on boot outer handle | |
| I33 | Switch on boot outer handle | 7015B |
| M1 | Body computer | 5505A |
| M122 | Driver side front door 'easy go' control unit | |
| M123 | Passenger side front door 'easy go' control unit | |
| M124 | Driver side rear door 'easy go' control unit | |
| M125 | Passenger side rear door 'easy go' control unit | |
| M63 | Luggage compartment control unit | 5505A |
| M64 | Passive entry control unt | |
| M66 | Driver's door control unit | 5505A |
| M67 | Passenger door control unit | 5505A |
| N50 | .Front driver's door lock geared motor | 7005N |
| N50 | Front driver's door lock geared motor. | 7005N |
| N51 | Front passenger door lock geared motor | 7005N |
| N51 | Passenger side front door lock geared motor | 7005N |
| N55 | Left rear. door lock geared motor | 7010N |
| N56 | Rear door lock geared motor right | 7010N |
| N56 | Right rear. door lock geared motor | 7010N |
| P100 | RF aerial in boot for passive entry | |
| P15 | RF aerial for passive entry control unit | |
| P77 | RF aerial on tunnel for passive entry | |
| P78 | RF aerial in dashboard for passive entry | |
| P94 | Left front door RF aerial for passive entry | |
| P95 | Right front door RF aerial for passive entry | |
| P96 | Left rear door RF aerial for passive entry | |
| P97 | RF aerial on right rear door for passive entry | |
| P97 | Right rear door RF aerial for passive entry | |
| P98 | RF aerial on rear bumper for passive entry | 5580E |
| P99 | Fiat Code passive entry RF aerial |

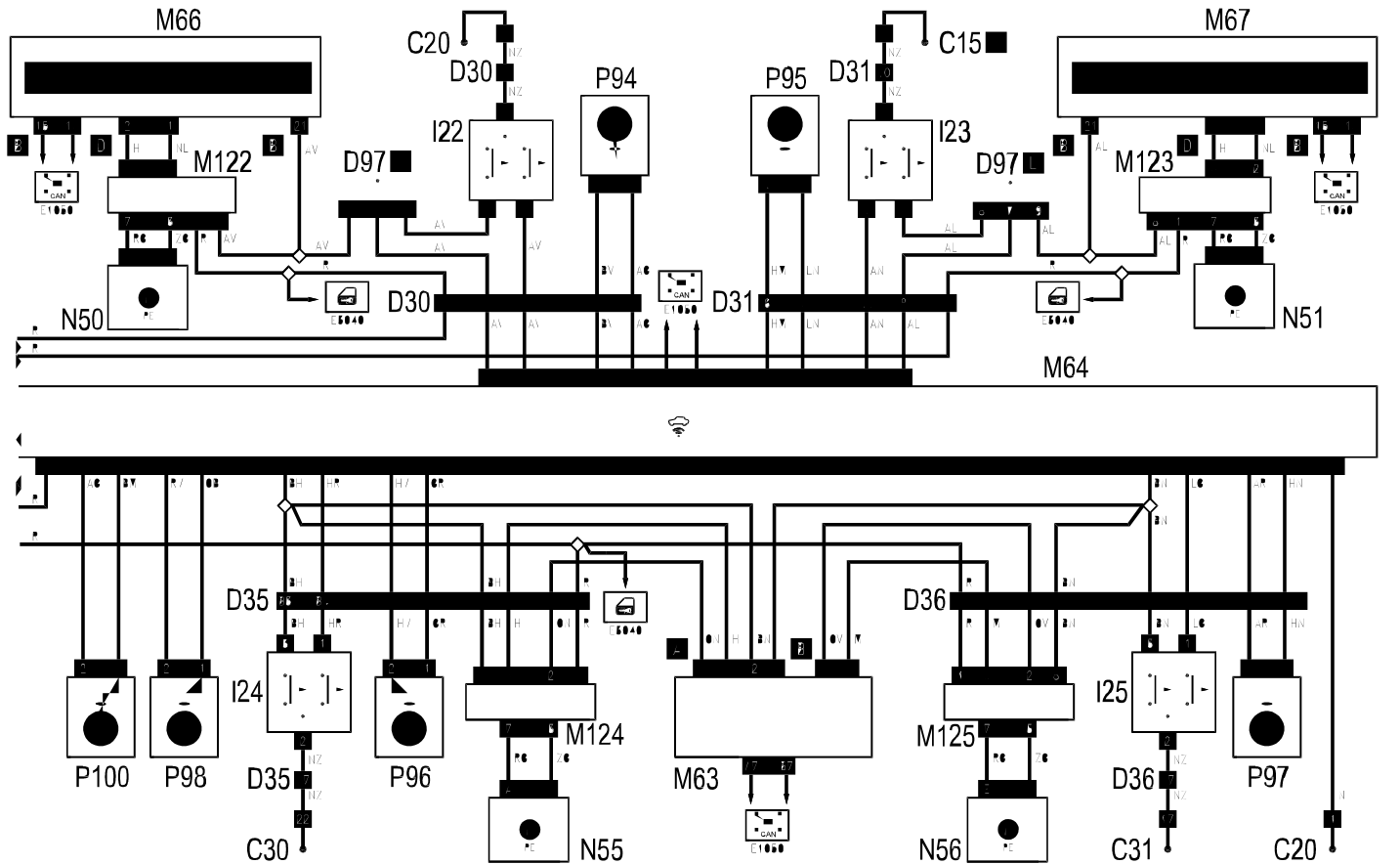

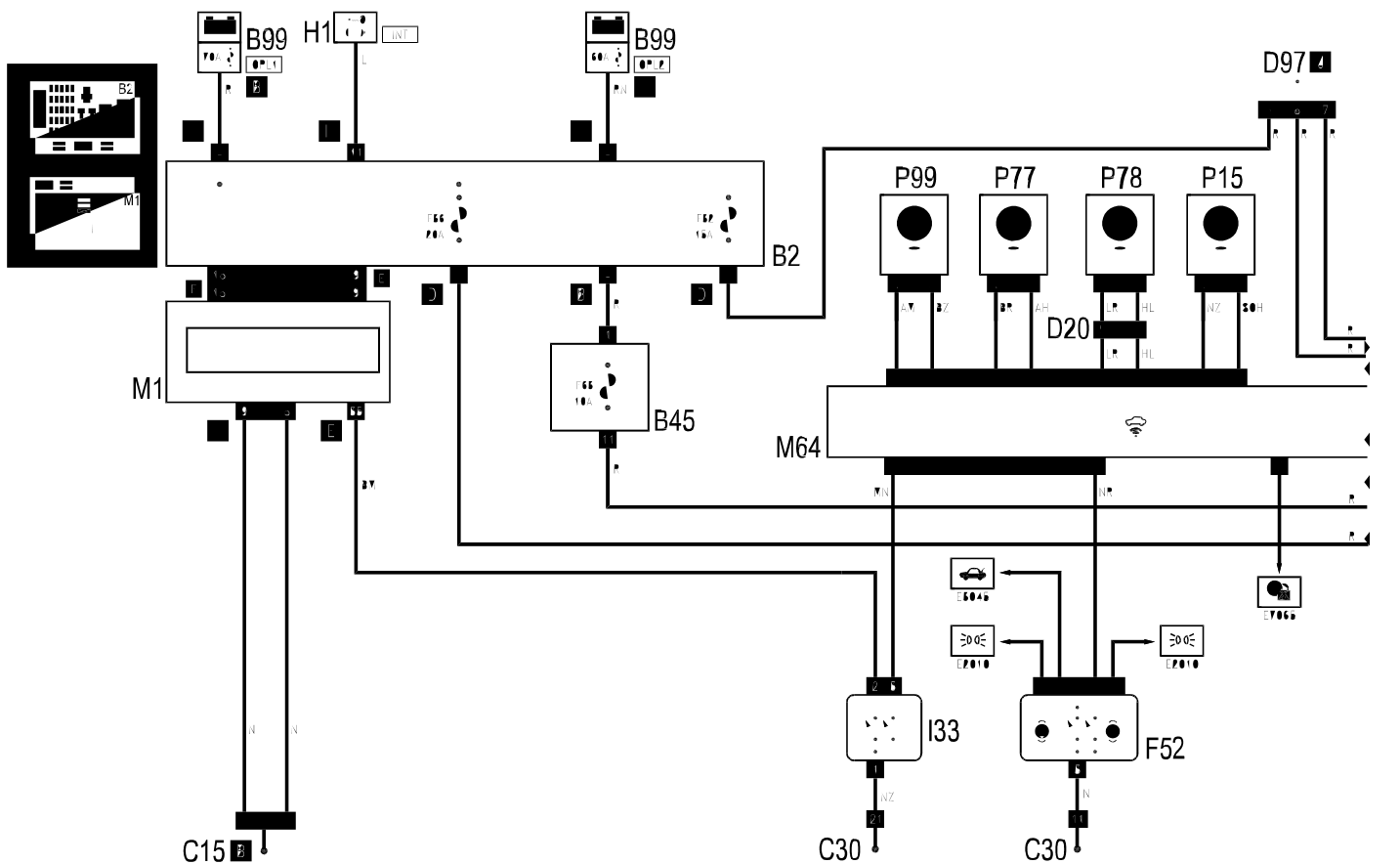

Wiring diagram
COMPONENTS
| Component code | Name | Assembly reference |
|---|---|---|
| B2 | Junction unit under dashboard | 5505A |
| B45 | Luggage compartment junction unit | |
| B99 | Maxifuse box on battery | 5530B |
| C15 | Facia earth, driver's side | |
| C20 | Passenger side dashboard earth | |
| C30 | Left rear earth | |
| C31 | Rear right earth | |
| D20 | /Rear dashboard coupling | |
| D20 | Dashboard/rear coupling | |
| D30 | Rear coupling for /front door. driver's side | |
| D31 | /Front passenger door. rear coupling | |
| D31 | Front passenger door/ rear coupling. | |
| D35 | Left /rear door. coupling | |
| D35 | Rear / rear door coupling left | |
| D36 | Rear/right door coupling right | |
| D36 | Right /rear door. rear coupling | |
| D97 | Short circuiting coupling | |
| F52 | Number plate lights | |
| F52 | Number plate lights | 7015B |
| I22 | Switch on driver's outer front handle | 7005C |
| I22 | Switch on driver's side outer front handle | 7005C |
| I23 | Switch on passenger side outer front handle | 7005C |
| I24 | Switch on left outer rear handle | 7010C |
| I24 | Switch on left outside rear handle | 7010C |
| I25 | Switch on right outer rear handle | 7010C |
| I33 | Switch on boot outer handle | |
| I33 | Switch on boot outer handle | 7015B |
| M1 | Body computer | 5505A |
| M122 | Driver side front door 'easy go' control unit | |
| M123 | Passenger side front door 'easy go' control unit | |
| M124 | Driver side rear door 'easy go' control unit | |
| M125 | Passenger side rear door 'easy go' control unit | |
| M63 | Luggage compartment control unit | 5505A |
| M64 | Passive entry control unt | |
| M66 | Driver's door control unit | 5505A |
| M67 | Passenger door control unit | 5505A |
| N50 | .Front driver's door lock geared motor | 7005N |
| N50 | Front driver's door lock geared motor. | 7005N |
| N51 | Front passenger door lock geared motor | 7005N |
| N51 | Passenger side front door lock geared motor | 7005N |
| N55 | Left rear. door lock geared motor | 7010N |
| N56 | Rear door lock geared motor right | 7010N |
| N56 | Right rear. door lock geared motor | 7010N |
| P100 | RF aerial in boot for passive entry | |
| P15 | RF aerial for passive entry control unit | |
| P77 | RF aerial on tunnel for passive entry | |
| P78 | RF aerial in dashboard for passive entry | |
| P94 | Left front door RF aerial for passive entry | |
| P95 | Right front door RF aerial for passive entry | |
| P96 | Left rear door RF aerial for passive entry | |
| P97 | RF aerial on right rear door for passive entry | |
| P97 | Right rear door RF aerial for passive entry | |
| P98 | RF aerial on rear bumper for passive entry | 5580E |
| P99 | Fiat Code passive entry RF aerial |
