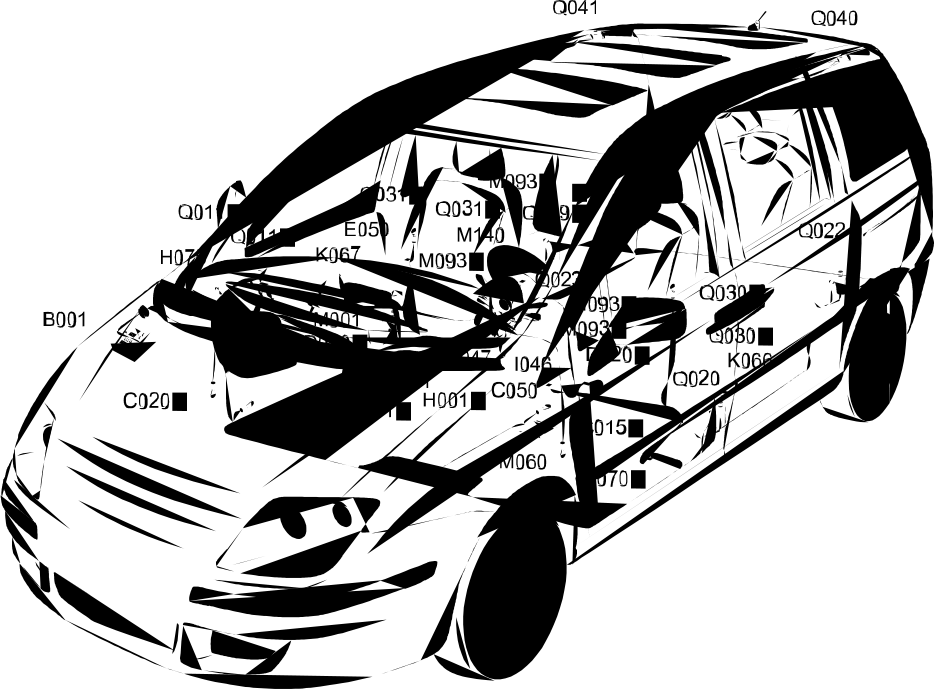

AIRBAG LOCATION COMPONENTS

Location Components

Components

Component code	Description	Reference to the assembly
C015	Driver''s dashboard earth
C020	Passenger dashboard earth
C050	Air Bag system earth
D020	Dashboard/rear coupling
D070	Driver''s seat coupling
D071	Passenger seat coupling
E050	Instrument panel	5560B
H075	Passenger Air Bag disabling switch	5580C
I046	Driver''s seat belt switch
I047	Passenger seat belt switch
K066	Sensor for front driver''s air bag	5580C
K067	Sensor for front passenger side air bag	5580C
M001	Body computer	5505A
M060	Air Bag control unit	5580C
M093	Steering wheel node control unit (NVO)	5550A
M140	Warning lights and milometer control unit (NSO)
Q009	Driver''s Air Bag	5580C
Q011	Air Bag in dashboard (passenger side)	5580C
Q020	Driver''s front seat belt pretensioner	7065A
Q021	Passenger front seat belt pretensioner	7065A
Q022	Driver''s side rear seat belt pretensioner	7065B
Q023	Passenger side rear seat belt pretensioner	7065B
Q030	Driver''s sidebag	5580C
Q031	Passenger sidebag	5580C
Q040	Driver''s Air Bag cover module
Q041	Passenger Air Bag cover module
