Esp wiring diagram

Make

Fiat

Model

Ulysse Factory Service Manual

Year

2002–2010

Section

Vehicle electronic systems › Esp wiring diagram

Wiring diagrams and electrical functionsEsp wiring diagram

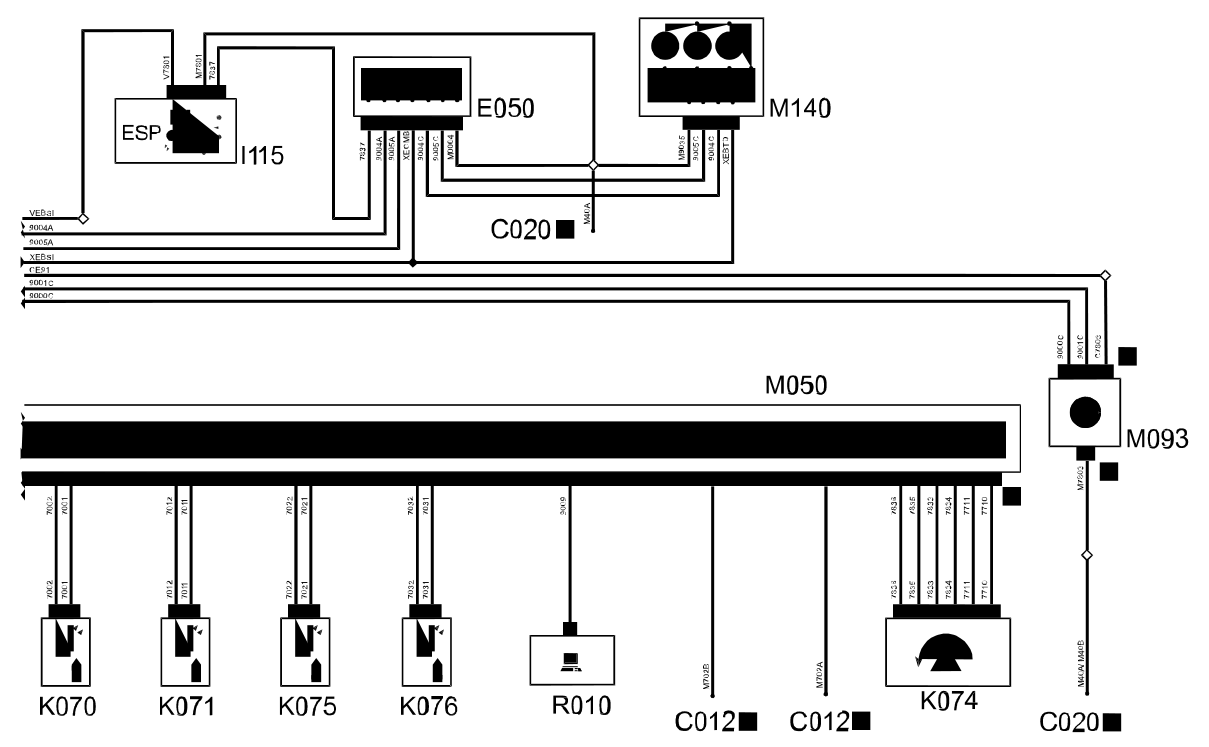

ESP WIRING DIAGRAM

Wiring Diagram

Components

Component code	Description	Reference to the assembly
See B001 ENGINE COMPARTMENT JUNCTION UNIT	Engine compartment junction unit	5505A
See C010 LEFT FRONT EARTH	Left front earth
See C011 RIGHT FRONT EARTH	Right front earth
See C012 ABS FRONT EARTH	ABS front earth
See C020 PASSENGER SIDE DASHBOARD EARTH	Passenger dashboard earth
See D001 FRONT/DASHBOARD COUPLING	Front/dashboard coupling
See D020 DASHBOARD/REAR COUPLING	Dashboard/rear coupling
See E050 INSTRUMENT PANEL(FACIA)	Instrument panel	5560B
See H001 Ignition switch	Ignition switch	5520A
See I030 BRAKE PEDAL SWITCH(FRONT)	Brake pedal switch	5550D
See I115 STABILITY CONTROL SYSTEM SWITCH(FACIA)	Stability control system switch
See K020 LEFT BRAKE PAD WEAR SENSOR (SWITCH)	Left brake pad wear sensor (switch)	3310A
See K021 RIGHT BRAKE PAD WEAR SENSOR (SWITCH)	Right brake pad wear sensor (switch)	3310A
See K025 BRAKE FLUID LEVEL SENSOR (SWITCH)	Brake fluid level sensor (switch)
See K070 LEFT FRONT WHEEL SENSOR FOR ABS	Left front wheel sensor for ABS	3340A
See K071 RIGHT FRONT WHEEL SENSOR FOR ABS	Right front wheel sensor for ABS	3340A
See K074 SLEWING SENSOR (VDC)	Slewing sensor (VDC)
See K075 LEFT REAR WHEEL SENSOR FOR ABS	Left rear wheel sensor for ABS	3340A
See K076 RIGHT REAR WHEEL SENSOR FOR ABS	Right rear wheel sensor for ABS	3340A
See M001 BODY COMPUTER	Body computer	5505A
See M010 ENGINE MANAGEMENT CONTROL UNIT	Engine management control unit	1060G
See M050 ABS CONTROL UNIT	ABS control unit	3340A
See M093 STEERING WHEEL NODE CONTROL UNIT (NVO)	Steering wheel node control unit (NVO)	5550A
See M140 WARNING LIGHTS AND MILOMETER CONTROL UNIT (NSO)(FACIA)	Warning lights and milometer control unit (NSO)
See descriptions R010 MULTIPLE DIAGNOSTIC COUPLING	Multiple diagnostic coupling

2.0 16V JTD, 2.2 16V JTD · MY 2005

Components

Component code	Description	Reference to the assembly
A001	BATTERY
B001	ENGINE COMPARTMENT JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
B005	MAXI FUSE BOX
B098	ADDITIONAL FUSE BOX
C010	LEFT FRONT EARTH
C011	RIGHT FRONT EARTH
C012	ABS FRONT EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
D001	FRONT/DASHBOARD COUPLING
D006	FRONT/REAR COUPLING
E050	INSTRUMENT PANEL	Op. 5560B ANALOGUE CONTROL PANEL
H001	Ignition switch	Op. 5520A IGNITION SWITCH
I030	BRAKE PEDAL SWITCH	Op. 5550D BRAKE AND REVERSING LIGHTS
I031	CLUTCH PEDAL SWITCH
I035	Safety switch on brake pedal for cruise control
I115	STABILITY CONTROL SYSTEM SWITCH
K020	LEFT BRAKE PAD WEAR SENSOR (SWITCH)	Op. 3310A FRONT DISC BRAKES
K021	RIGHT BRAKE PAD WEAR SENSOR (SWITCH)	Op. 3310A FRONT DISC BRAKES
K025	BRAKE FLUID LEVEL SENSOR (SWITCH)
K070	LEFT FRONT WHEEL SENSOR FOR ABS	Op. 3340A ABS CHECK/ADJUSTMENT DEVICES
K071	RIGHT FRONT WHEEL SENSOR FOR ABS	Op. 3340A ABS CHECK/ADJUSTMENT DEVICES
K075	LEFT REAR WHEEL SENSOR FOR ABS	Op. 3340A ABS CHECK/ADJUSTMENT DEVICES
K076	RIGHT REAR WHEEL SENSOR FOR ABS	Op. 3340A ABS CHECK/ADJUSTMENT DEVICES
M001	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
M010	ENGINE MANAGEMENT CONTROL UNIT	Op. 1060G DIESEL INJECTION PRESSURE PUMP ELECTRONIC CONTROL
M050	ABS CONTROL UNIT	Op. 3340A ABS CHECK/ADJUSTMENT DEVICES
M80	CENTRAL DOOR LOCKING CONTROL UNIT
M091	SLEWING CONTROL UNIT
M093	STEERING WHEEL NODE CONTROL UNIT (NVO)	Op. 5550A STALK UNIT
M140	WARNING LIGHTS AND MILOMETER CONTROL UNIT (NSO)
R010	MULTIPLE DIAGNOSTIC COUPLING

19 Electrical
