Wiring diagrams and electrical functionsAbs wiring diagram
ABS WIRING DIAGRAM

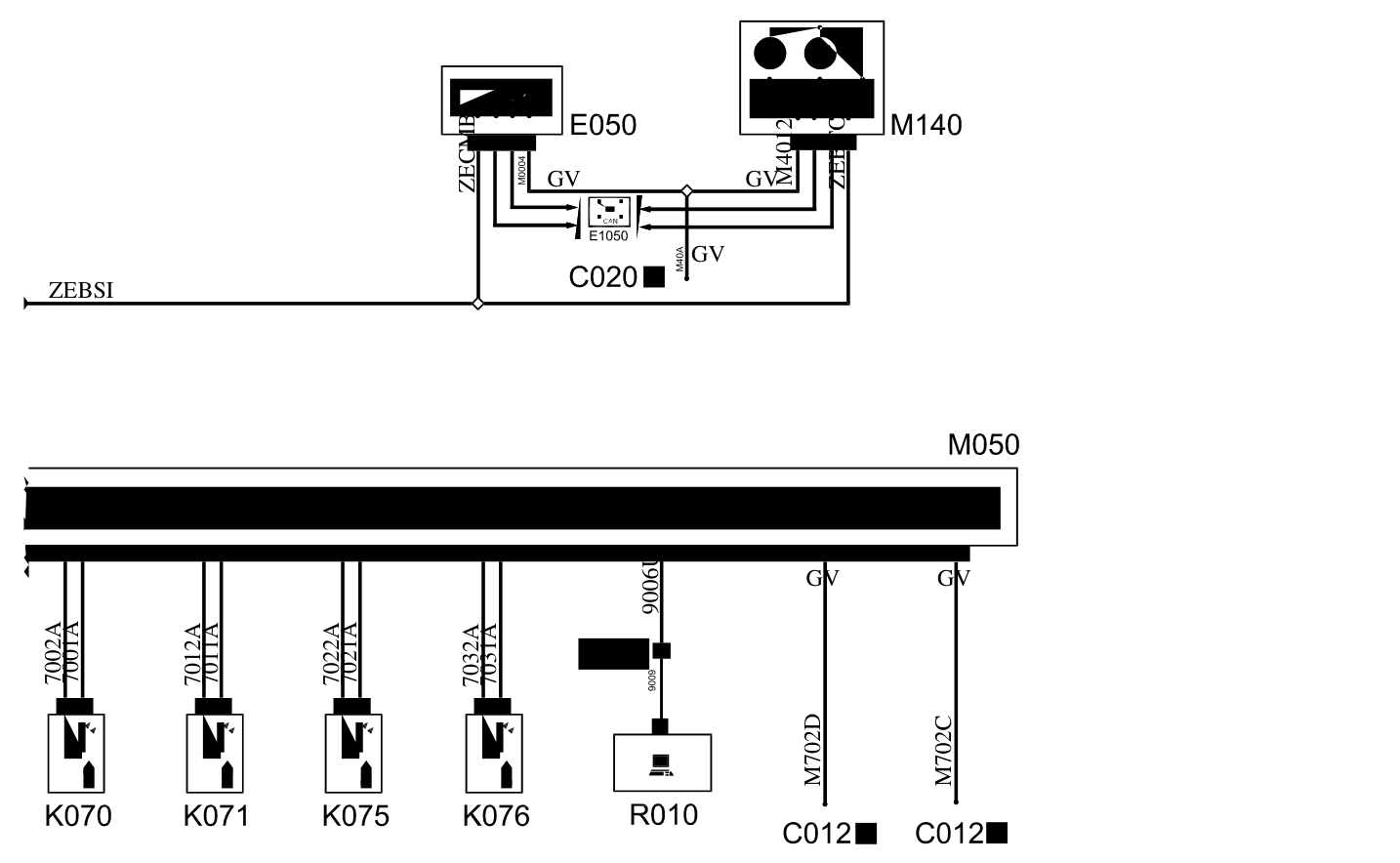

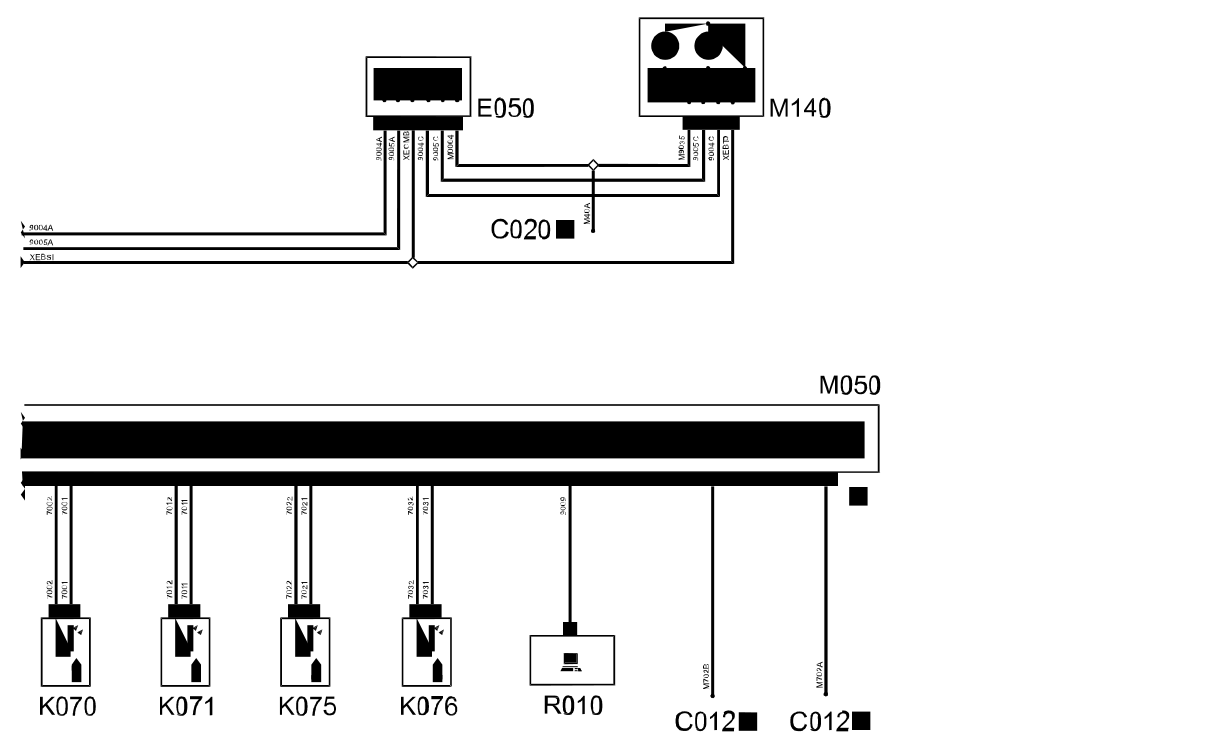

Wiring Diagram
Components
| Component code | Description | Reference to the assembly |
|---|---|---|
| See B001 ENGINE COMPARTMENT JUNCTION UNIT | Engine compartment junction unit | 5505A |
| See C010 LEFT FRONT EARTH | Left front earth | |
| See C011 RIGHT FRONT EARTH | Right front earth | |
| See C012 ABS FRONT EARTH | ABS front earth | |
| See C020 PASSENGER SIDE DASHBOARD EARTH | Passenger dashboard earth | |
| See D001 FRONT/DASHBOARD COUPLING | Front/dashboard coupling | |
| See E050 INSTRUMENT PANEL(FACIA) | Instrument panel | 5560B |
| See H001 Ignition switch | Ignition switch | 5520A |
| See I030 BRAKE PEDAL SWITCH(FRONT) | Brake pedal switch | 5550D |
| See K020 LEFT BRAKE PAD WEAR SENSOR (SWITCH) | Left brake pad wear sensor (switch) | 3310A |
| See K021 RIGHT BRAKE PAD WEAR SENSOR (SWITCH) | Right brake pad wear sensor (switch) | 3310A |
| See K025 BRAKE FLUID LEVEL SENSOR (SWITCH) | Brake fluid level sensor (switch) | |
| See K070 LEFT FRONT WHEEL SENSOR FOR ABS | Left front wheel sensor for ABS | 3340A |
| See K071 RIGHT FRONT WHEEL SENSOR FOR ABS | Right front wheel sensor for ABS | 3340A |
| See K075 LEFT REAR WHEEL SENSOR FOR ABS | Left rear wheel sensor for ABS | 3340A |
| See K076 RIGHT REAR WHEEL SENSOR FOR ABS | Right rear wheel sensor for ABS | 3340A |
| See M001 BODY COMPUTER | Body computer | 5505A |
| See M010 ENGINE MANAGEMENT CONTROL UNIT | Engine management control unit | 1060G |
| See M050 ABS CONTROL UNIT | ABS control unit | 3340A |
| See M140 WARNING LIGHTS AND MILOMETER CONTROL UNIT (NSO)(FACIA) | Warning lights and milometer control unit (NSO) | |
| See descriptions R010 MULTIPLE DIAGNOSTIC COUPLING | Multiple diagnostic coupling |
Components
| Component code | Description | Reference to the assembly |
|---|---|---|
| A001 | BATTERY | |
| B001 | ENGINE COMPARTMENT JUNCTION UNIT | Op. 5505A MULTI-FUNCTION COMPONENTS |
| B005 | MAXI FUSE BOX | |
| B098 | ADDITIONAL FUSE BOX | |
| C010 | LEFT FRONT EARTH | |
| C011 | RIGHT FRONT EARTH | |
| C012 | ABS FRONT EARTH | |
| C020 | PASSENGER SIDE DASHBOARD EARTH | |
| D001 | FRONT/DASHBOARD COUPLING | |
| D006 | FRONT/REAR COUPLING | |
| E050 | INSTRUMENT PANEL | Op. 5560B ANALOGUE CONTROL PANEL |
| H001 | Ignition switch | Op. 5520A IGNITION SWITCH |
| I030 | BRAKE PEDAL SWITCH | Op. 5550D BRAKE AND REVERSING LIGHTS |
| I031 | CLUTCH PEDAL SWITCH | |
| I035 | Safety switch on brake pedal for cruise control | |
| K020 | LEFT BRAKE PAD WEAR SENSOR (SWITCH) | Op. 3310A FRONT DISC BRAKES |
| K021 | RIGHT BRAKE PAD WEAR SENSOR (SWITCH) | Op. 3310A FRONT DISC BRAKES |
| K025 | BRAKE FLUID LEVEL SENSOR (SWITCH) | |
| K070 | LEFT FRONT WHEEL SENSOR FOR ABS | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| K071 | RIGHT FRONT WHEEL SENSOR FOR ABS | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| K075 | LEFT REAR WHEEL SENSOR FOR ABS | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| K076 | RIGHT REAR WHEEL SENSOR FOR ABS | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| M001 | BODY COMPUTER | Op. 5505A MULTI-FUNCTION COMPONENTS |
| M010 | ENGINE MANAGEMENT CONTROL UNIT | Op. 1060G DIESEL INJECTION PRESSURE PUMP ELECTRONIC CONTROL |
| M050 | ABS CONTROL UNIT | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| M140 | WARNING LIGHTS AND MILOMETER CONTROL UNIT (NSO) | |
| R010 | MULTIPLE DIAGNOSTIC COUPLING |
