ALARM WIRING DIAGRAM

Wiring Diagram

Components

Component code	Description	Reference to the assembly
See C011 RIGHT FRONT EARTH	Right front earth
See C020 PASSENGER SIDE DASHBOARD EARTH	Passenger dashboard earth
See C030 LEFT REAR EARTH	Left rear earth
See C031 RIGHT REAR EARTH	Right rear earth
See D001 FRONT/DASHBOARD COUPLING	Front/dashboard coupling
See D030 LEFT FRONT DOOR COUPLING(REAR)	Left front door coupling
See D031 RIGHT FRONT DOOR COUPLING(REAR)	Right front door coupling
See D085 REAR/TAILGATE COUPLING(REAR)	Rear/tailgate coupling
See E040 ALARM LED	Alarm LED
See I010 BONNET RELEASE SWITCH	Bonnet release switch
See I011 BOOT RELEASE SWITCH(TAILGATE)	Boot release switch	7015B
See I018 SWITCH ON LEFT REAR DOOR(REAR)	Switch on left rear door
See I019 SWITCH ON RIGHT REAR DOOR	Switch on right rear door
See I130 VOLUMETRIC SENSORS DISABLING SWITCH(FACIA)	Volumetric sensors disabling switch
See K060 VOLUMETRIC SENSOR FOR LEFT ALARM(BRIDGE ON ROOF)	Volumetric sensor for left alarm
See K061 VOLUMETRIC SENSOR FOR RIGHT ALARM	Volumetric sensor for right alarm
See M001 BODY COMPUTER	Body computer	5505A
See M030 ALARM CONTROL UNIT	Alarm control unit
See N050 LEFT FRONT DOOR LOCK GEARED MOTOR(LEFT FRONT DOOR)	Left front door lock geared motor	7005N
See N051 RIGHT FRONT DOOR LOCK GEARED MOTOR(RIGHT FRONT DOOR)	Right front door lock geared motor	7005N
See N057 BOOT LOCK GEARED MOTOR(TAILGATE)	Boot lock geared motor
See P090 ALARM SIREN	Alarm siren

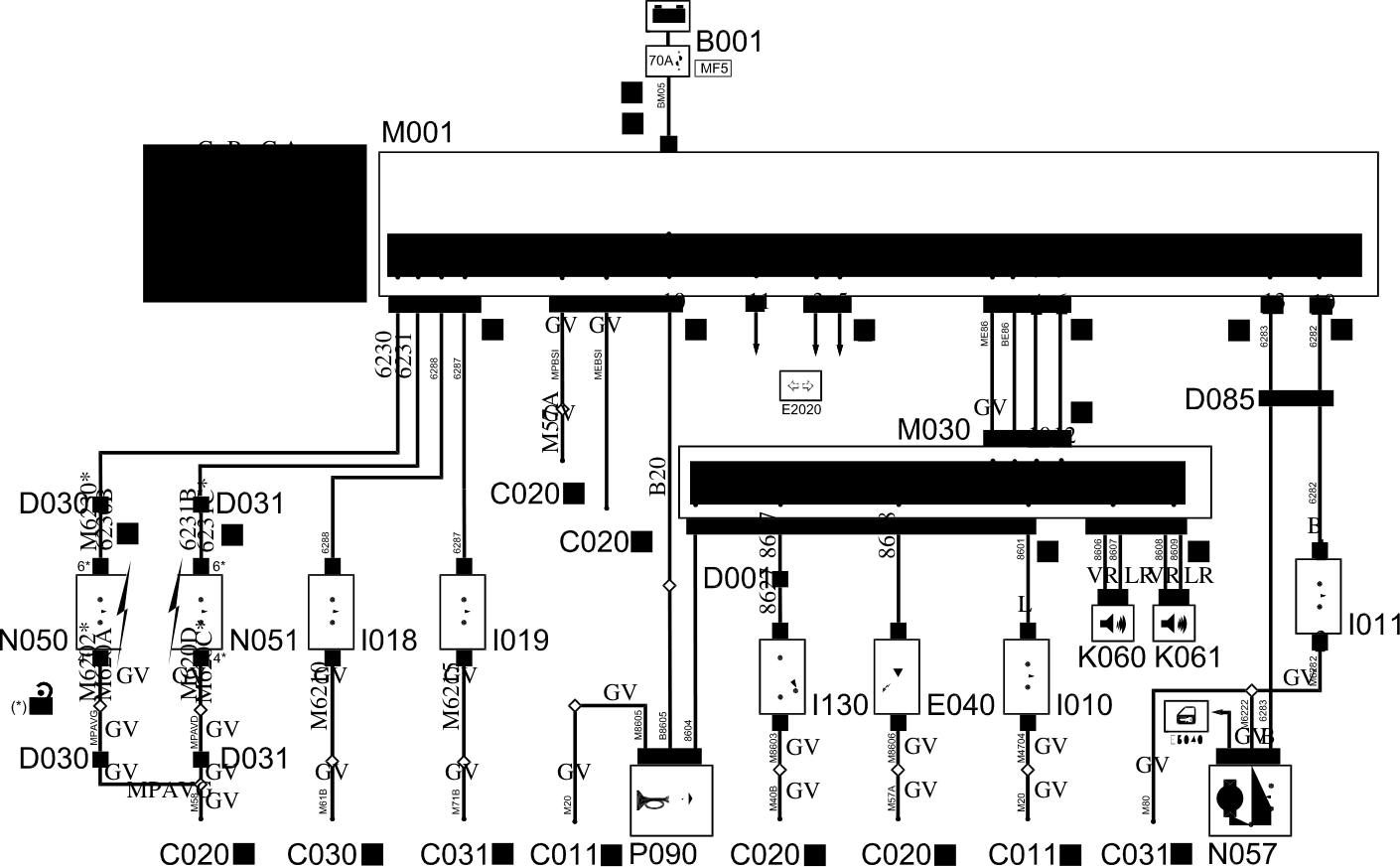

2.0 16V JTD, 2.2 16V JTD · MY 2005

Components

Component code	Description	Reference to the assembly
B001	ENGINE COMPARTMENT JUNCTION UNIT	Op. 5,505A MULTIFUNCTION COMPONENTS
C011	RIGHT FRONT EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
C031	RIGHT REAR EARTH
D001	FRONT/DASHBOARD COUPLING
D030	DRIVER''S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D085	REAR/TAILGATE COUPLING
E040	ALARM LED
I010	BONNET RELEASE SWITCH
I011	BOOT RELEASE SWITCH	Op. 7015B TAILGATE CLOSING/OPENING DEVICES
I018	SWITCH ON LEFT REAR DOOR
I019	SWITCH ON RIGHT REAR DOOR
I130	VOLUMETRIC SENSORS DISABLING SWITCH
K060	VOLUMETRIC SENSOR FOR LEFT ALARM
K061	VOLUMETRIC SENSOR FOR RIGHT ALARM
M001	BODY COMPUTER	Op. 5,505A MULTIFUNCTION COMPONENTS
M030	ALARM CONTROL UNIT
N050	LEFT FRONT DOOR LOCK GEARED MOTOR
N051	RIGHT FRONT DOOR LOCK GEARED MOTOR	Op. 7005N FRONT DOOR CENTRAL LOCKING SYSTEM
N057	BOOT LOCK GEARED MOTOR
