Vehicle electronic systems › Airbag wiring diagram

Wiring diagrams and electrical functionsAirbag wiring diagram

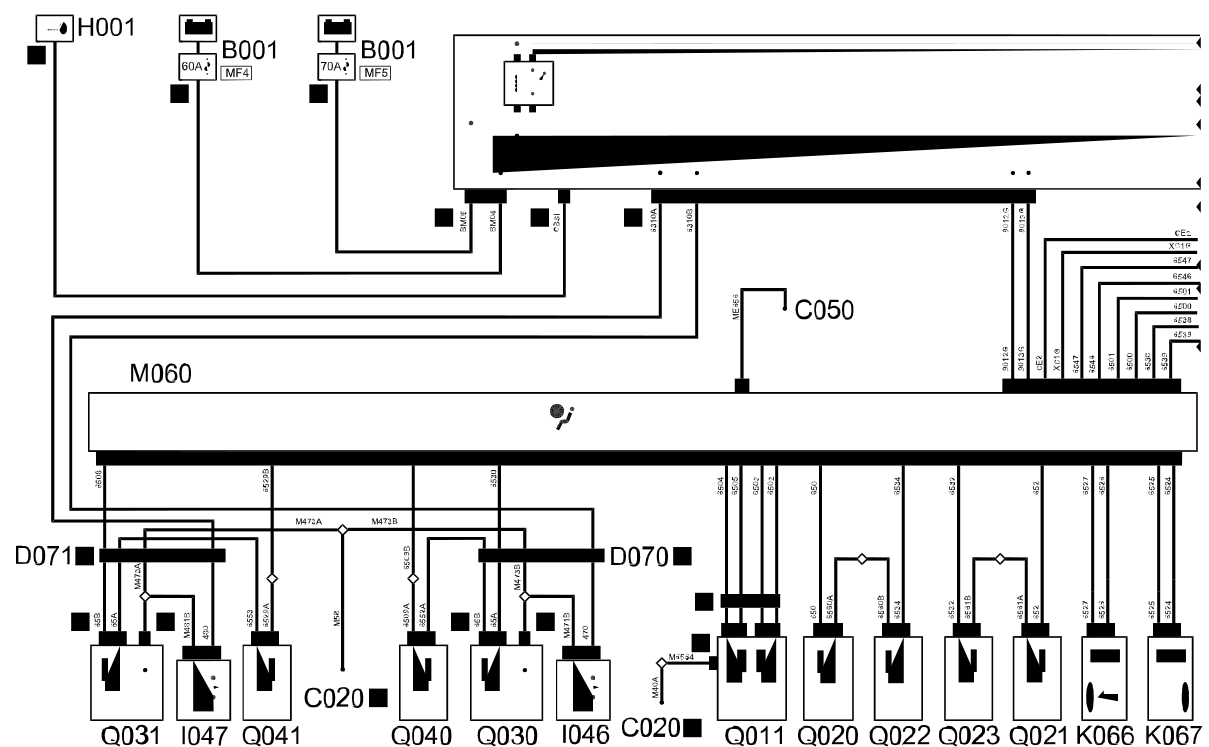

AIRBAG WIRING DIAGRAM

Wiring Diagram

Components

Component code	Description	Reference to the assembly
See C015 DRIVER'S DASHBOARD EARTH	Driver''s dashboard earth
See C020 PASSENGER SIDE DASHBOARD EARTH	Passenger dashboard earth
See C050 AIR BAG SYSTEM EARTH(REAR)	Air Bag system earth
See D020 DASHBOARD/REAR COUPLING	Dashboard/rear coupling
See D070 DRIVER'S SEAT COUPLING	Driver''s seat coupling
See D071 PASSENGER SEAT COUPLING	Passenger seat coupling
See E050 INSTRUMENT PANEL(FACIA)	Instrument panel	5560B
See H075 PASSENGER AIR BAG DISABLING SWITCH	Passenger Air Bag disabling switch	5580C
See I046 DRIVER'S SEAT BELT SWITCH	Driver''s seat belt switch
See I047 PASSENGER SEAT BELT SWITCH(RIGHT SEAT)	Passenger seat belt switch
See K066 SENSOR FOR DRIVER'S SIDE BAG	Sensor for front driver''s air bag	5580C
See K067 SENSOR FOR PASSENGER SIDE BAG	Sensor for front passenger side air bag	5580C
See M001 BODY COMPUTER	Body computer	5505A
See M060 AIR BAG CONTROL UNIT	Air Bag control unit	5580C
See M093 STEERING WHEEL NODE CONTROL UNIT (NVO)	Steering wheel node control unit (NVO)	5550A
See M140 WARNING LIGHTS AND MILOMETER CONTROL UNIT (NSO)(FACIA)	Warning lights and milometer control unit (NSO)
See Q009 DRIVER'S AIR BAG	Driver''s Air Bag	5580C
See Q011 AIR BAG IN DASHBOARD (PASSENGER SIDE)	Air Bag in dashboard (passenger side)	5580C
See Q020 DRIVER'S FRONT SEAT BELT PRETENSIONER(REAR)	Driver''s front seat belt pretensioner	7065A
See Q021 PASSENGER FRONT SEAT BELT PRETENSIONER(REAR)	Passenger front seat belt pretensioner	7065A
See Q022 DRIVER'S SIDE REAR SEAT BELT PRETENSIONER(REAR)	Driver''s side rear seat belt pretensioner	7065B
See Q023 PASSENGER SIDE REAR SEAT BELT PRETENSIONER	Passenger side rear seat belt pretensioner	7065B
See Q030 DRIVER'S SIDEBAG	Driver''s sidebag	5580C
See Q031 PASSENGER SIDEBAG	Passenger sidebag	5580C
See Q040 DRIVER'S AIR BAG COVER MODULE(REAR)	Driver''s Air Bag cover module
See Q041 PASSENGER HEAD BAG	Passenger Air Bag cover module
