76
CHASSIS AND BODY
20
REPAIR

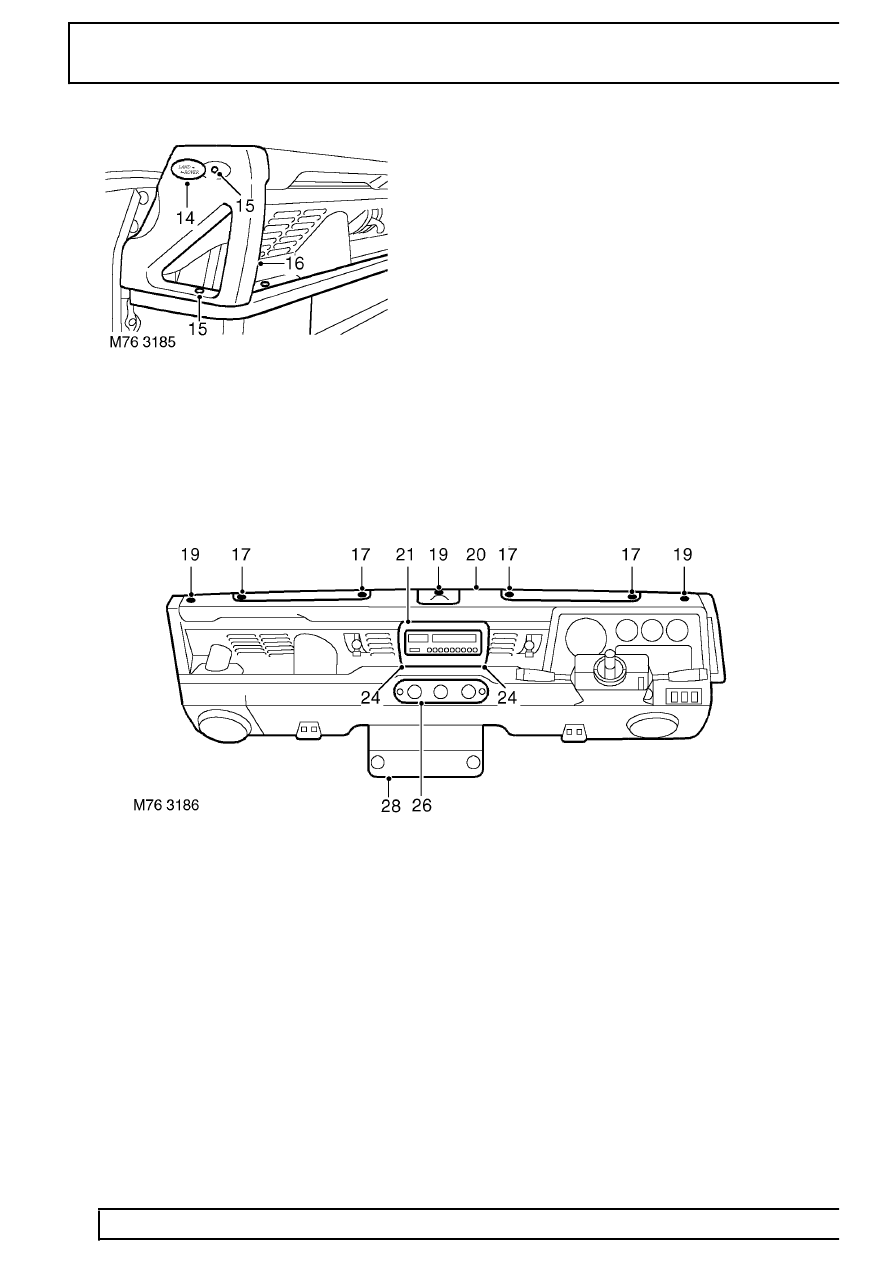

14. Carefully prise Land Rover decal from grab
handle.
15. Remove 2 screws securing grab handle to crash
pad and lower fascia panel.
16. Remove grab handle.
17. Remove 4 screws securing demister vents to
crash pad.
18. Remove both demister vents.
19. Remove 3 screws securing crash pad to
bulkhead.
20. Remove crash pad.
21. Release radio from fascia.
22. Disconnect 2 multiplugs and aerial from radio.
23. Remove radio.
24. Remove 2 trim studs securing radio housing to
fascia.
25. Remove radio housing.
26. Remove auxilliary switch panel. See this
Section.
27. Remove auxilliary switch panel cover.
28. Remove interior fuse box cover.
