TD5 Defender
CHASSIS AND BODY
5
REPAIR

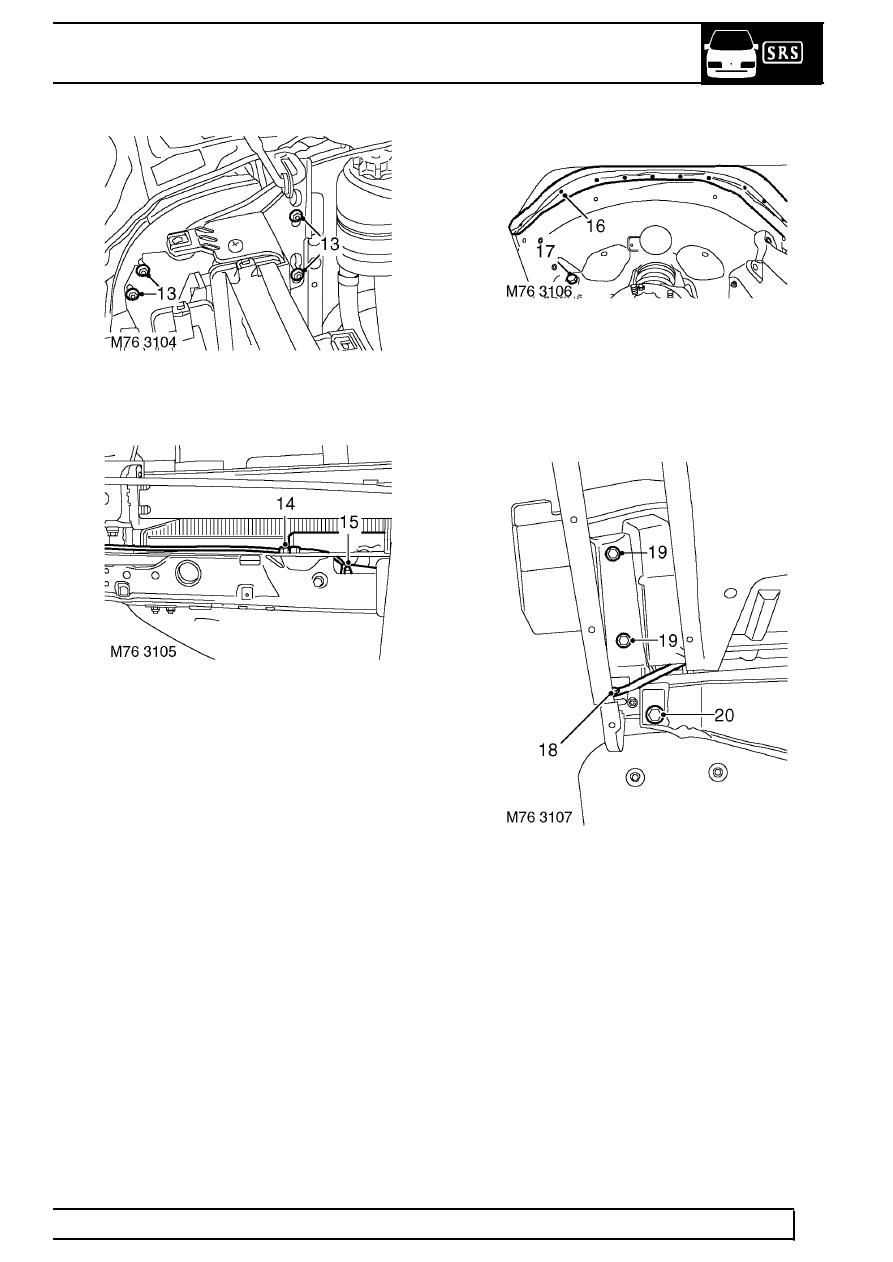

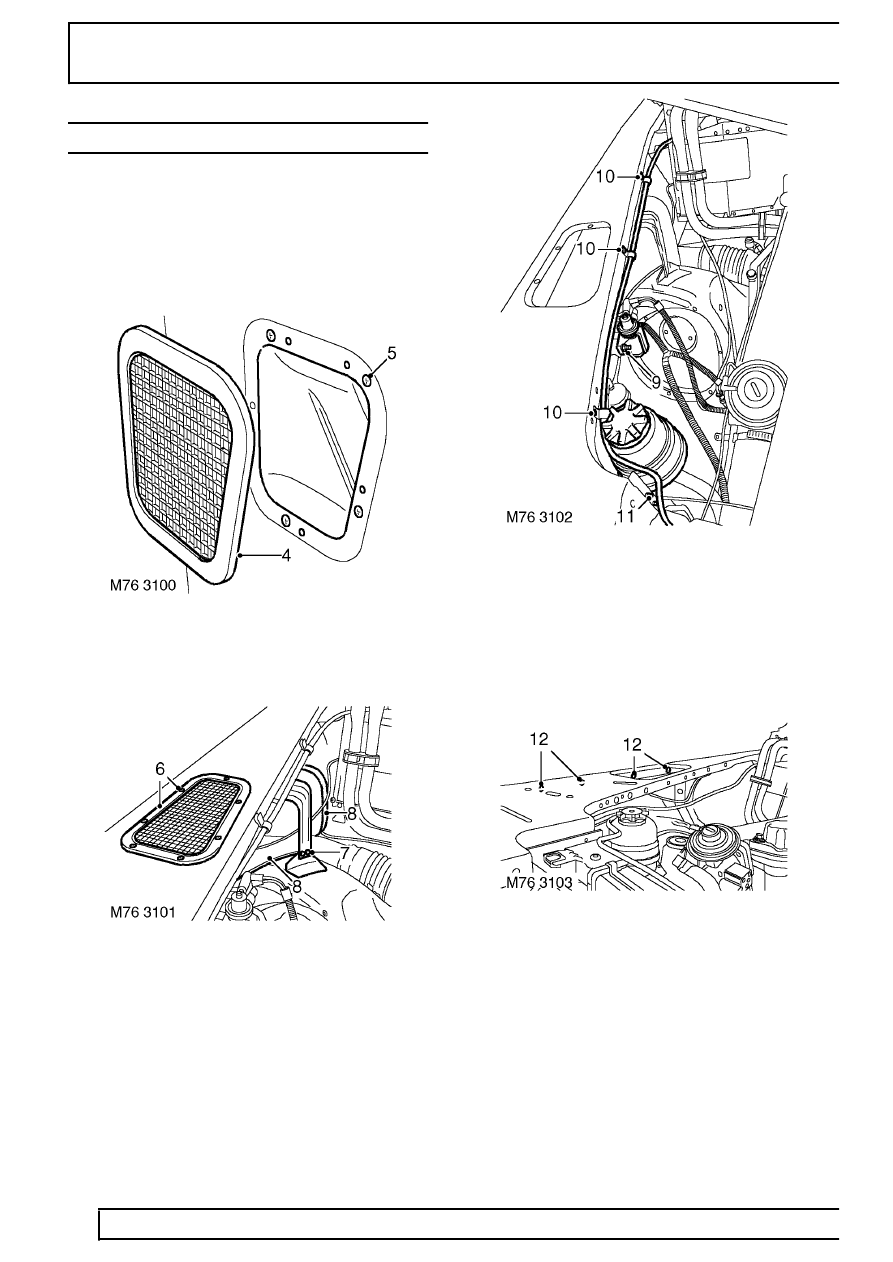

13. Remove 4 bolts securing radiator mounting
bracket to wing.
14. Loosen screw and release bonnet lock inner
cable from bonnet lock.
15. Release bonnet lock outer cable from from
bonnet lock.
16. Push centre pins from studs securing wheel arch
extension to wing, remove studs and remove
wheel arch extension.
17. Remove bolt securing inner and outer wing to
chassis.
18. Remove nut and bolt securing support stay to
wing.
19. Remove 4 bolts securing wing to ’A’ post.
20. Remove bolt securing wing to bulkhead.
