ENGINE
5
REPAIR

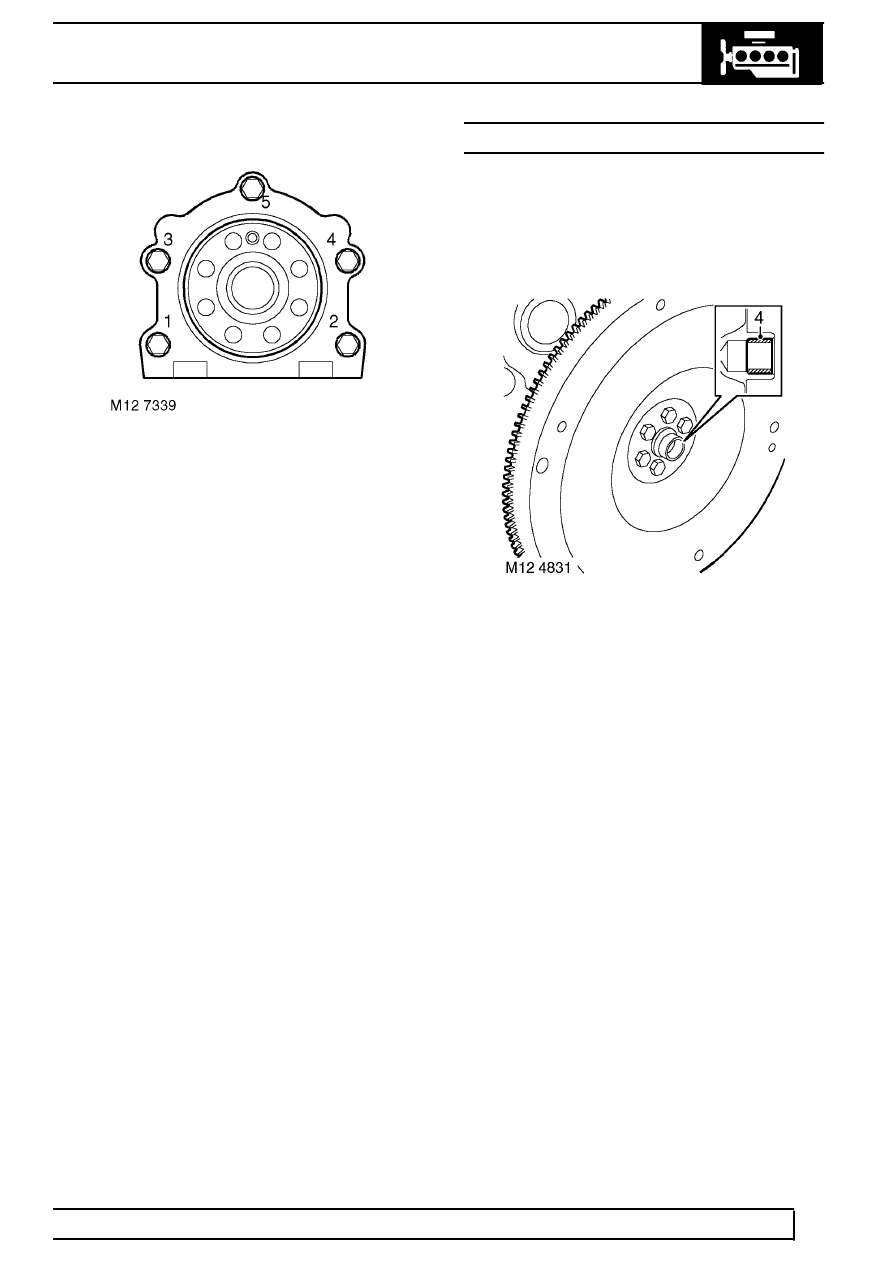

7. Fit oil seal housing bolts and using sequence
shown, tighten to 9 Nm (7 lbf.ft).
8. Fit sump gasket. See this Section.
9. Fit flywheel. See this Section.
BEARING - SPIGOT - CRANKSHAFT
Service repair no - 12.21.45
Remove
1. Remove clutch assembly. See CLUTCH,
Repair.
2. Tap a thread in spigot bush to accommodate a
suitable impulse extractor.
3. Fit extractor to spigot bush.
4. Remove spigot bush from crankshaft.
Refit
5. Clean spigot bush and mating face in rear of
crankshaft.
6. Fit new spigot bush to crankshaft using a
suitable drift.
7. Fit clutch assembly. See CLUTCH, Repair.
