TD5 Defender
ENGINE
21
REPAIR
Refit
11. Fit mounting and mounting bracket.
12. Fit mounting bracket to cylinder block bolts and
tighten to 48 Nm (35 lbf.ft) .
13. Fit nuts securing mounting to chassis and tighten
to 85 Nm (63 lbf. ft).
14. Fit mounting to mounting bracket nut and tighten
to 85 Nm (63 lbf.ft) .
15. Remove engine support chains.
16. Position fuel cooler. Apply Loctite 242 to bolts
and tighten to 18 Nm (13 lbf.ft).
17. Remove stand(s) and lower vehicle.
18. Reconnect battery negative lead.
19. Fit engine acoustic cover. See this Section.

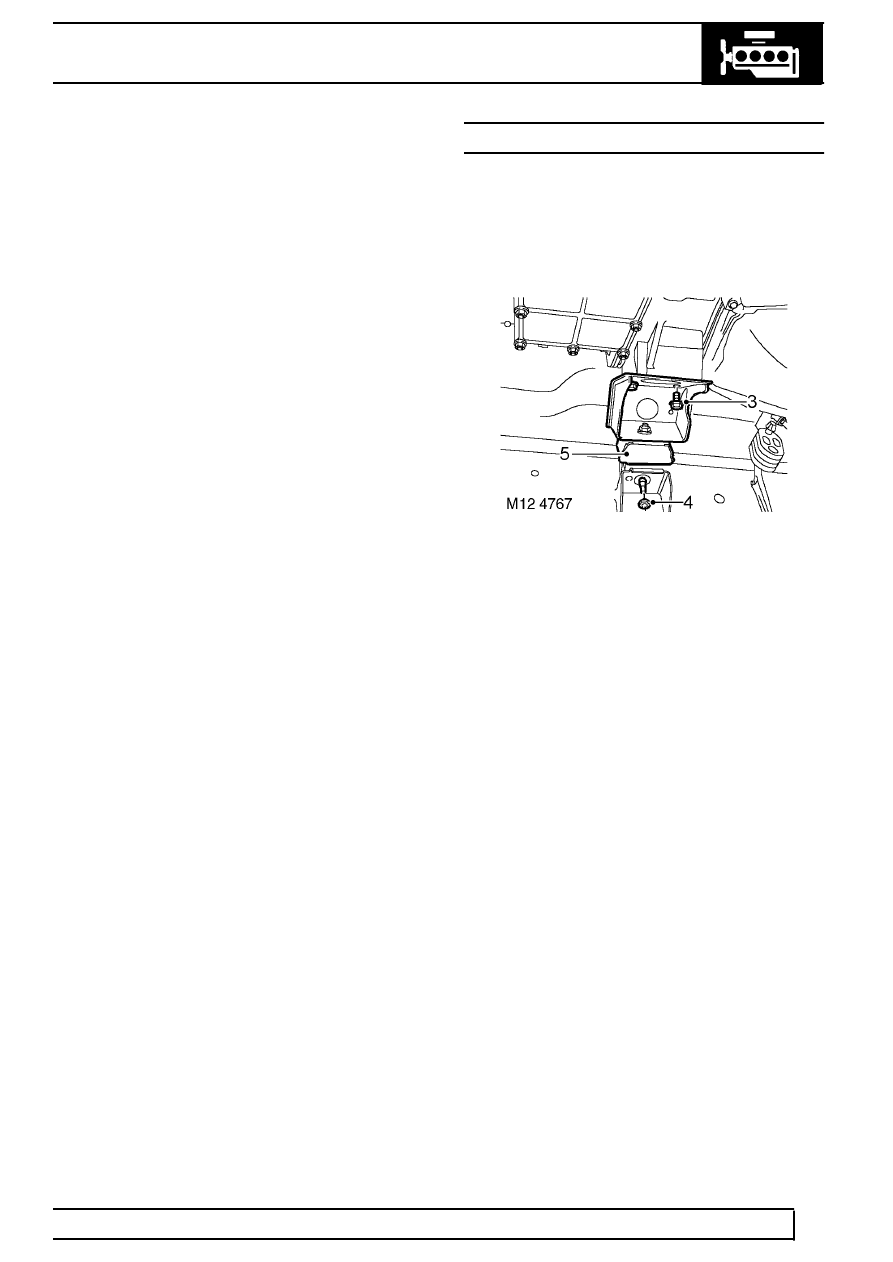

MOUNTING - GEARBOX - REAR - LH
Service repair no - 12.45.07
Remove
1. Raise vehicle on ramp.
2. Position jack to support gearbox.
3. Remove 4 bolts securing mounting bracket to
transfer gearbox.
4. Remove 2 nuts, remove mounting and mounting
bracket.
5. Remove heat shield from mounting.
Refit
6. Clean mounting and mating faces.
7. Position heat shield to mounting.
8. Position mounting and mounting bracket and
tighten nuts to 48 Nm (35 lbf.ft) and bolts to 85
Nm (63 lbf. ft).
9. Lower support jack.
10. Lower vehicle.
