Fuse details – circuit diagram

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Fuse details – circuit diagram

Fuse detailsFuse details – circuit diagram

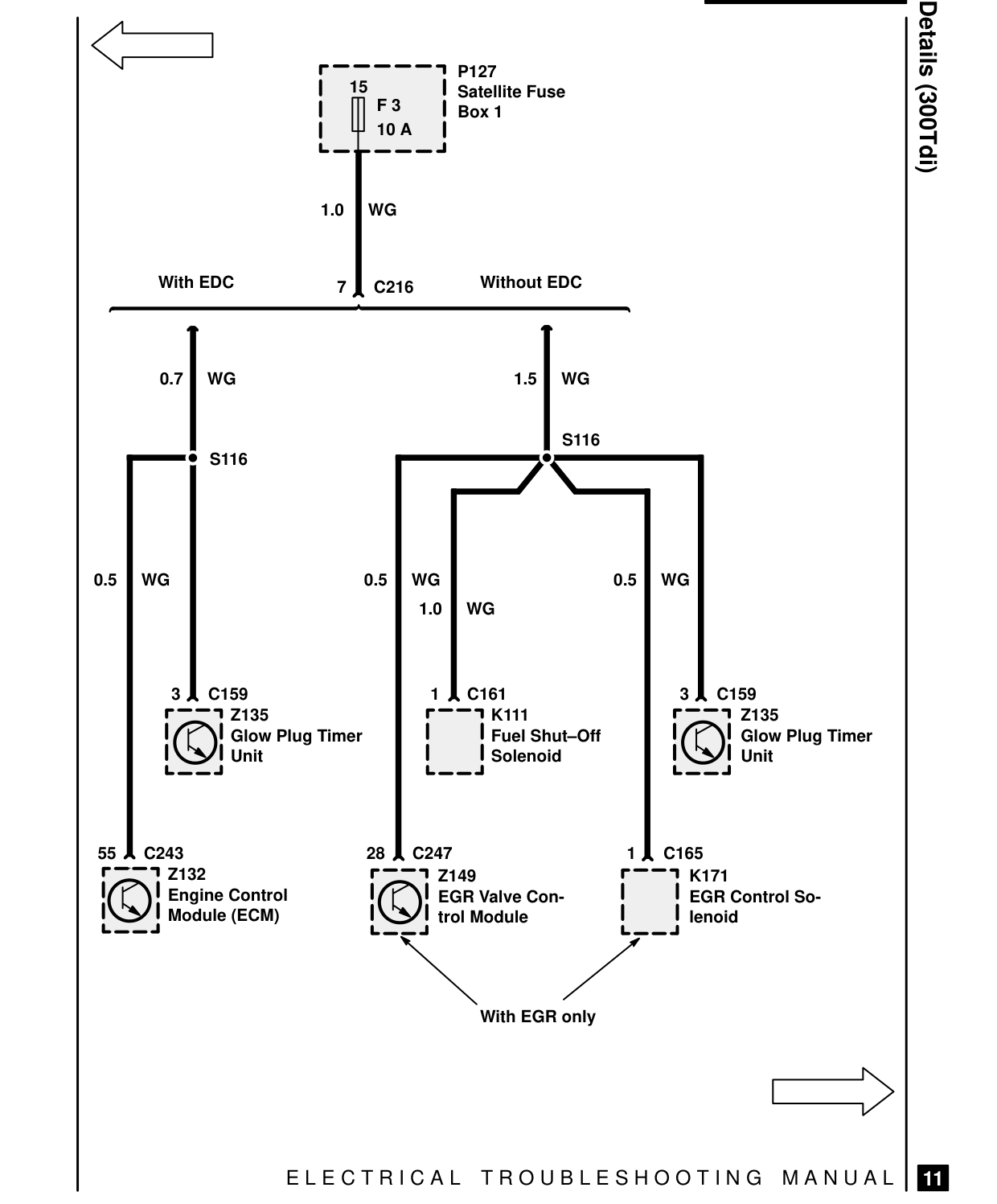

FUSE DETAILS – CIRCUIT DIAGRAM

P127 15 Satellite Fuse F 3 Box 1 10 A

1.0 WG

With EDC 7 C216

0.7 WG

S116

0.5 WG 0.5 WG 1.0 WG

3 C159 1 C161 Z135 Glow Plug Timer Unit

28 C247 55 C243 Z132 Z149 Engine Control EGR Valve Con- Module (ECM) trol Module

E L E C T R I C A L

Fuse Details (300Tdi)

Without EDC

1.5 WG

S116

0.5 WG

3 C159 K111 Z135 Fuel Shut-Off Glow Plug Timer Solenoid Unit

1 C165 K171 EGR Control So- lenoid

With EGR only

T R O U B L E S H O O T I N G M A N U A L

11

39 General
