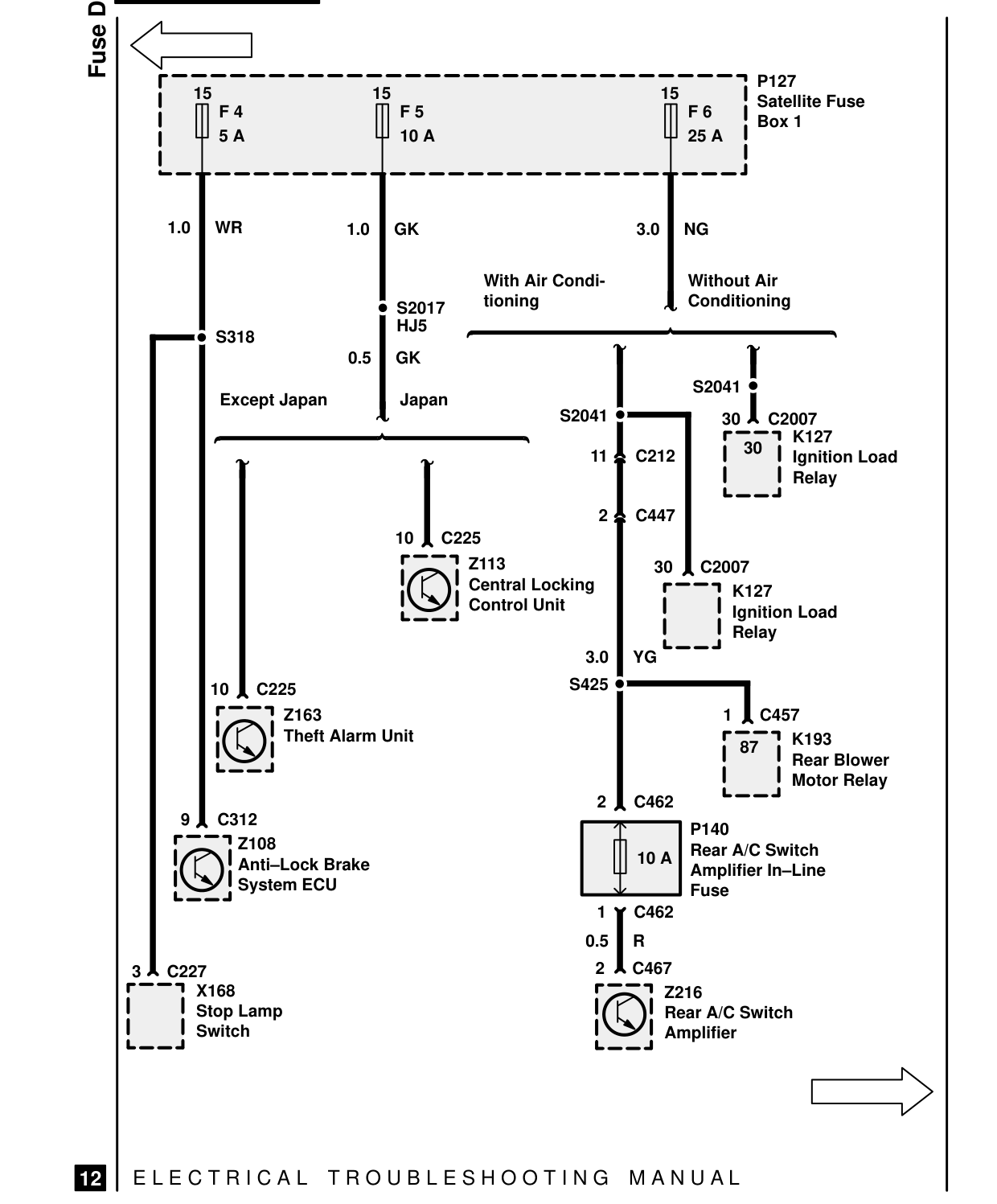

Fuse details – circuit diagram

FUSE DETAILS – CIRCUIT DIAGRAM

Fuse Details 15 15 F 4 F 5 5 A 10 A

1.0 WR 1.0 GK

S2017 HJ5 S318 0.5 GK

Except Japan Japan

10 C225

10 C225 Z163 Theft Alarm Unit

9 C312 Z108 Anti-Lock Brake System ECU

3 C227 X168 Stop Lamp Switch

E L E C T R I C A L T R O U B L E S H O O T I N G

12

P127 15 Satellite Fuse F 6 Box 1 25 A

3.0 NG

With Air Condi- Without Air tioning Conditioning

S2041 S2041 30 C2007 K127 30 11 C212 Ignition Load Relay

2 C447

Z113 30 C2007 Central Locking K127 Control Unit Ignition Load Relay 3.0 YG S425 1 C457 K193 87 Rear Blower Motor Relay 2 C462 P140 Rear A/C Switch 10 A Amplifier In-Line Fuse 1 C462 0.5 R 2 C467 Z216 Rear A/C Switch Amplifier

M A N U A L
