Fuse details – circuit diagram

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Fuse details – circuit diagram

Fuse detailsFuse details – circuit diagram

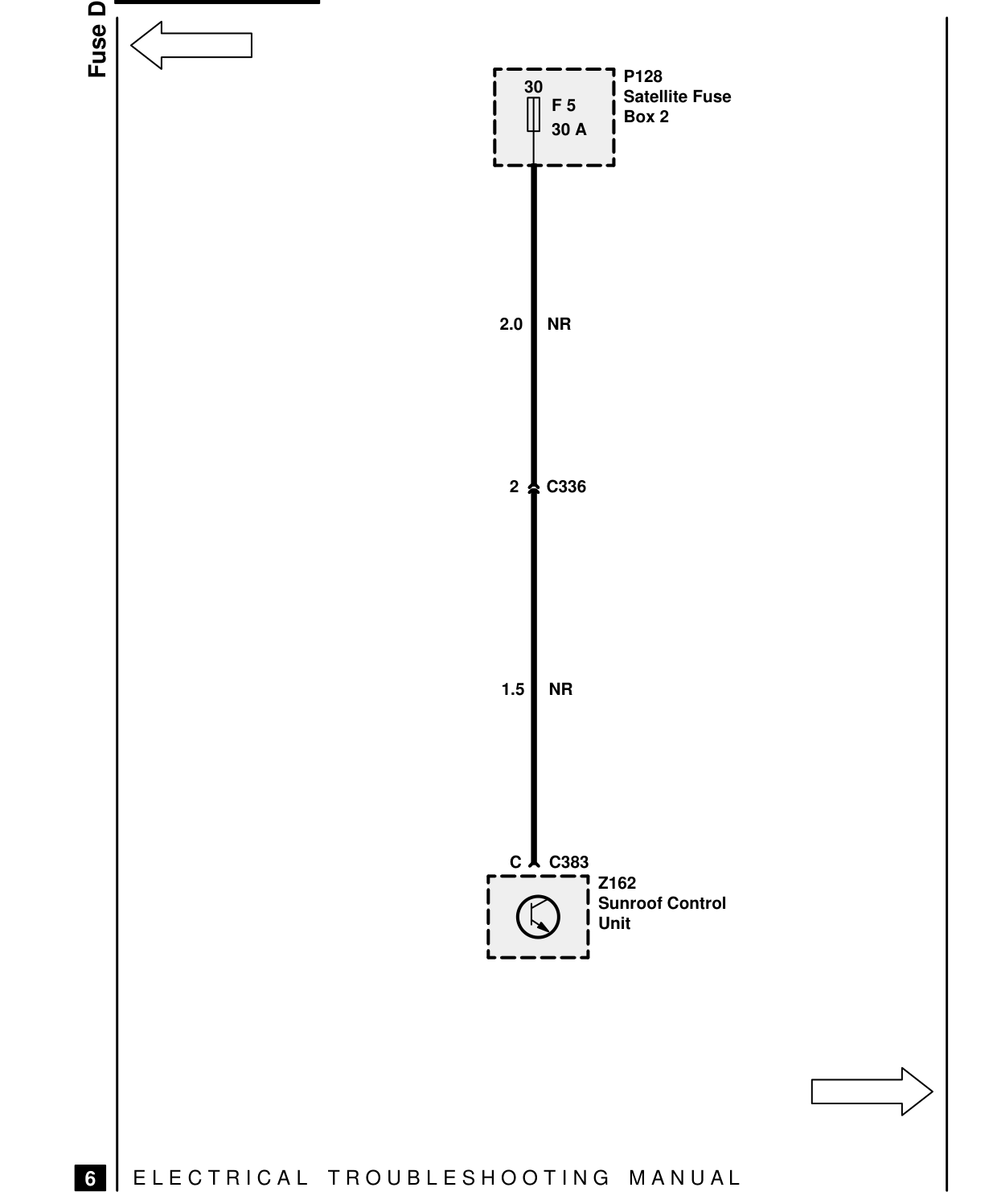

FUSE DETAILS – CIRCUIT DIAGRAM

Fuse Details

E L E C T R I C A L T R O U B L E S H O O T I N G

6

P128 30 Satellite Fuse F 5 Box 2 30 A

2.0 NR

2 C336

1.5 NR

C C383 Z162 Sunroof Control Unit

M A N U A L

39 General
