Fuse details – circuit diagram

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Fuse details – circuit diagram

Fuse detailsFuse details – circuit diagram

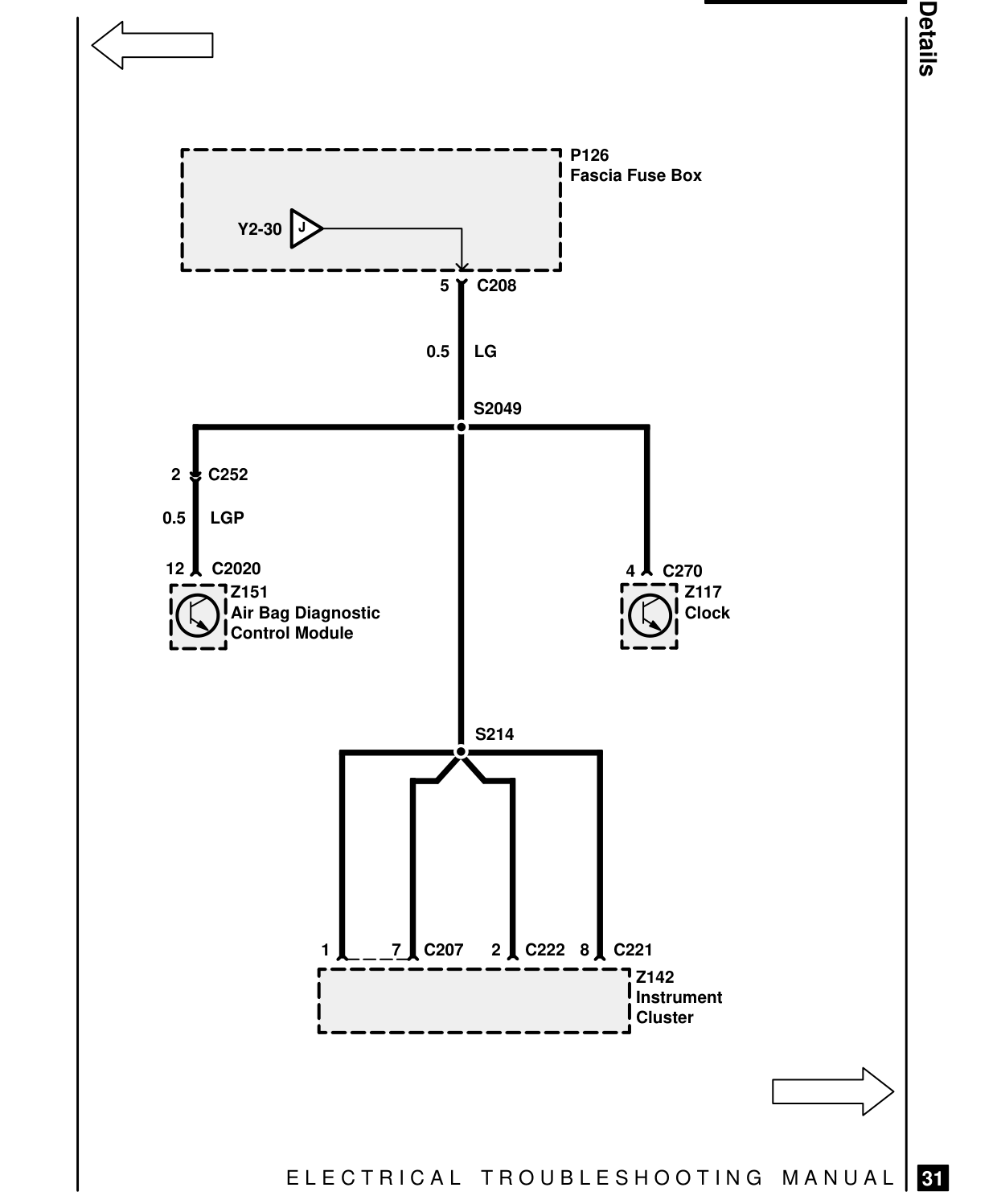

FUSE DETAILS – CIRCUIT DIAGRAM

Y2-30 J

5

0.5

2 C252

0.5 LGP

12 C2020 Z151 Air Bag Diagnostic Control Module

1 7 C207

E L E C T R I C A L

Fuse Details

P126 Fascia Fuse Box

C208

LG

S2049

4 C270 Z117 Clock

S214

C221 2 8 C222 Z142 Instrument Cluster

T R O U B L E S H O O T I N G M A N U A L

31

39 General
