Fuse details – circuit diagram

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Fuse details – circuit diagram

Fuse detailsFuse details – circuit diagram

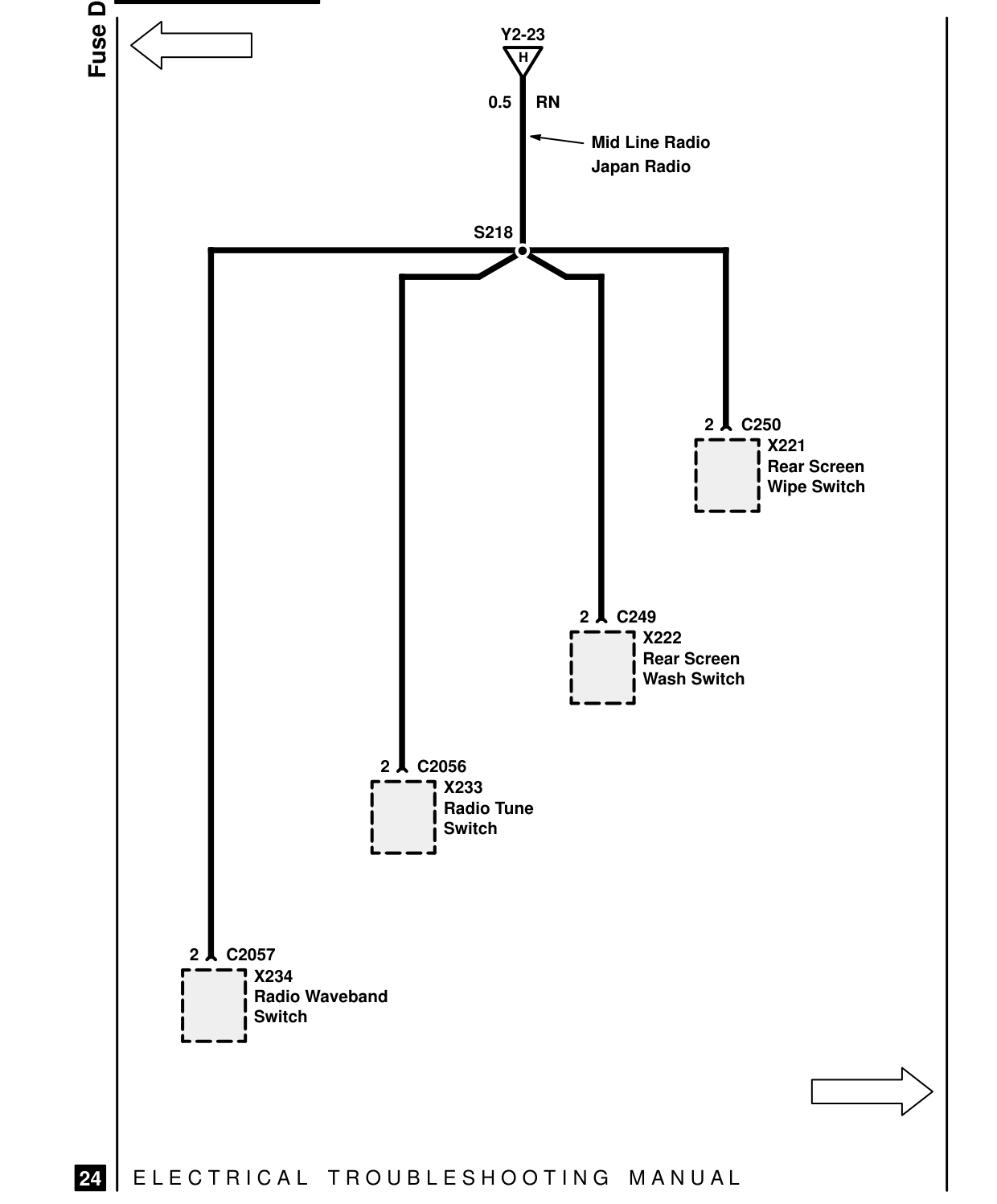

FUSE DETAILS – CIRCUIT DIAGRAM

Fuse Details

2 C2056

2 C2057 X234 Radio Waveband Switch

E L E C T R I C A L T R O U B L E S H O O T I N G

24

Y2-23 H

0.5 RN

Mid Line Radio Japan Radio

S218

2 C250 X221 Rear Screen Wipe Switch

2 C249 X222 Rear Screen Wash Switch

X233 Radio Tune Switch

M A N U A L

39 General
