Fuse details – circuit diagram

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Fuse details – circuit diagram

Fuse detailsFuse details – circuit diagram

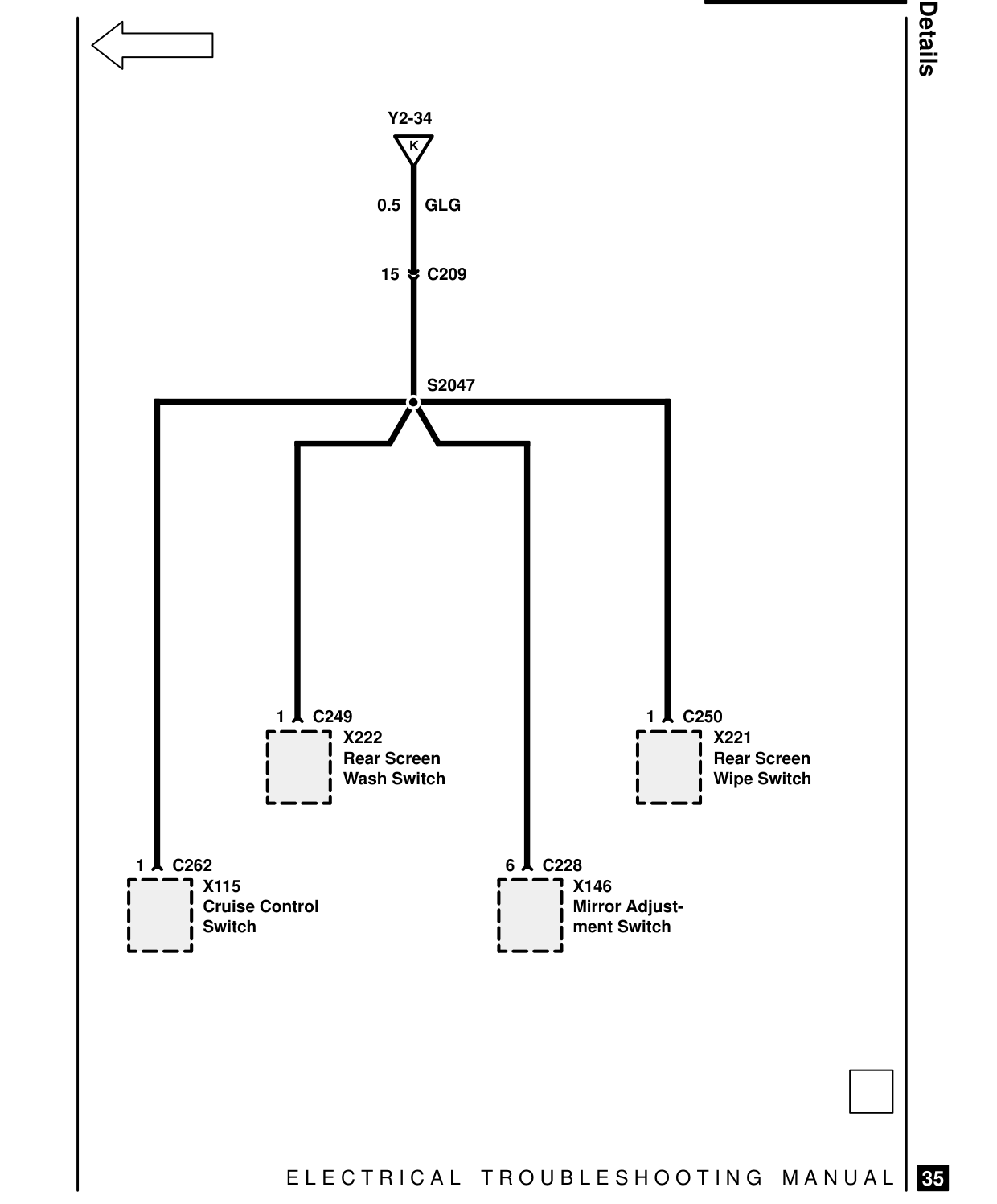

FUSE DETAILS – CIRCUIT DIAGRAM

Y2-34 K

0.5 GLG

15 C209

S2047

1 C249 X222 Rear Screen Wash Switch

1 C262 X115 Cruise Control Switch

E L E C T R I C A L

Fuse Details

1 C250 X221 Rear Screen Wipe Switch

6 C228 X146 Mirror Adjust- ment Switch

T R O U B L E S H O O T I N G M A N U A L

35

39 General
