Fuse details – circuit diagram

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Fuse details – circuit diagram

Fuse detailsFuse details – circuit diagram

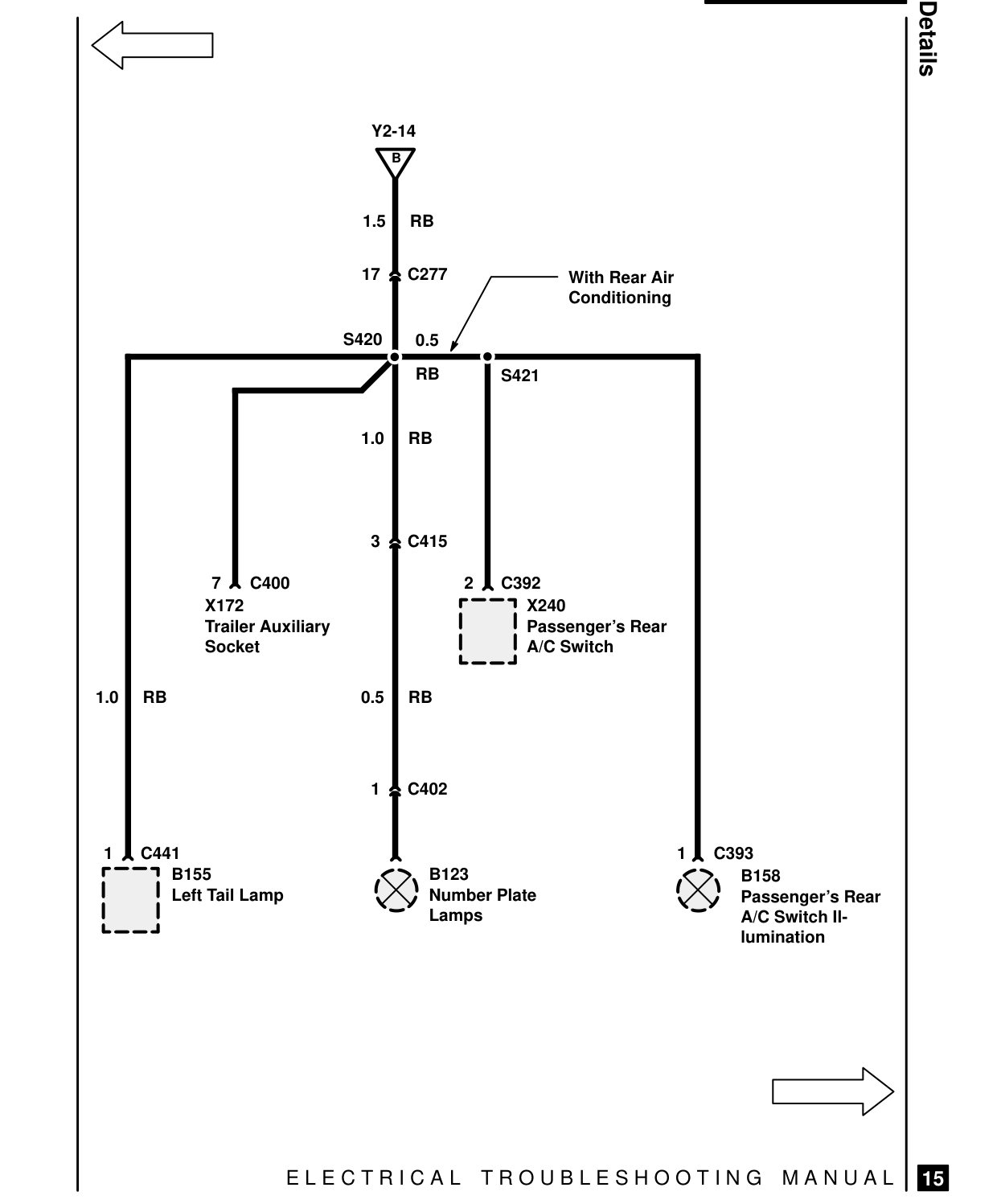

FUSE DETAILS – CIRCUIT DIAGRAM

Y2-14 B

1.5 RB

17 C277

S420 0.5

RB

1.0 RB

3 C415

7 C400 2 X172 Trailer Auxiliary Socket

1.0 RB 0.5 RB

1 C402

1 C441 B123 B155 Number Plate Left Tail Lamp Lamps

E L E C T R I C A L

Fuse Details

With Rear Air Conditioning

S421

C392 X240 Passenger’s Rear A/C Switch

1 C393 B158 Passenger’s Rear A/C Switch Il- lumination

T R O U B L E S H O O T I N G M A N U A L

15

39 General
