Fuse details – circuit diagram

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Fuse details – circuit diagram

Fuse detailsFuse details – circuit diagram

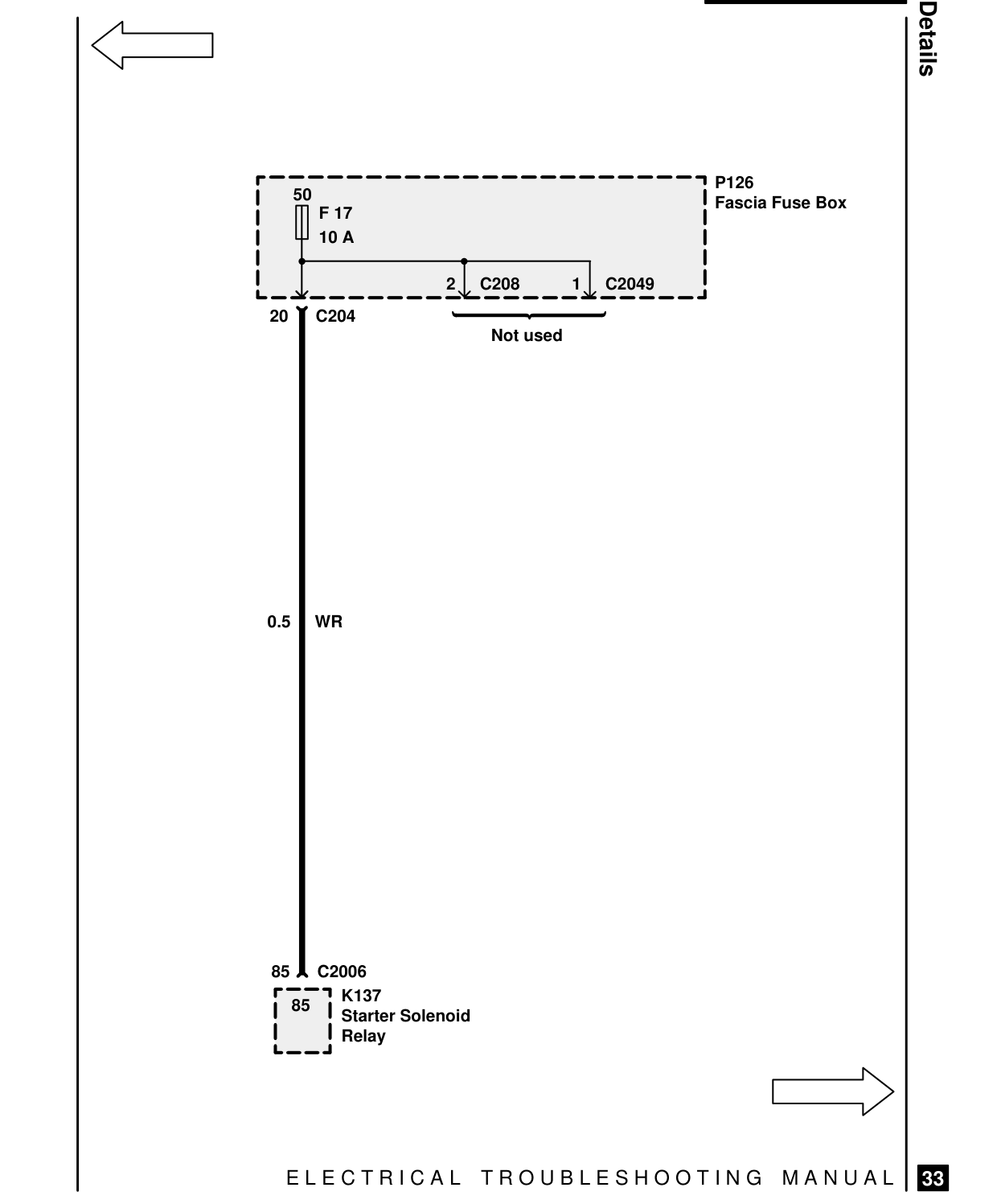

FUSE DETAILS – CIRCUIT DIAGRAM

50 F 17 10 A

2 20 C204

0.5 WR

85 C2006 K137 85 Starter Solenoid Relay

E L E C T R I C A L

Fuse Details

P126 Fascia Fuse Box

C208 1 C2049

Not used

T R O U B L E S H O O T I N G M A N U A L

33

39 General
