Fuse details – circuit diagram

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Fuse details – circuit diagram

Fuse detailsFuse details – circuit diagram

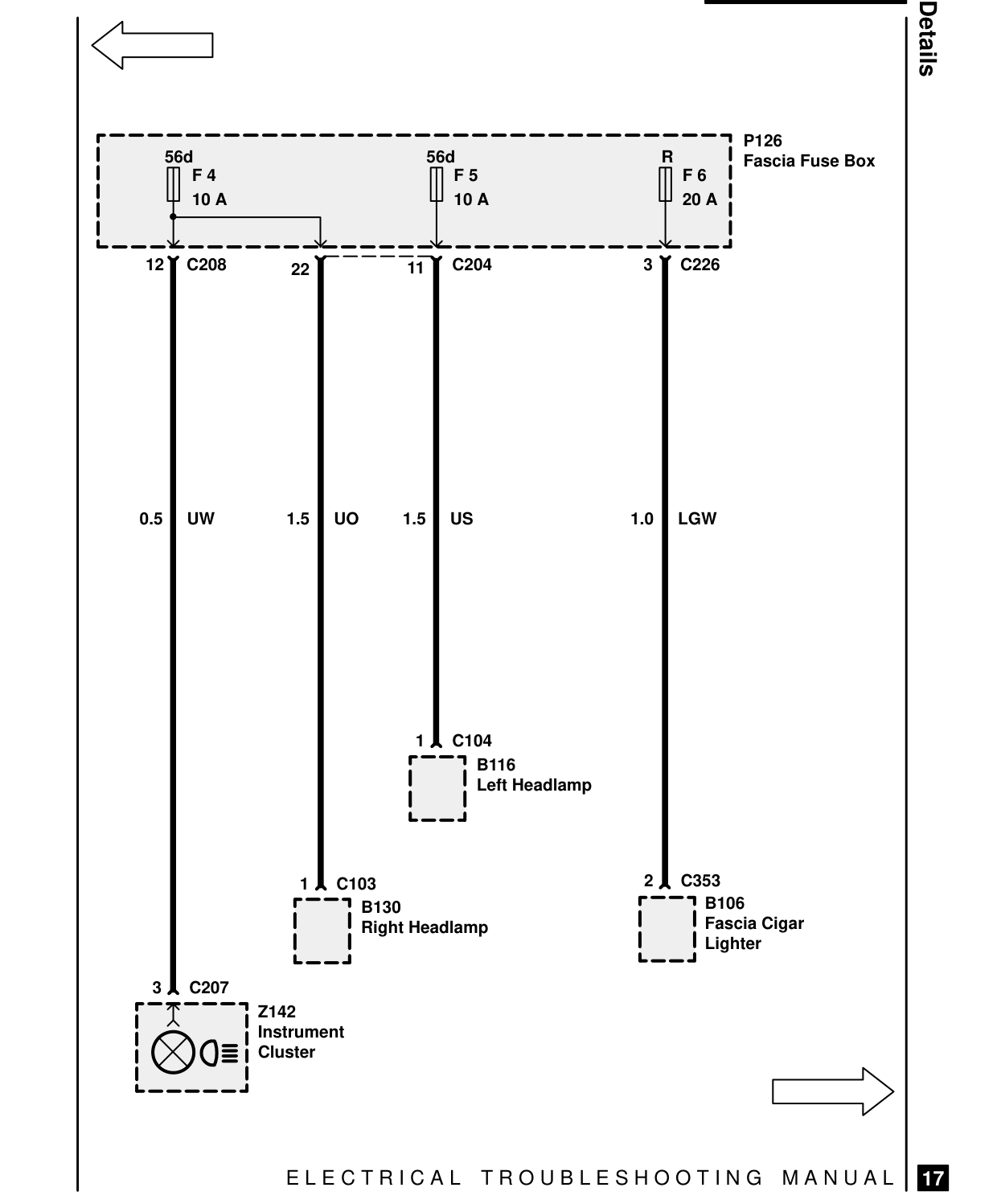

FUSE DETAILS – CIRCUIT DIAGRAM

56d 56d F 4 F 5 10 A 10 A

C204 12 C208 11 22

0.5 UW 1.5 UO 1.5 US

1 C104

1 C103 B130 Right Headlamp

3 C207 Z142 Instrument Cluster

E L E C T R I C A L

Fuse Details

P126 R Fascia Fuse Box F 6 20 A

3 C226

1.0 LGW

B116 Left Headlamp

2 C353 B106 Fascia Cigar Lighter

T R O U B L E S H O O T I N G M A N U A L

17

39 General
