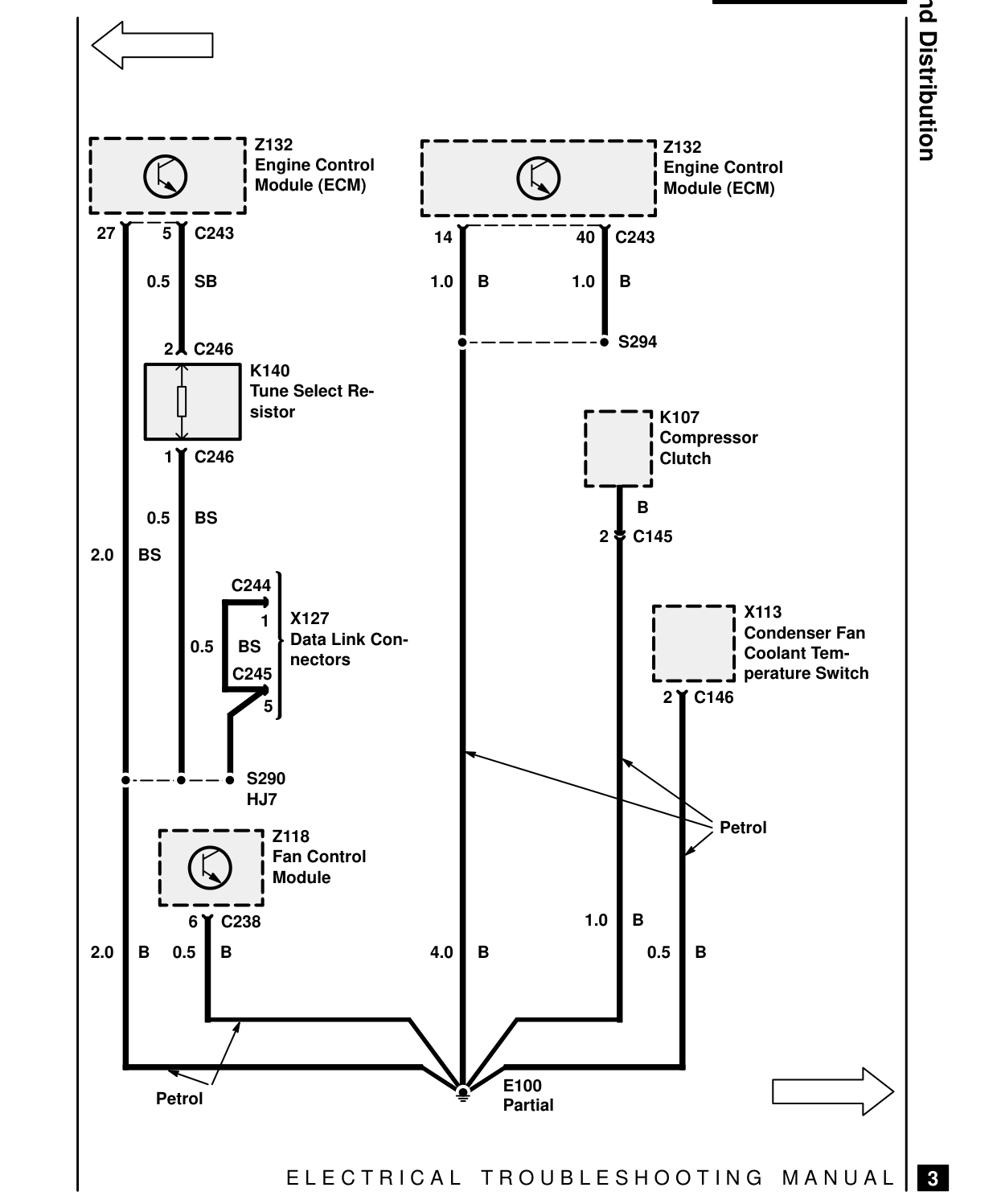

Ground distribution – circuit diagram

GROUND DISTRIBUTION – CIRCUIT DIAGRAM

Z132 Engine Control Module (ECM)

27 5 C243 14

1.0 0.5 SB

C246 2 K140 Tune Select Re- sistor

C246 1

0.5 BS

2.0 BS C244 X127 1 Data Link Con- 0.5 BS nectors C245 5

S290 HJ7

Z118 Fan Control Module

C238 6 4.0 2.0 B 0.5 B

Petrol

E L E C T R I C A L

Ground Distribution Z132 Engine Control Module (ECM)

40 C243

B 1.0 B

S294

K107 Compressor Clutch

B 2 C145

X113 Condenser Fan Coolant Tem- perature Switch C146 2

Petrol

1.0 B B 0.5 B

E100 Partial

T R O U B L E S H O O T I N G M A N U A L

3
