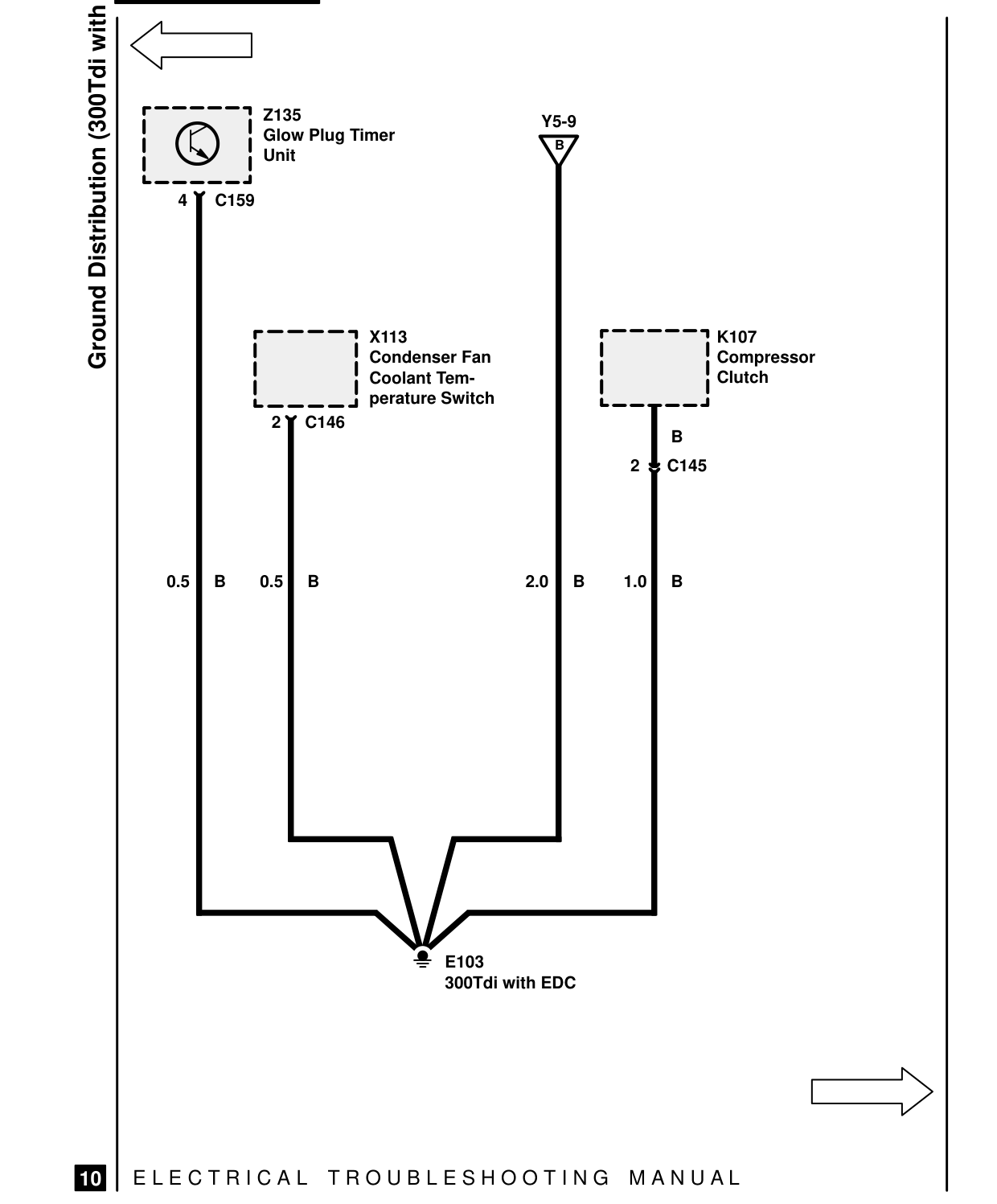

GROUND DISTRIBUTION – CIRCUIT DIAGRAM

Ground Distribution (300Tdi with EDC) Z135 Glow Plug Timer Unit

4 C159

X113 Condenser Fan Coolant Tem- perature Switch 2 C146

0.5 B 0.5 B

E L E C T R I C A L T R O U B L E S H O O T I N G

10

Y5-9 B

K107 Compressor Clutch

B 2 C145

2.0 B 1.0 B

E103 300Tdi with EDC

M A N U A L

40 General
