Ground distribution – circuit diagram

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Ground distribution – circuit diagram

Ground distributionGround distribution – circuit diagram

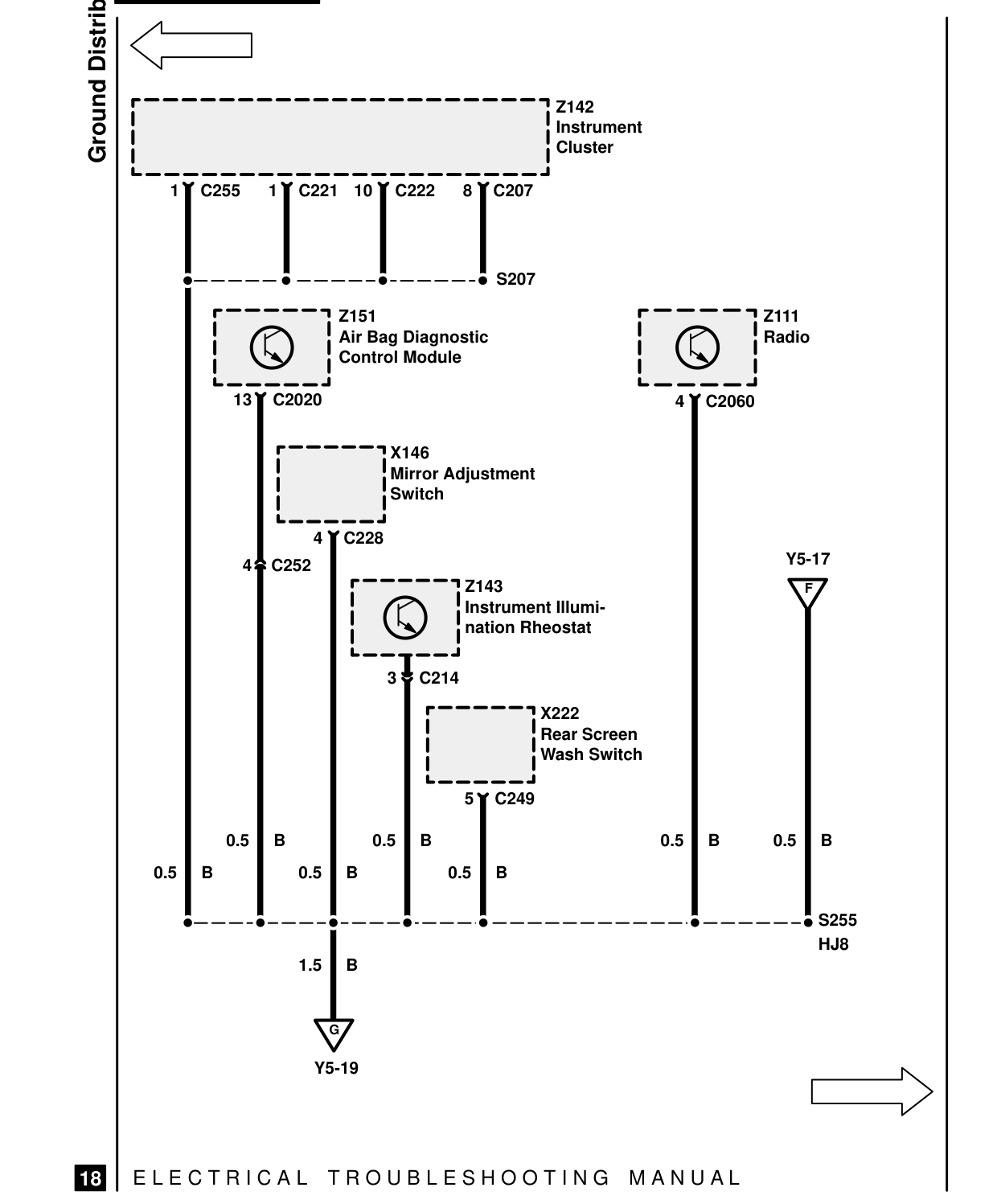

GROUND DISTRIBUTION – CIRCUIT DIAGRAM

Ground Distribution

1 C221 10 C222 1 C255

Z151 Air Bag Diagnostic Control Module

13 C2020

X146 Mirror Adjustment Switch

4 C228 4 C252

3 C214

0.5 B 0.5 B 0.5 B 0.5 B

1.5 B

G

Y5-19

E L E C T R I C A L T R O U B L E S H O O T I N G

18

Z142 Instrument Cluster

8 C207

S207

Z111 Radio

4 C2060

Y5-17 Z143 F Instrument Illumi- nation Rheostat

X222 Rear Screen Wash Switch

5 C249

0.5 B 0.5 B 0.5 B

S255 HJ8

M A N U A L

40 General
