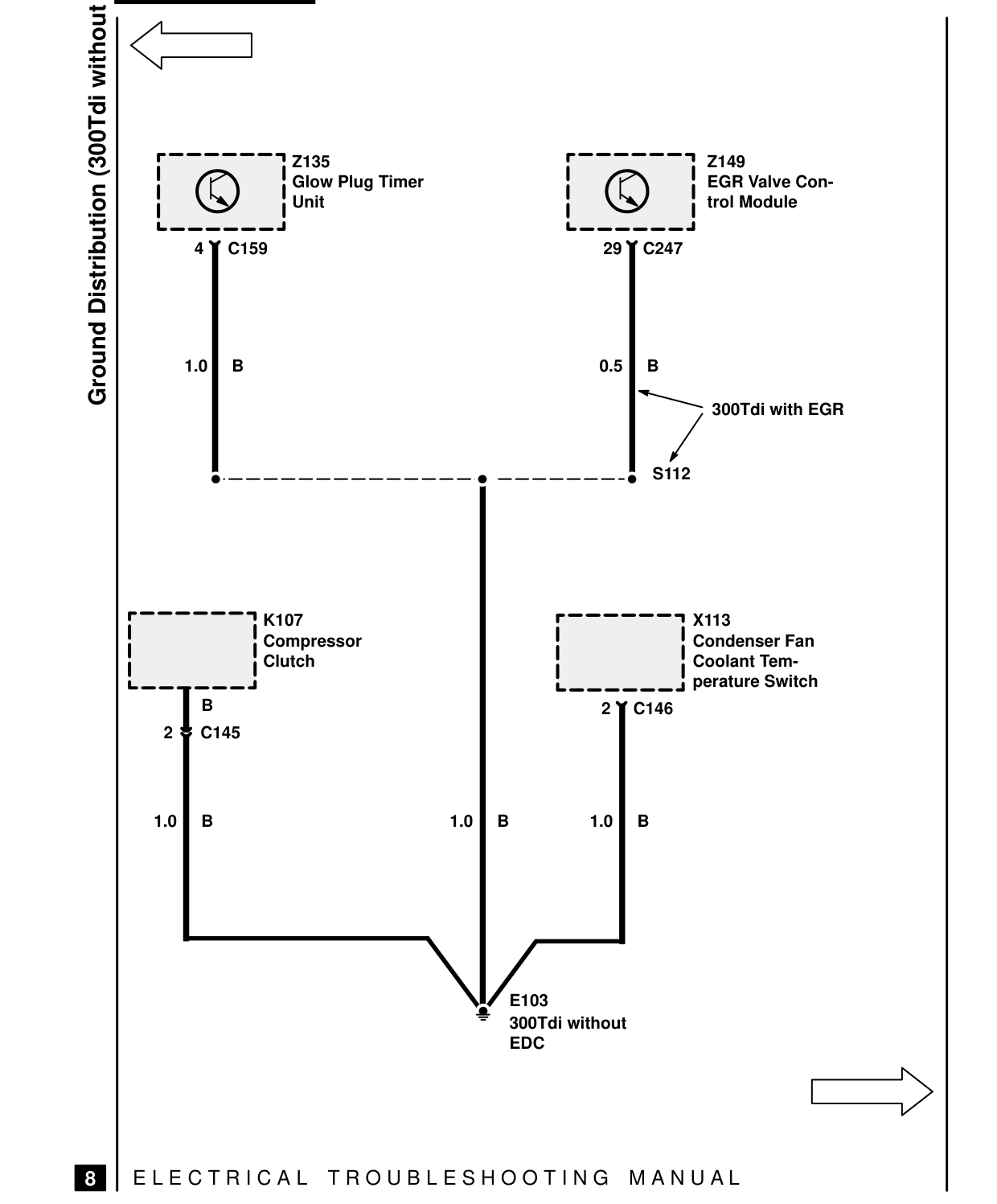

GROUND DISTRIBUTION – CIRCUIT DIAGRAM

Ground Distribution (300Tdi without EDC) Z135 Glow Plug Timer Unit

C159 4

1.0 B

K107 Compressor Clutch

B C145 2

1.0 B

E L E C T R I C A L T R O U B L E S H O O T I N G

8

Z149 EGR Valve Con- trol Module

29 C247

0.5 B

300Tdi with EGR

S112

X113 Condenser Fan Coolant Tem- perature Switch 2 C146

1.0 B 1.0 B

E103 300Tdi without EDC

M A N U A L

40 General
