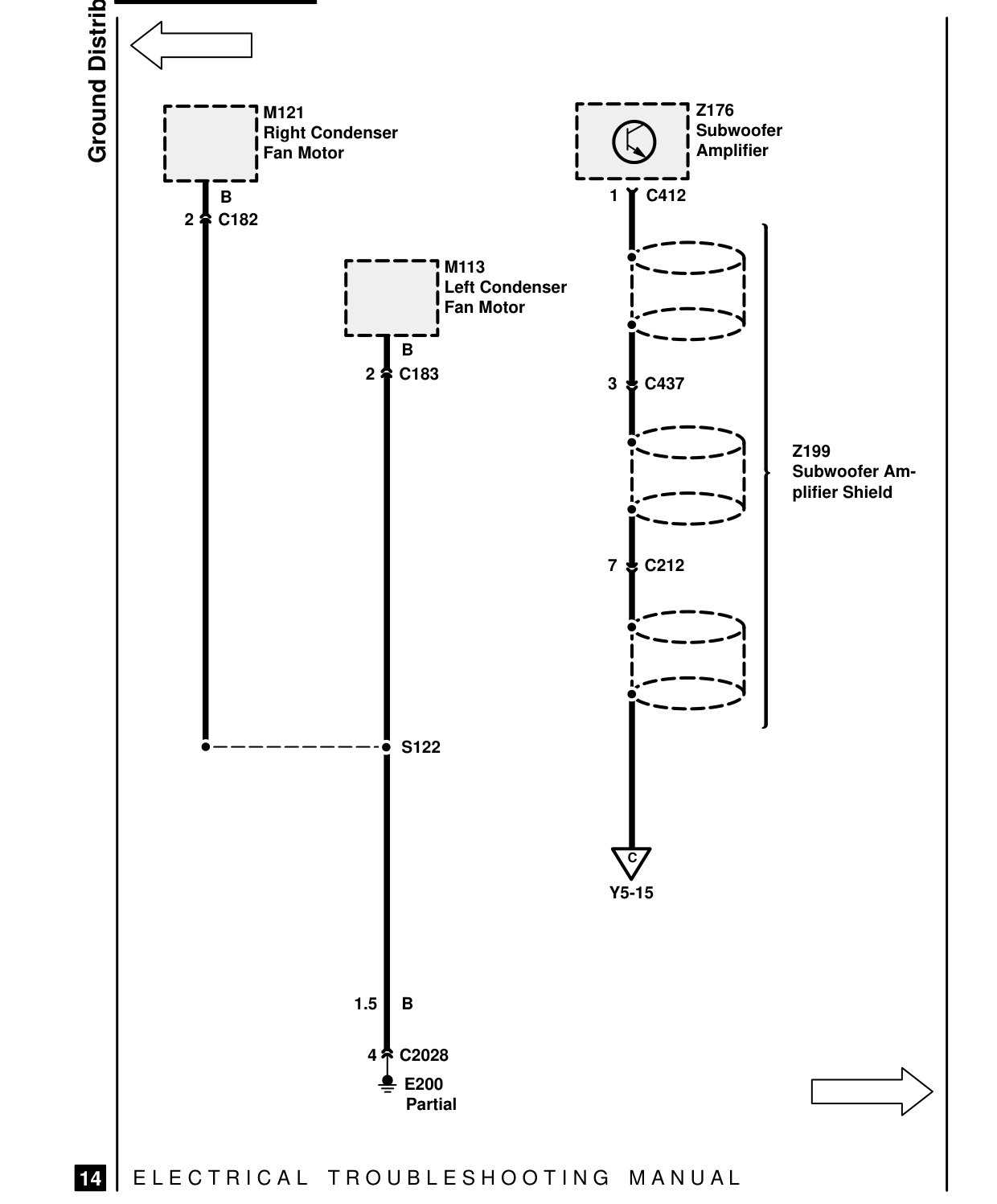

GROUND DISTRIBUTION – CIRCUIT DIAGRAM

Ground Distribution M121 Right Condenser Fan Motor

B 2 C182

M113 Left Condenser Fan Motor

B 2 C183

S122

1.5 B

4 C2028 E200 Partial

E L E C T R I C A L T R O U B L E S H O O T I N G

14

Z176 Subwoofer Amplifier

1 C412

3 C437

Z199 Subwoofer Am- plifier Shield

7 C212

C

Y5-15

M A N U A L

40 General
