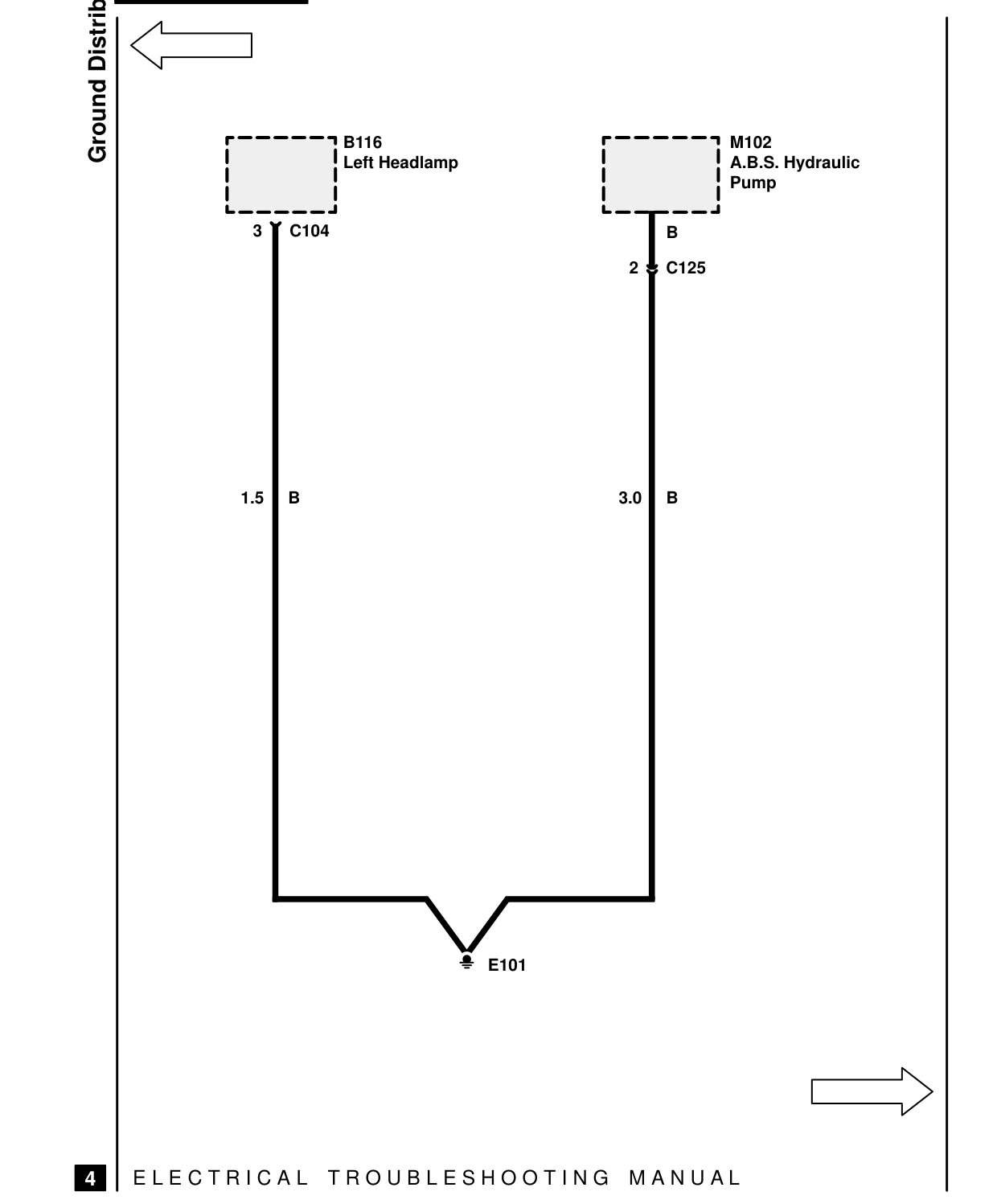

GROUND DISTRIBUTION – CIRCUIT DIAGRAM

Ground Distribution B116 Left Headlamp

3 C104

1.5 B

E L E C T R I C A L T R O U B L E S H O O T I N G

4

M102 A.B.S. Hydraulic Pump

B

2 C125

3.0 B

E101

M A N U A L

40 General
