Ground distribution – circuit diagram

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Ground distribution – circuit diagram

Ground distributionGround distribution – circuit diagram

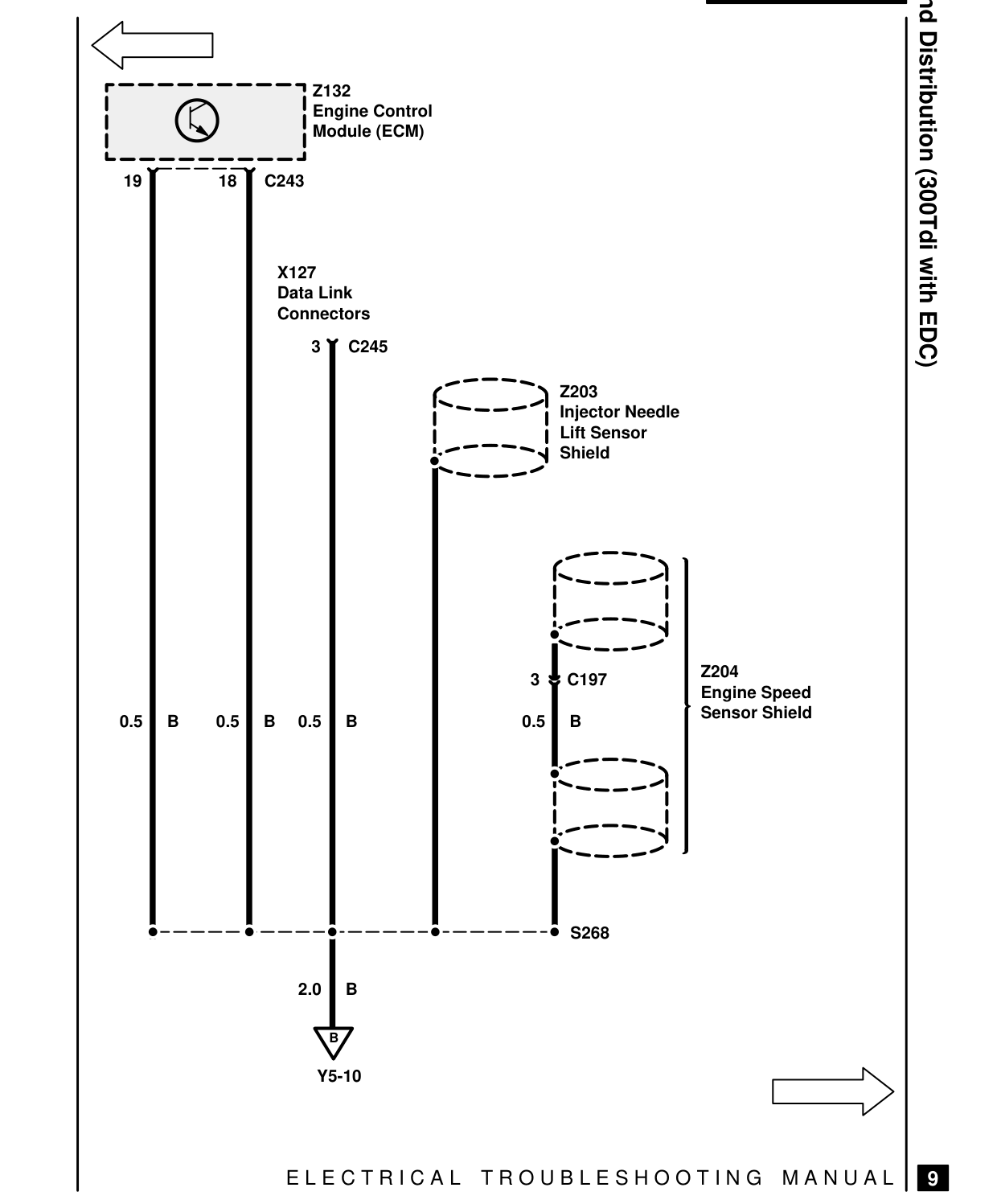

GROUND DISTRIBUTION – CIRCUIT DIAGRAM

Z132 Engine Control Module (ECM)

18 C243 19

X127 Data Link Connectors

3 C245

0.5 B 0.5 B 0.5 B

2.0 B

B

Y5-10

E L E C T R I C A L

Ground Distribution (300Tdi with EDC) Z203 Injector Needle Lift Sensor Shield

Z204 3 C197 Engine Speed Sensor Shield 0.5 B

S268

T R O U B L E S H O O T I N G M A N U A L

9

40 General
