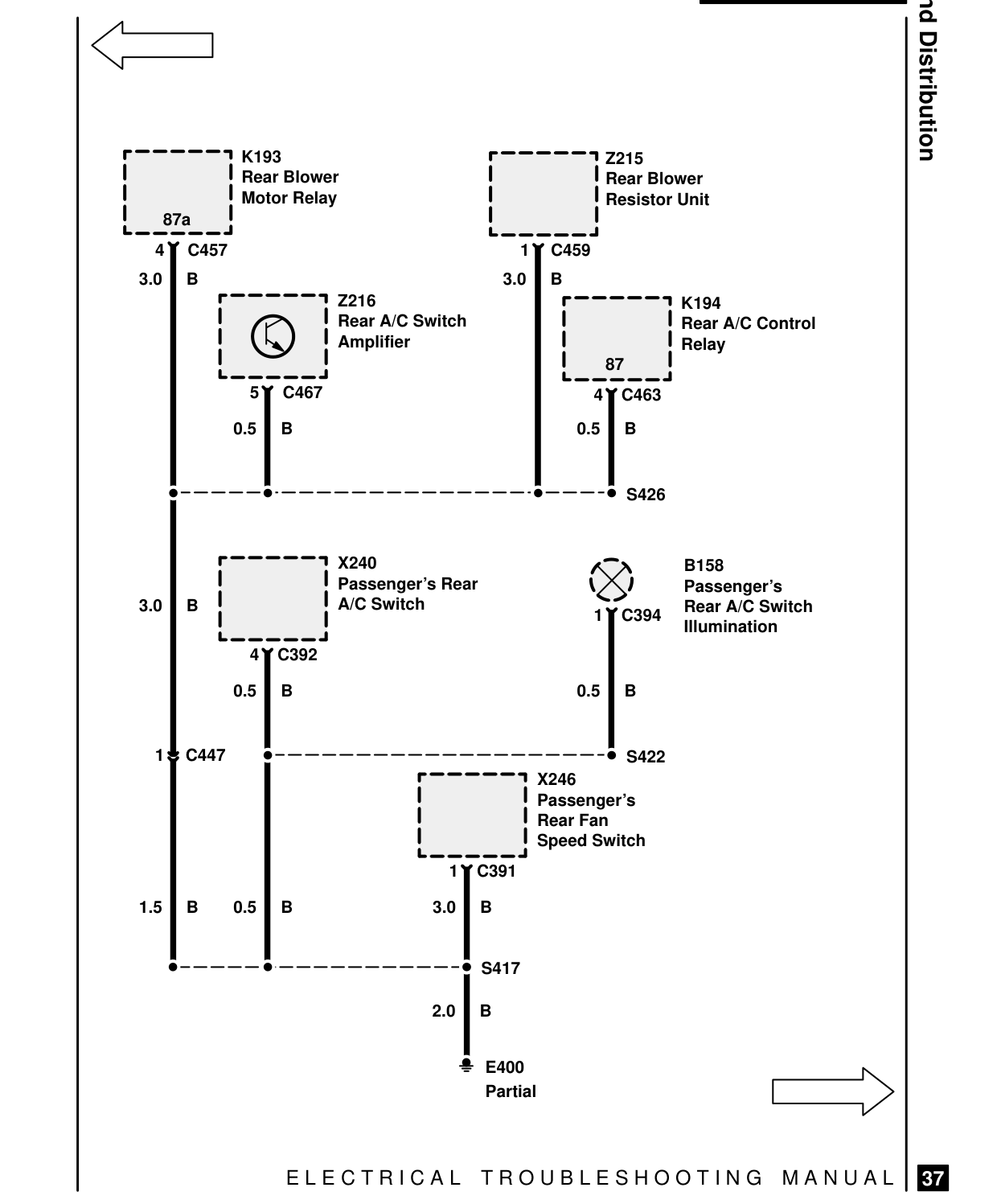

Ground distribution – circuit diagram

GROUND DISTRIBUTION – CIRCUIT DIAGRAM

K193 Rear Blower Motor Relay 87a 4 C457 3.0 B Z216 Rear A/C Switch Amplifier

5 C467

0.5 B

X240 Passenger’s Rear A/C Switch 3.0 B

4 C392

0.5 B

1 C447

1

1.5 B 3.0 0.5 B

2.0

E L E C T R I C A L

Ground Distribution Z215 Rear Blower Resistor Unit

1 C459 3.0 B K194 Rear A/C Control Relay 87 4 C463

0.5 B

S426

B158 Passenger’s Rear A/C Switch 1 C394 Illumination

0.5 B

S422 X246 Passenger’s Rear Fan Speed Switch C391

B

S417

B

E400 Partial
