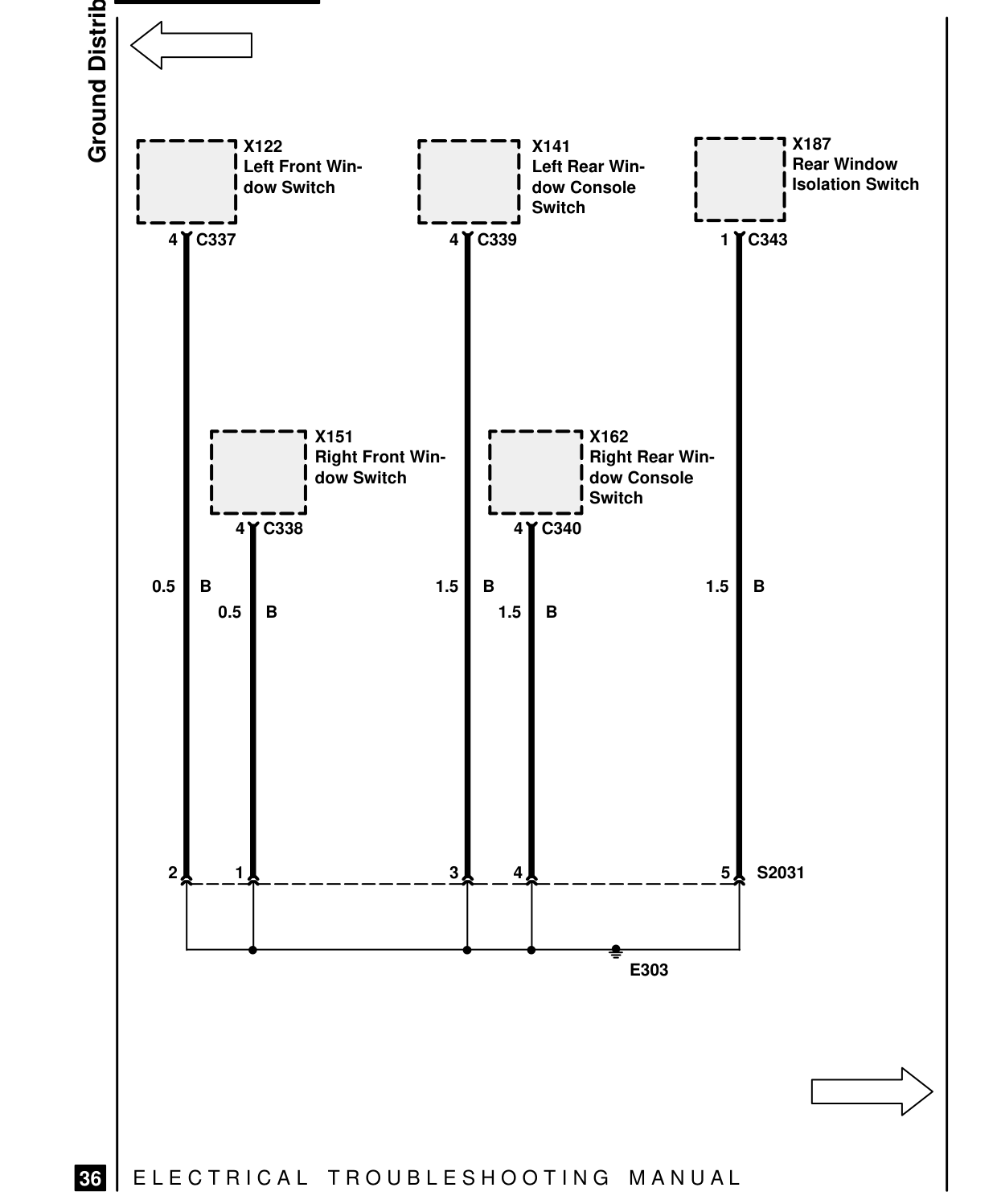

GROUND DISTRIBUTION – CIRCUIT DIAGRAM

Ground Distribution X122 Left Front Win- dow Switch

4 4 C337

X151 Right Front Win- dow Switch

4 C338

0.5 B 1.5 0.5 B

2 1 3

E L E C T R I C A L T R O U B L E S H O O T I N G

36

X187 X141 Rear Window Left Rear Win- Isolation Switch dow Console Switch C339 1 C343

X162 Right Rear Win- dow Console Switch 4 C340

B 1.5 B 1.5 B

4 5 S2031

E303

M A N U A L
