Evaporator and motor assembly - rear (page 2 of 2)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
Air conditioningEvaporator and motor assembly - rear · page 2 of 2

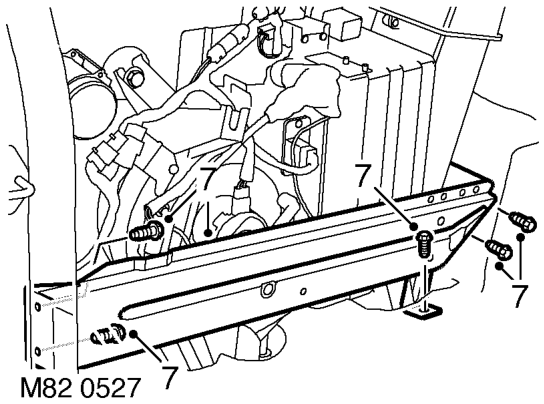

Diagram

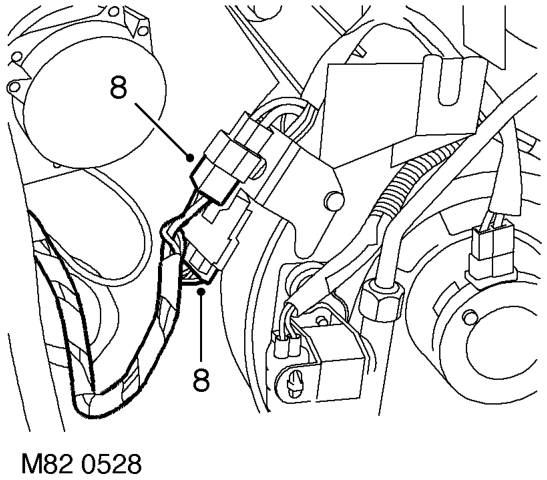

  1. Disconnect A/C harness multiplugs from body harness.
Disconnect A/C harness multiplugs from body harness.

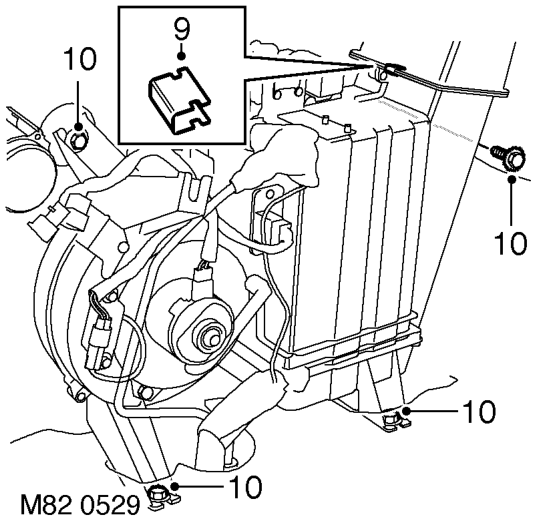

  1. Remove 2 clips securing ducting to A/C assembly and release ducting.
Remove 2 clips securing ducting to A/C assembly and release ducting.
  1. Remove 4 bolts securing evaporator assembly and remove assembly.

Refit

  1. Position evaporator assembly to body fit bolts and tighten to 16 Nm (12 lbf.ft).
  2. Position ducting to evaporator assembly and secure with clips.
  3. Connect harness multiplugs.
  4. Position seat support bracket, fit bolts and tighten to 24 Nm (18 lbf.ft).
  5. Fit LH rear lower trim casing. INTERIOR TRIM COMPONENTS, REPAIRS, Trim casing - side - loadspace.
  6. Position grommet flange and tighten bolts.
  7. Lubricate new 'O' rings with clean refrigerant oil and fit to high and low pressure pipes.
  8. Position high and low pressure pipes, fit bolts and tighten to 10 Nm (7 lbf.ft).
  9. V8 models: Position exhaust heat shield and secure with clips.
  10. Repressurise air conditioning system. AIR CONDITIONING, REFRIGERANT RECOVERY, RECYCLING AND RECHARGING, Refrigerant recovery, recycling and recharging.
