Air conditioningFan - condenser · page 2 of 3

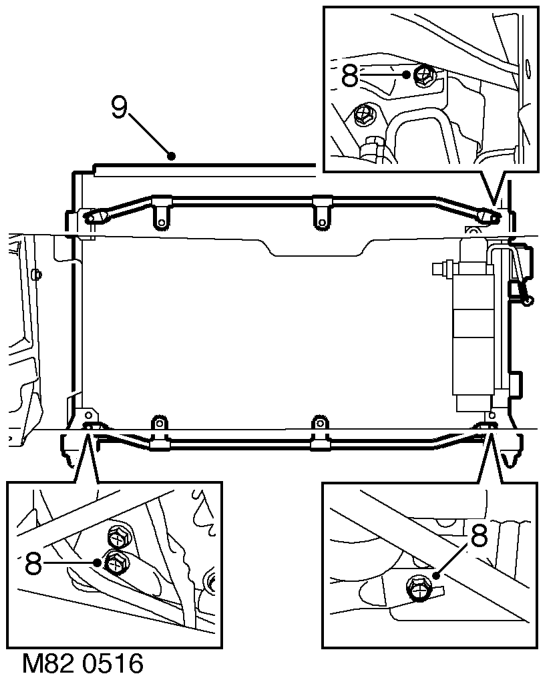

  1. Remove bolt securing condenser pipe to
Remove bolt securing condenser pipe to

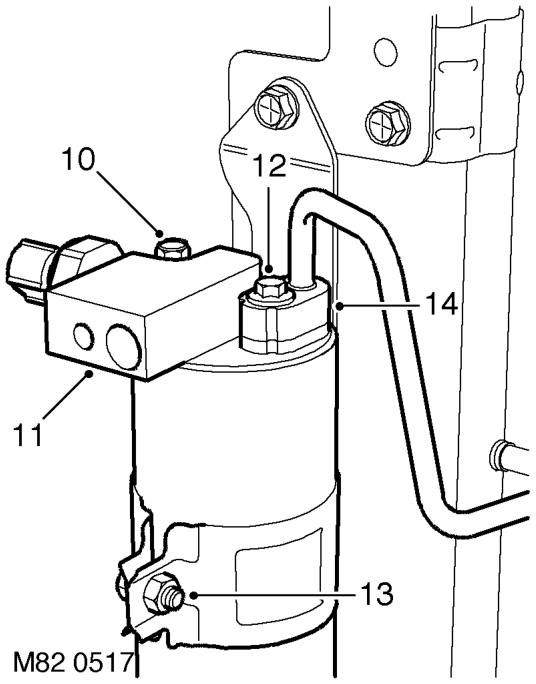

  1. Remove clamp bolt receiver drier to bracket
  2. Remove and discard 'O' ring from condenser
  3. Remove 3 remaining bolts securing cooling fan support rails to condenser.
  4. Remove condenser.
Remove condenser.

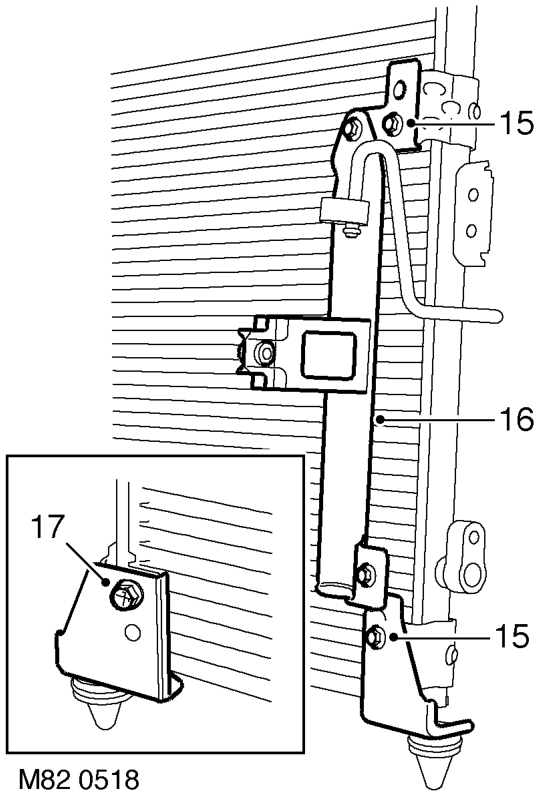

  1. Remove 2 remaining bolts securing receiver
  2. Remove mounting bracket assembly.
  3. Remove remaining bolt securing condenser RH
  4. Remove bolt securing adaptor block to receiver drier.
  5. Remove adaptor block from receiver drier and discard 'O' ring.

CAUTION: Always fit plugs to open connections to prevent contamination.

receiver drier.

and remove drier from bracket.

pipe.

CAUTION: Always fit plugs to open connections to prevent contamination.

pipe.

drier brackets and condenser LH mounting bracket to condenser.

mounting and remove mounting.
