Brakes (Rear brakes): Description and operation

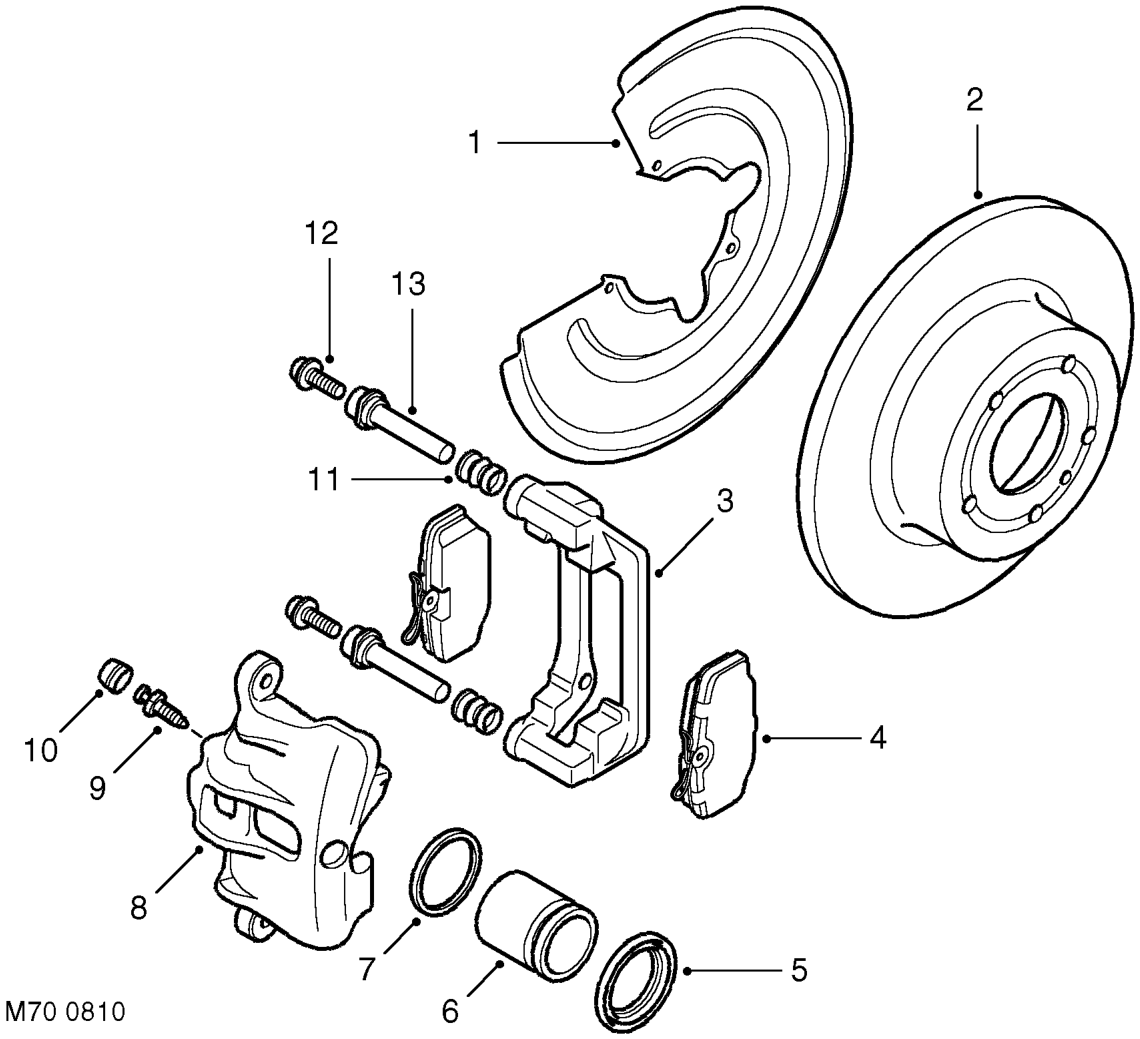

Rear brakes

1 Mudshield 2 Brake disc 3 Caliper carrier 4 Brake pad 5 Piston dust cover 6 Piston 7 Piston seal

8 Caliper body 9 Bleed screw 10 Bleed screw cap 11 Guide pin dust cover 12 Guide pin bolt 13 Guide pin

The rear brakes each comprise of a hub mounted, single piston caliper assembly and a solid disc. The inboard side of the disc is protected by a mudshield.

When hydraulic pressure is supplied to the caliper, the piston extends and forces the inner pad against the disc. The caliper body reacts and slides on the guide pins to bring the outer pad into contact with the disc.
