ABS modulator

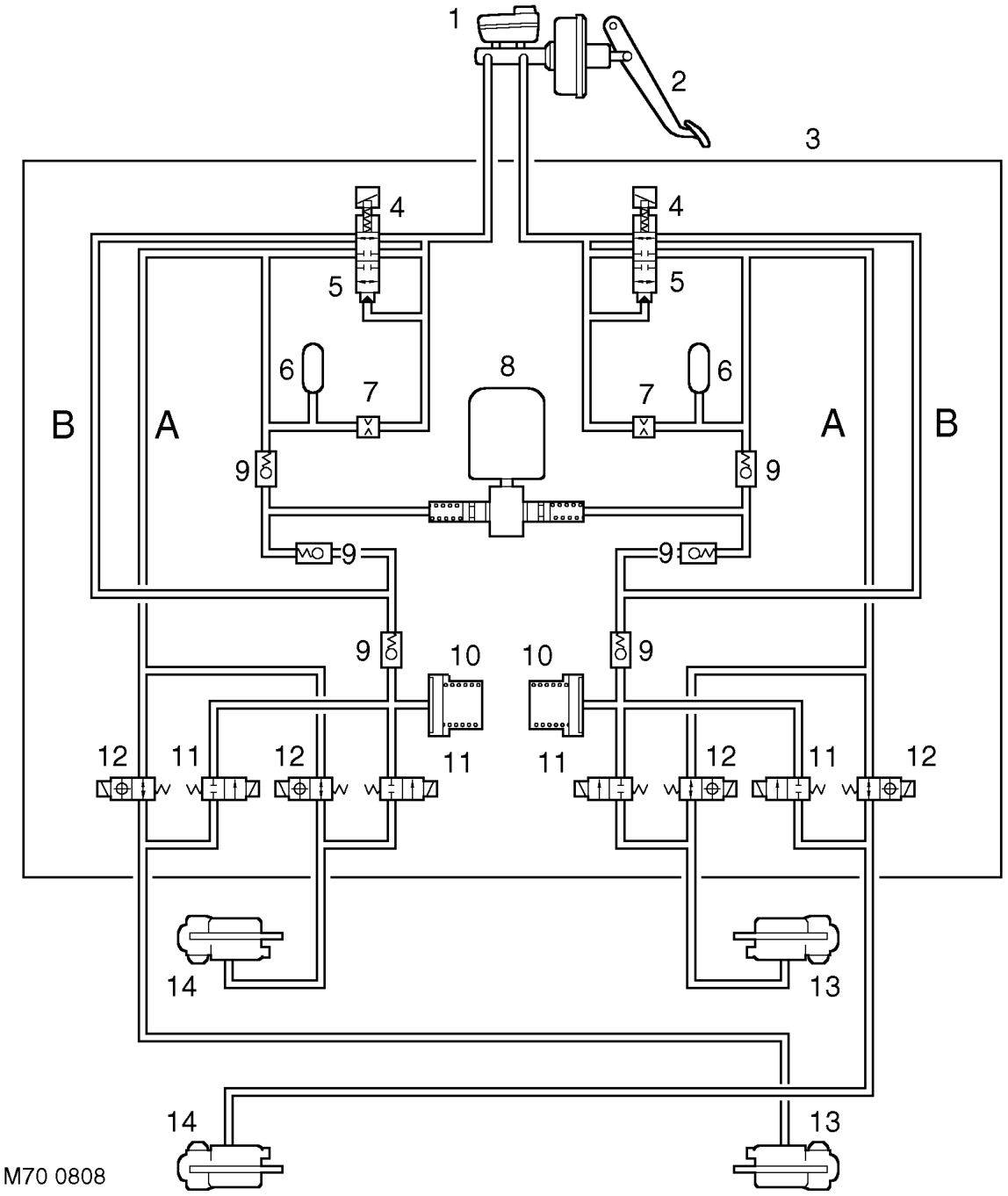

ABS modulator schematic

1 Master cylinder/brake servo assembly 2 Brake pedal 3 ABS modulator 4 Shuttle valve switch 5 Shuttle valve 6 Damper chamber 7 Restrictor

8 Return pump 9 Non return valve 10 Expansion chamber 11 Outlet solenoid valve 12 Inlet solenoid valve 13 Rear brake 14 Front brake
