Section through brake servo assembly - brakes on

Make

Land Rover

Model

Discovery II (UK)

Section

Description and operation › Section through brake servo assembly - brakes on

BrakesSection through brake servo assembly - brakes on

Section through brake servo assembly - brakes on

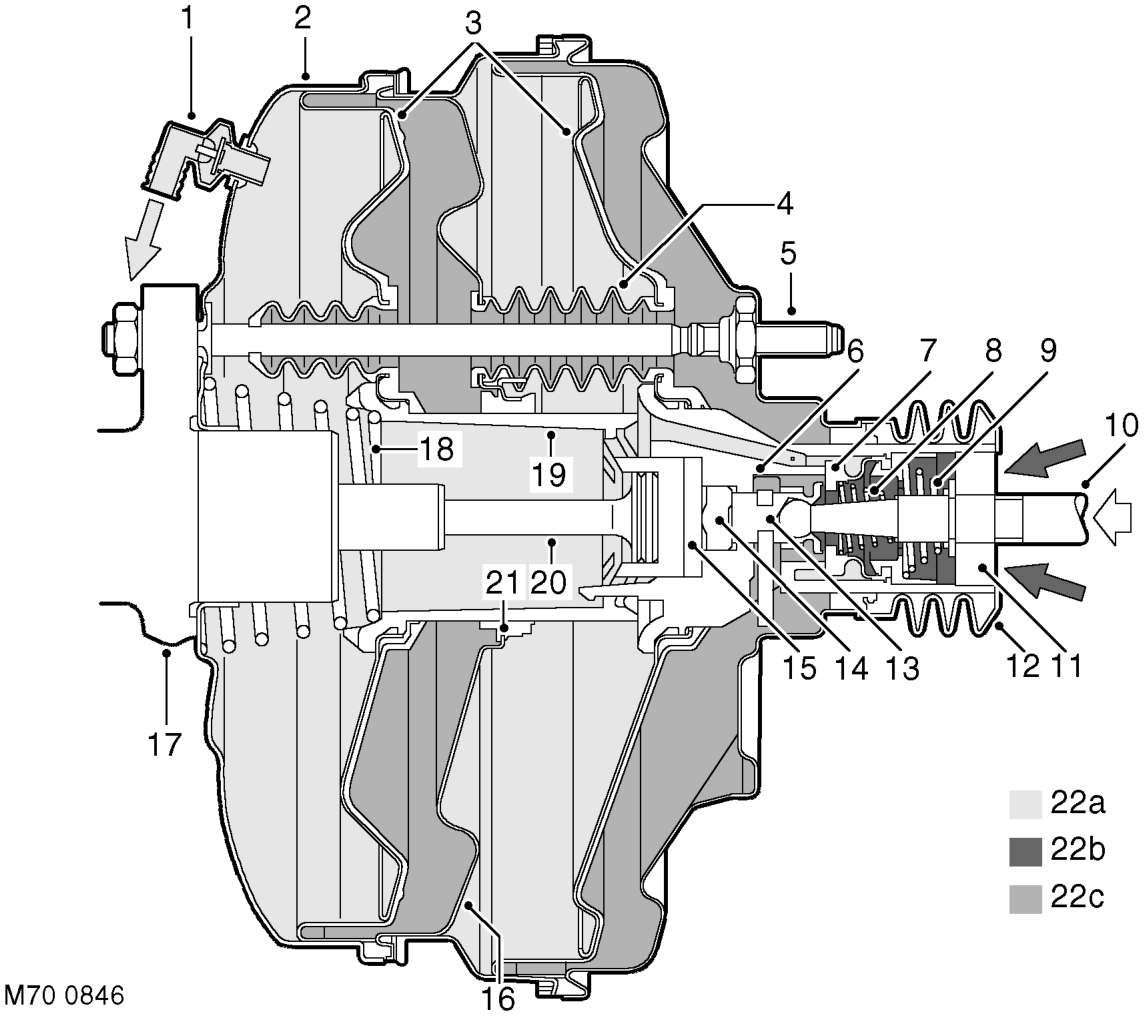

1 Non return valve 2 Housing 3 Diaphragms 4 Minor diaphragm 5 Tie bolt 6 Valve body 7 Valve 8 Valve spring 9 Input rod spring 10 Input push rod 11 Filter

12 Gaiter 13 Piston 14 Ratio disc 15 Reaction disc 16 Central plate 17 Master cylinder 18 Return spring 19 Guide tube 20 Output push rod 21 Bush 22 Air pressures a Partial vacuum b Ambient c Servo

32 Brakes
