Repairs › Canister - EVAP
Emission control - V8Canister - EVAP

REPAIRS

Canister - EVAP

$% 17.15.13

Remove

  1. Raise vehicle on lift.

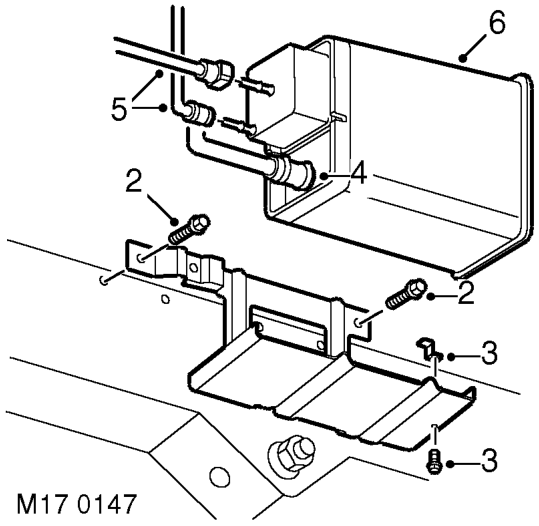

Canister - evap – Raise vehicle on lift.
  1. Remove 2 bolts securing canister bracket to chassis.
  2. Remove bolt securing canister to bracket and remove bracket.
  3. Release clip and disconnect atmosphere vent pipe from canister.
  4. Release and remove purge and tank vent pipes from canister.
  5. Remove EVAP canister.

CAUTION: Always fit plugs to open connections to prevent contamination.

Refit

  1. Ensure all connections are clean.
  2. Position new canister and connect purge and tank vent pipes.
  3. Connect atmospheric vent pipe to canister and secure with clip.
  4. Fit bracket to canister and secure with bolt.
  5. Fit canister and bracket and secure with bolts.

Canister - EVAP - Models with Fuel Leak Detection Pump - up to 03MY

$% 17.15.13

Remove

  1. Raise vehicle on lift.

2

M17 0219
  1. Remove 3 Torx screws securing fuel leak detection pump to mounting bracket.
M17 0220
  1. Remove 3 bolts securing EVAP canister mounting bracket to chassis longitudinal.
