Land Rover Discovery II (UK)12 · Emission control - V8
12 · Engine

Canister - EVAP - Models with Fuel Leak

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Canister - EVAP - Models with Fuel Leak
Emission control - V8Canister - EVAP - Models with Fuel Leak · page 1 of 2

Canister - EVAP - Models with Fuel Leak

7 Detection Pump - from 03MY

$% 17.15.13 4

8 Remove 7

9

4

5 4

M17 0221
  1. Remove 2 bolts securing EVAP canister to mounting bracket and collect clamp.
  2. Remove mounting bracket.
  3. Position cloth to absorb any fuel spillage.
  4. Release purge and tank vent pipes from EVAP canister.
  5. Remove clip securing fuel leak detection pump pipe to EVAP canister.
  6. Release pipe from EVAP canister and remove canister.

CAUTION: Plug the connections.

Refit

  1. Remove plugs and ensure all connections are clean.
  2. Connect fuel leak detection pump pipe to EVAP canister and secure with clip.
  3. Connect purge and tank vent pipes to EVAP canister.
  4. Position mounting bracket to EVAP canister and secure with bolts.
  5. Position mounting bracket to chassis longitudinal and tighten bolts.
  6. Fit Torx screws securing fuel leak detection pump to mounting bracket.
  7. Lower vehicle.
  8. Raise the vehicle on lift.

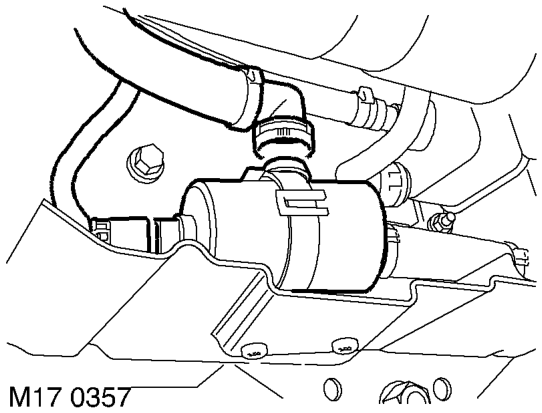

Canister - evap - models with fuel leak – Raise the vehicle on lift.
  1. Disconnect multiplug from the fuel leak detection pump.
  2. Disconnect the fuel leak detection filter pipe from the fuel leak detection pump.

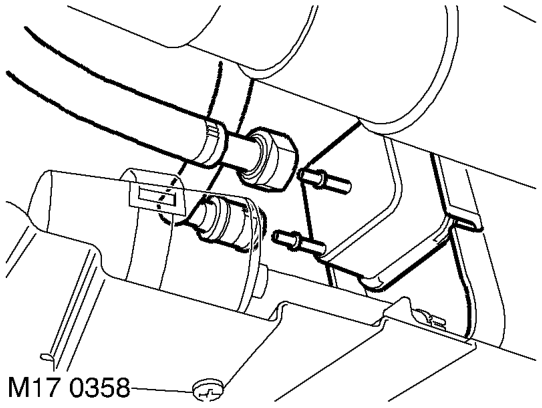

Canister - evap - models with fuel leak – Disconnect the fuel leak detection filter pipe from the fuel leak detection pump.
  1. Release clips and disconnect 2 vent pipes from the EVAP canister.

CAUTION: Always fit plugs to open connections to prevent contamination.
