Canister - EVAP - Models with Fuel Leak (page 2 of 2)

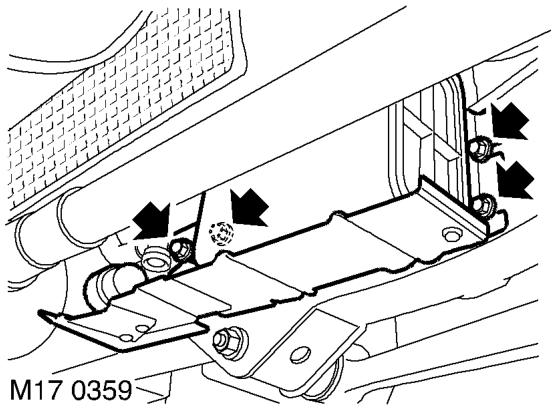

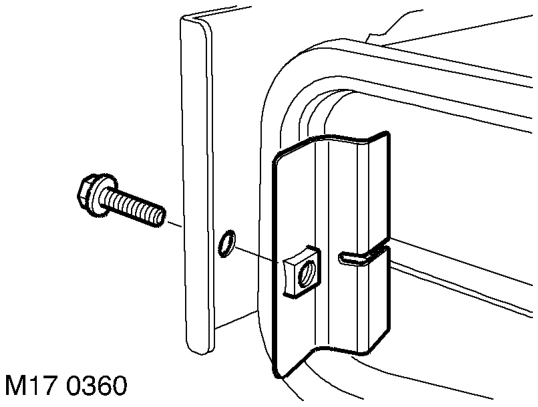

5. Remove and discard 4 bolts securing EVAP canister mounting bracket to the chassis and remove the EVAP canister assembly. NOTE: Do not carry out further dismantling if component is removed for access only.

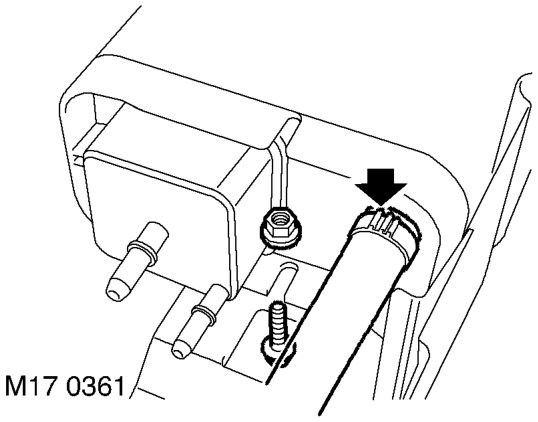

6. Remove bolt securing EVAP canister retaining clamp to the mounting bracket and collect the clamp.

7. Remove nut and bolt securing EVAP canister to the mounting bracket.
8. Remove and discard clip securing fuel leak detection pump fuel pipe to the EVAP canister and disconnect the fuel pipe.
9. Remove the EVAP canister.

Refit

1. Position EVAP canister to the mounting bracket.
2. Connect fuel leak detection pump fuel pipe to the EVAP canister and secure with a new clip.
3. Fit nut and bolt securing EVAP canister to the mounting bracket and tighten to 10 Nm (7 lbf.ft).
4. Position EVAP canister retaining clamp to the mounting bracket, fit bolt and tighten to 10 Nm (7 lbf.ft).
5. Position EVAP canister mounting bracket to the chassis, fit new bolts and tighten to 25 Nm (18 lbf.ft).
6. Connect vent pipes to the EVAP canister.
7. Connect multiplug to the fuel leak detection pump.
8. Connect the fuel leak detection filter pipe to the fuel leak detection pump.
9. Lower the vehicle lift.
