Harness - engine - diesel (page 2 of 3)
- Make
- Land Rover
- Model
- Discovery II (UK)
- Section
- Repairs
HarnessesHarness - engine - diesel · page 2 of 3

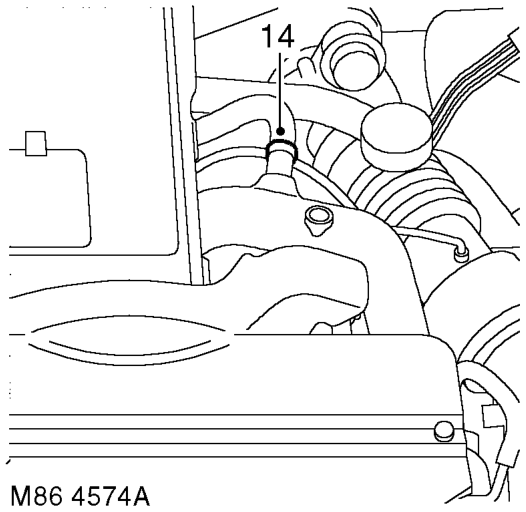

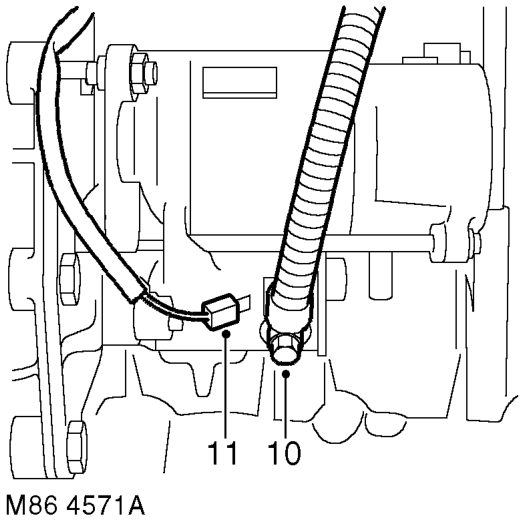

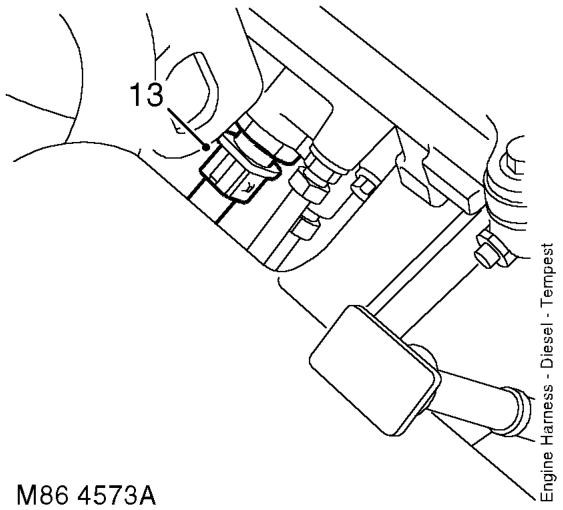

- Remove nut and disconnect battery lead from 13. Disconnect multiplug from fuel temperature starter solenoid.
- Disconnect Lucar from starter solenoid.
- Release harness clip from coolant pipe.

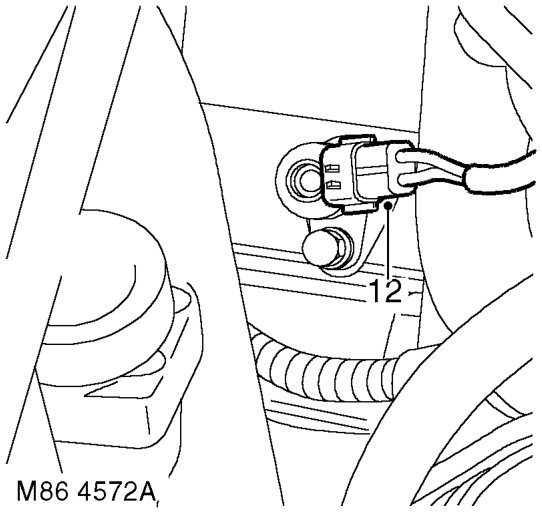

- Disconnect multiplug from CKP sensor.
sensor.
