Power steering, suspension (Maintenance)

Power steering, suspension

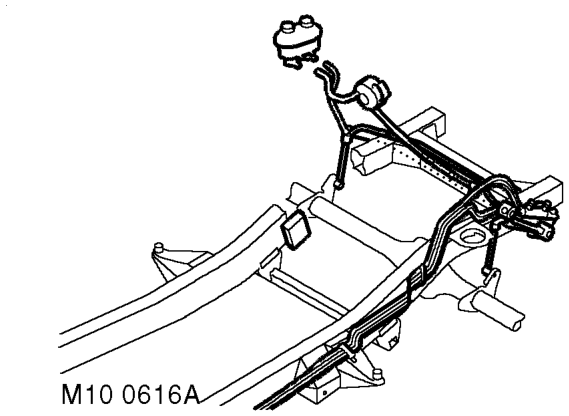

ACE pipes

1. Check for fluid leaks from power steering and suspension systems.
2. Check ACE pipes and unions for chafing, leaks and corrosion and that all pipes and hoses are correctly routed and secure.

Engine, gearbox, transfer box and axles

Check

1. Check for oil leaks from engine, gearbox (manual and automatic), transfer box and front and rear axles; pay particular attention to areas around oil seals.

Exhaust system

Check

1. Check for signs of exhaust system leaks, damage and security.

Steering box and front suspension

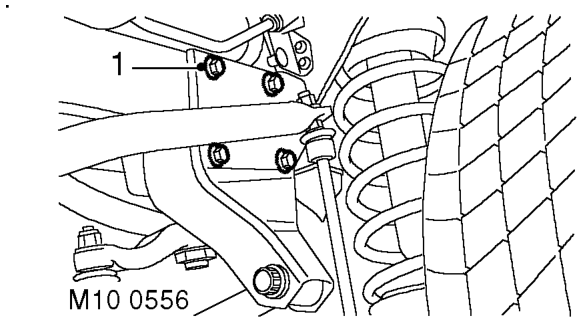

Check/tighten steering box fixings

1. Check steering box fixings and tighten to 90 Nm (66 lbf.ft).

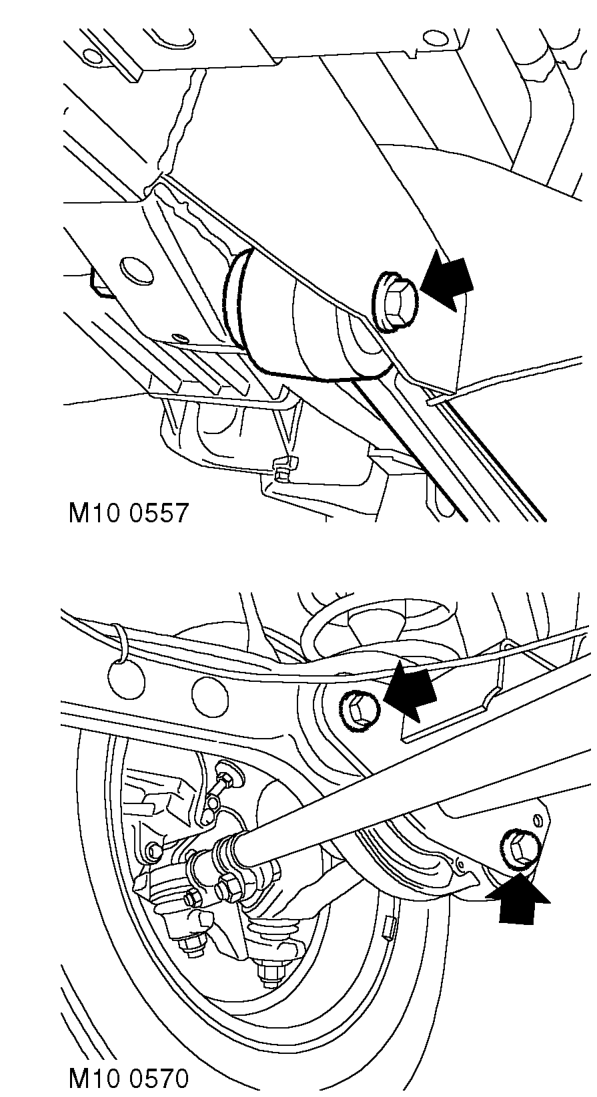

Check/tighten front axle suspension fixings
