Workshop Manuals Factory service & repair Land Rover
Land Rover Discovery II (UK)08 · Maintenance
08 · Maintenance

Seats and seat belts (Maintenance)

Make
Land Rover
Model
Discovery II (UK)
Section
Procedures › Seats and seat belts
MaintenanceSeats and seat belts · page 1 of 2

Seats and seat belts

Check

Seats and seat belts

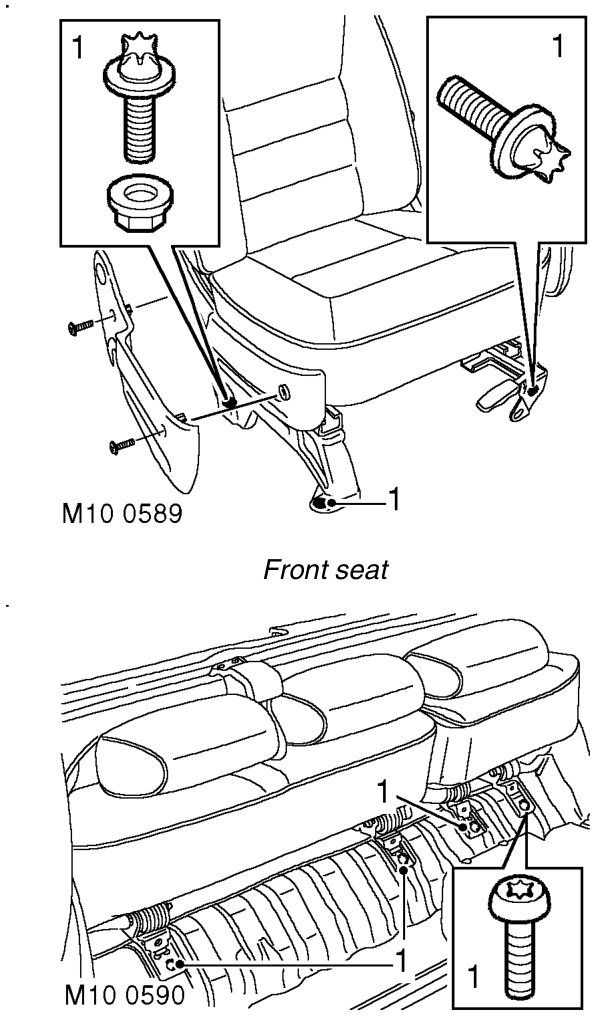

Front seat

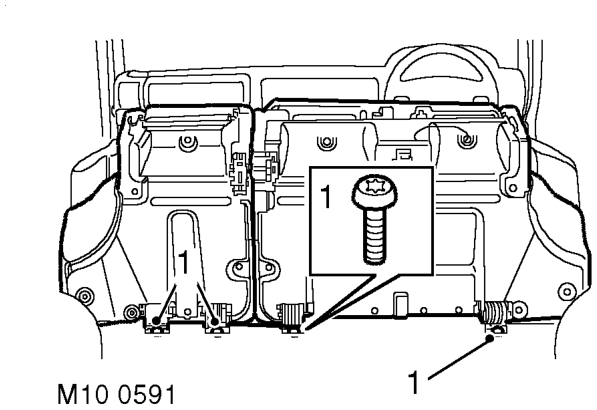

Rear seat rear fixings

Seats and seat belts – Rear seat rear fixings

Rear seat front fixings

  1. Check seat frames are secured to floor and show no signs of movement.
Seats and seat belts – Check seat frames are secured to floor and show no signs of movement.

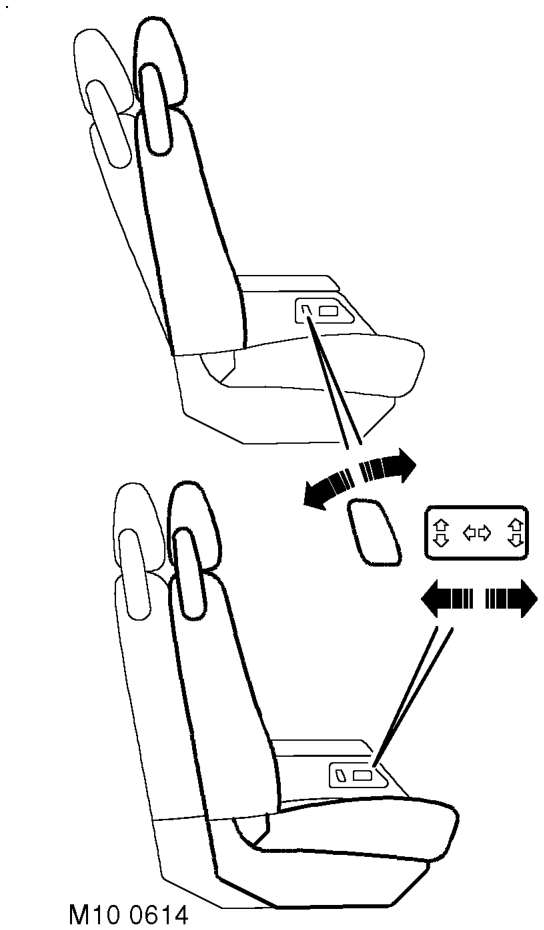

  1. Check operation of seat slide and tilt mechanisms, ensuring there is no excessive play between seat cushion and seat back.
  2. Fully extract seat belt and allow it to return under its own recoil mechanism. Repeat for other belts.
  3. Check entire length of seat belt webbing for signs of fraying or damage. Repeat for other belts.
