Land Rover Discovery II (UK)08 · Maintenance
08 · Maintenance

Seats and seat belts (Maintenance) (page 2 of 2)

Make
Land Rover
Model
Discovery II (UK)
Section
Procedures
MaintenanceSeats and seat belts · page 2 of 2

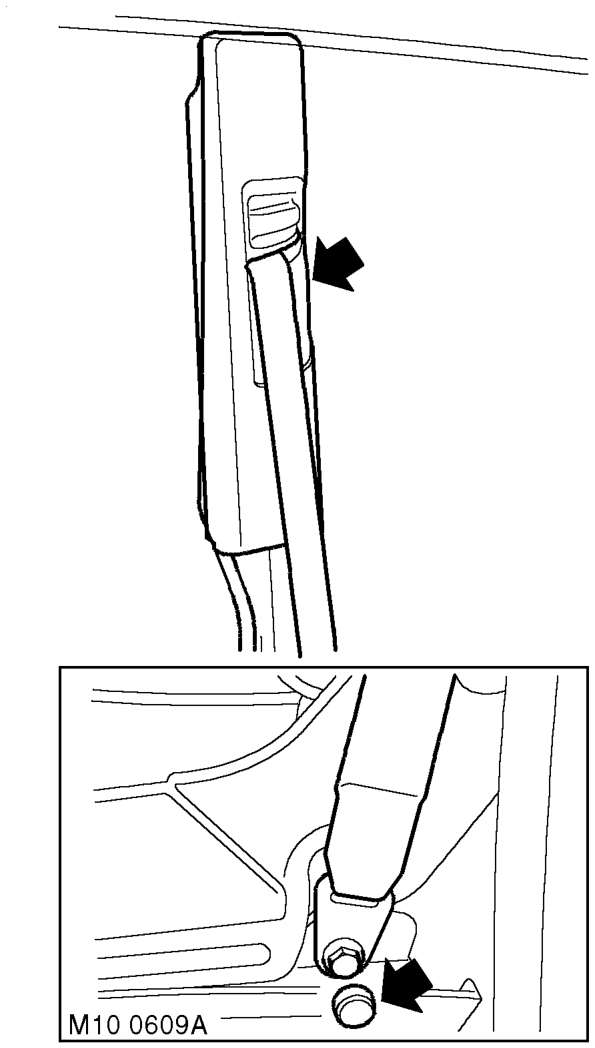

Diagram
  1. Check tightness of accessible seat belt
  2. Check security of seat belt upper mountings.
  3. Check for correct operation of seat belt height adjusters.
  4. Check security of seat belt buckle mountings.
  5. Connect each belt to the correct buckle, check seat buckle and tongue are secure. Release seat belt buckle and check for correct operation.

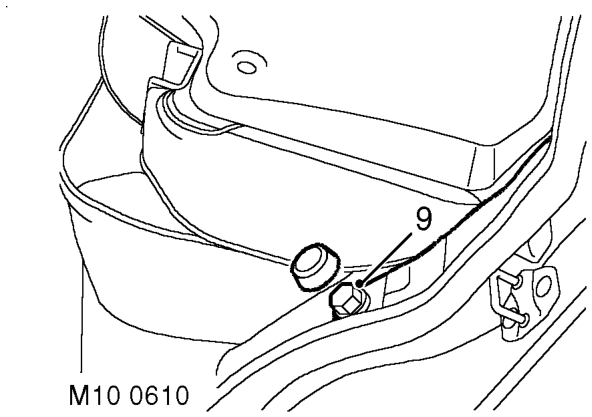

Connect each belt to the correct buckle, check seat buckle and tongue are secure. Release

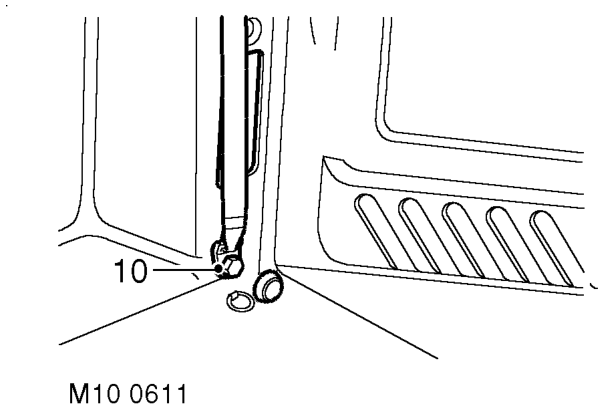

  1. Check tightness of accessible seat belt fixings.
Check tightness of accessible seat belt fixings.

mountings.
