Brake fluid Road wheels (Maintenance)

Brake fluid Road wheels

Replace Refit

1. Replace brake fluid. BRAKES, ADJUSTMENTS, Brake system bleeding.

Fuel filter - diesel engine Radiator/Intercooler

Replace

1. Replace filter element. Check ENGINE MANAGEMENT SYSTEM - Td5, REPAIRS, Element - fuel filter.

• Fuel filter sedimenter
• Ambient air Temperature and pressure
• sensor

Drain

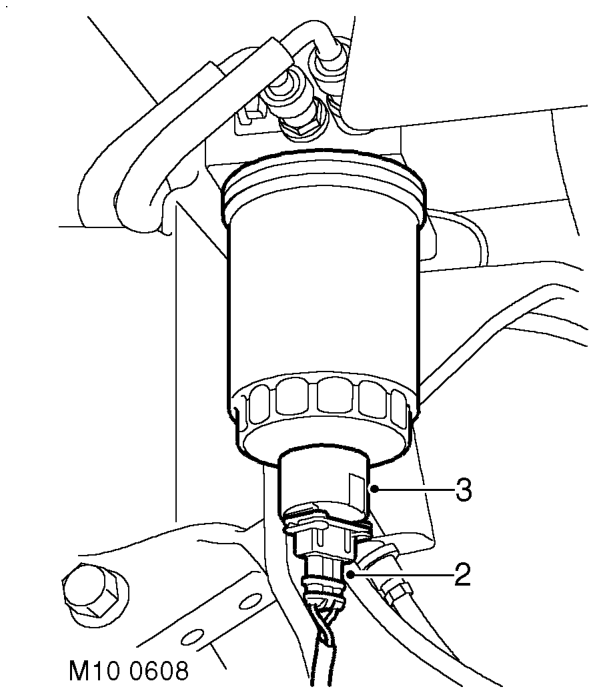

1. Position suitable container beneath fuel filter. Check

2. Disconnect multiplug from sedimenter.
3. Rotate sedimenter anti-clockwise until water flows from drain tube.
4. Allow to drain until diesel fuel flows from drain tube.
5. Rotate sedimenter fully clockwise.
6. Connect multiplug.
1. Apply anti-seize compound to wheel hub centre.

2. Refit road wheels to original hub position. Tighten wheel nuts to 140 Nm (103 lbf.ft).

1. Visually check radiator/intercooler for external obstructions, remove debris.

2. Visually check fan blades for damage.

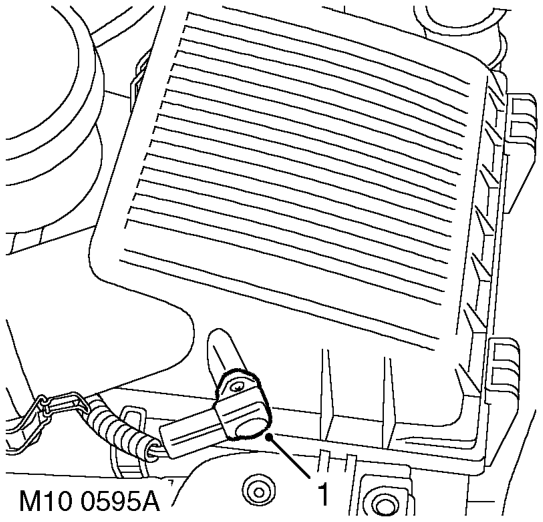

1. Check ambient air temperature and pressure sensor for damage.
