Gearbox - V8 (page 2 of 4)

Make

Land Rover

Model

Discovery II (UK)

Section

Repairs

Manual gearbox - R380Gearbox - V8 · page 2 of 4

12. Remove 8 nuts securing front propeller shaft to transfer gearbox and differential.
13. Remove propeller shaft.
14. Repeat above operation for rear propeller shaft.

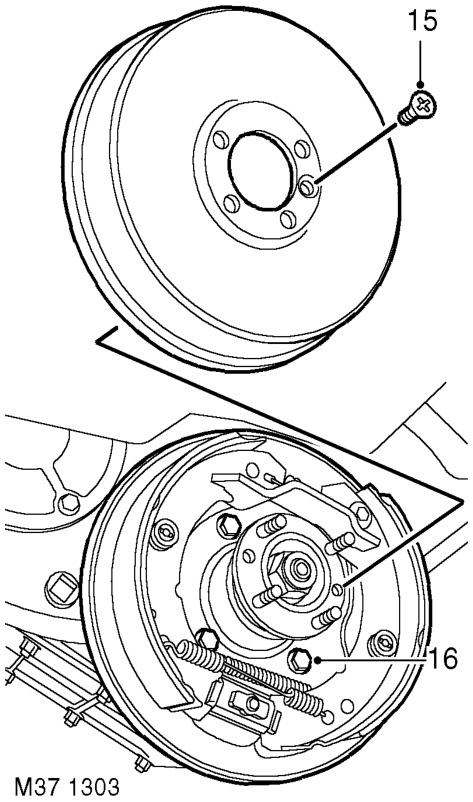

15. Remove handbrake drum retaining screw and remove handbrake drum.
16. Remove 4 bolts from handbrake back plate, release back plate and tie aside.

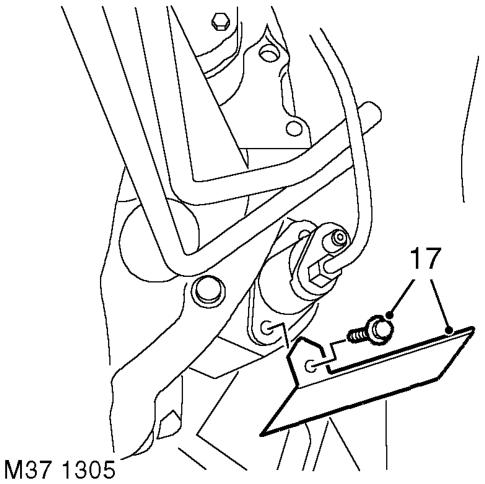

17. Remove 2 bolts securing clutch slave cylinder, collect heat shield, release slave cylinder and position aside.

18. Fit support plate LRT-99-007 to gearbox jack.

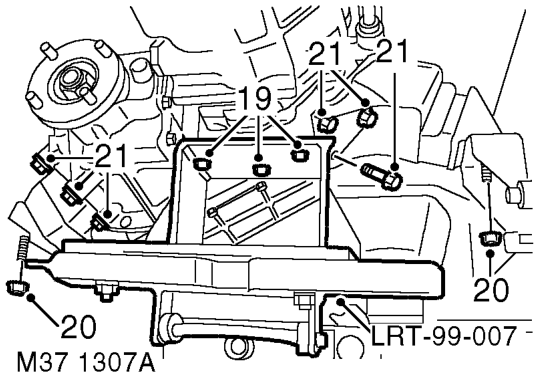

19. Position gearbox jack and support plate to gearbox and secure with 3 bolts.
20. Support the weight of gearbox, remove nuts securing gearbox mountings to body.
21. Remove 8 bolts securing mountings to gearbox, raise gearbox and remove both mountings.

22. Lower gearbox sufficiently to access top of gearbox.

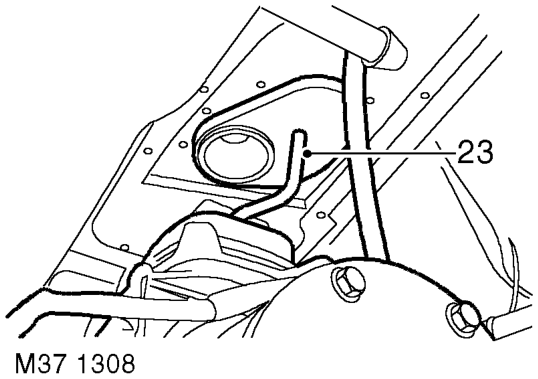

23. Ensure gear lever is released from grommet and no wires or pipes are trapped when gearbox is lowered.

23 Transmission
