Workshop Manuals Factory service & repair Land Rover
Land Rover Discovery II (UK)41 · Panel repairs
41 · General

Panel repairs (Welding): Procedures (page 2 of 3)

Make
Land Rover
Model
Discovery II (UK)
Section
Procedures
Panel repairsWelding · page 2 of 3
Diagram

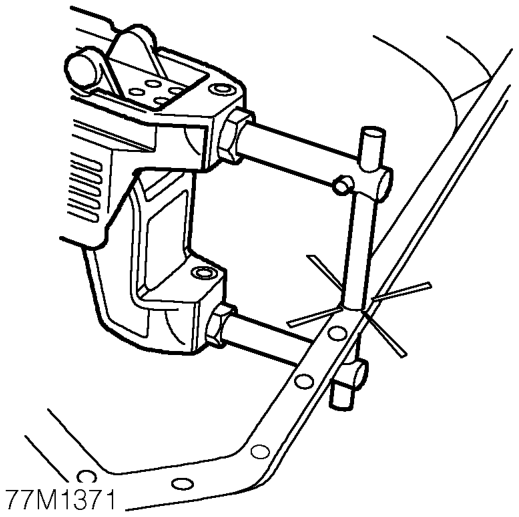

  1. Use a resistance spot welder where access permits. Try to ensure weld quality by using a welding monitor where possible.
Use a resistance spot welder where access permits. Try to ensure weld quality by using a w

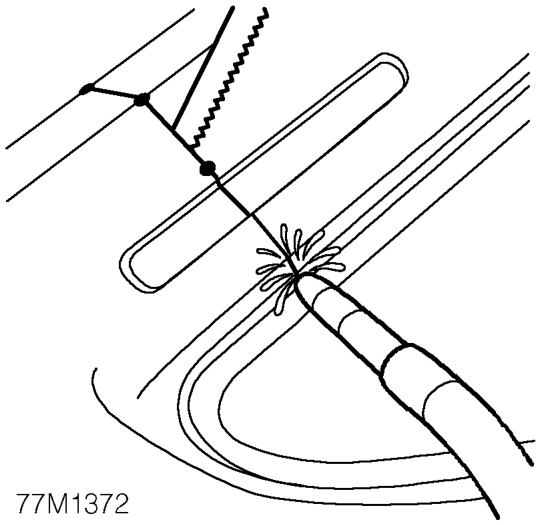

  1. MIG tack weld butt joints and re-check alignment and panel contours where necessary. Ensure that a gap is maintained to minimise welding distortion, by inserting a hacksaw blade as an approximate guide.
MIG tack weld butt joints and re-check alignment and panel contours where necessary. Ensur

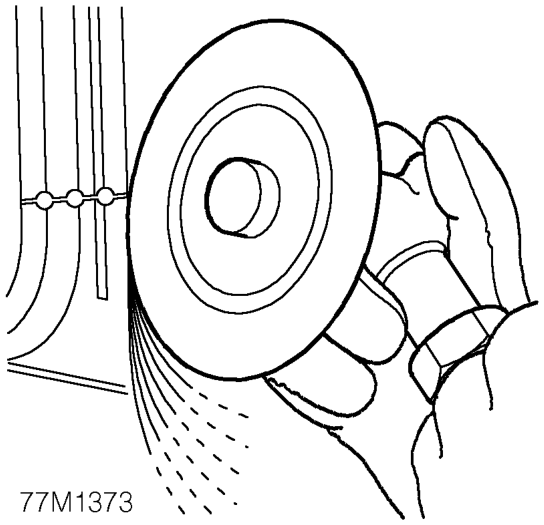

  1. Dress MIG tack welds using a sander with 36 grit disc, or a belt-type sander where access is limited.
Dress MIG tack welds using a sander with 36 grit disc, or a belt-type sander where access

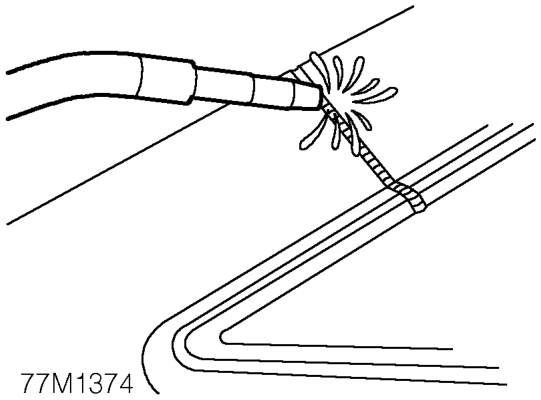

  1. MIG seam weld butt joints.
