Air supply unit (Rear suspension)

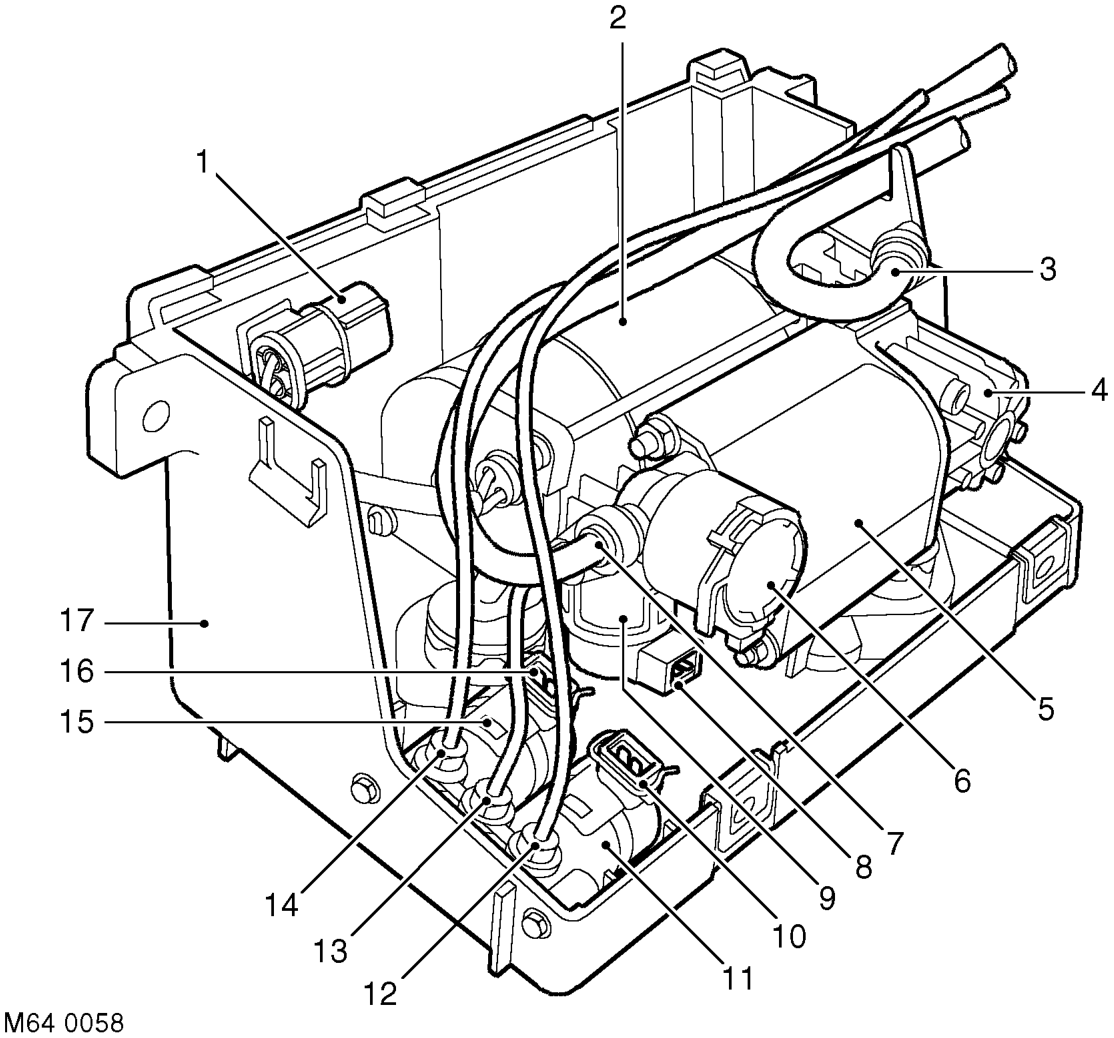

Air supply unit

1 Compressor electrical connector 2 Electric motor 3 Air intake hose 4 Compressor 5 Air dryer 6 Pressure limiting valve 7 Exhaust hose 8 Exhaust valve electrical connector (black harness connector) 9 Exhaust valve

10 LH air valve electrical connector (blue harness connector) 11 LH air valve 12 LH air spring supply pipe 13 Air supply/exhaust pipe 14 RH air spring supply pipe 15 RH air valve 16 RH air valve electrical connector (natural harness connector) 17 Housing

The air supply unit is located in a central position on the outside of the left hand chassis longitudinal. The unit is contained in a plastic housing attached to the chassis. The housing has a removable lid which is secured with Dzus fasteners for access to the unit.
