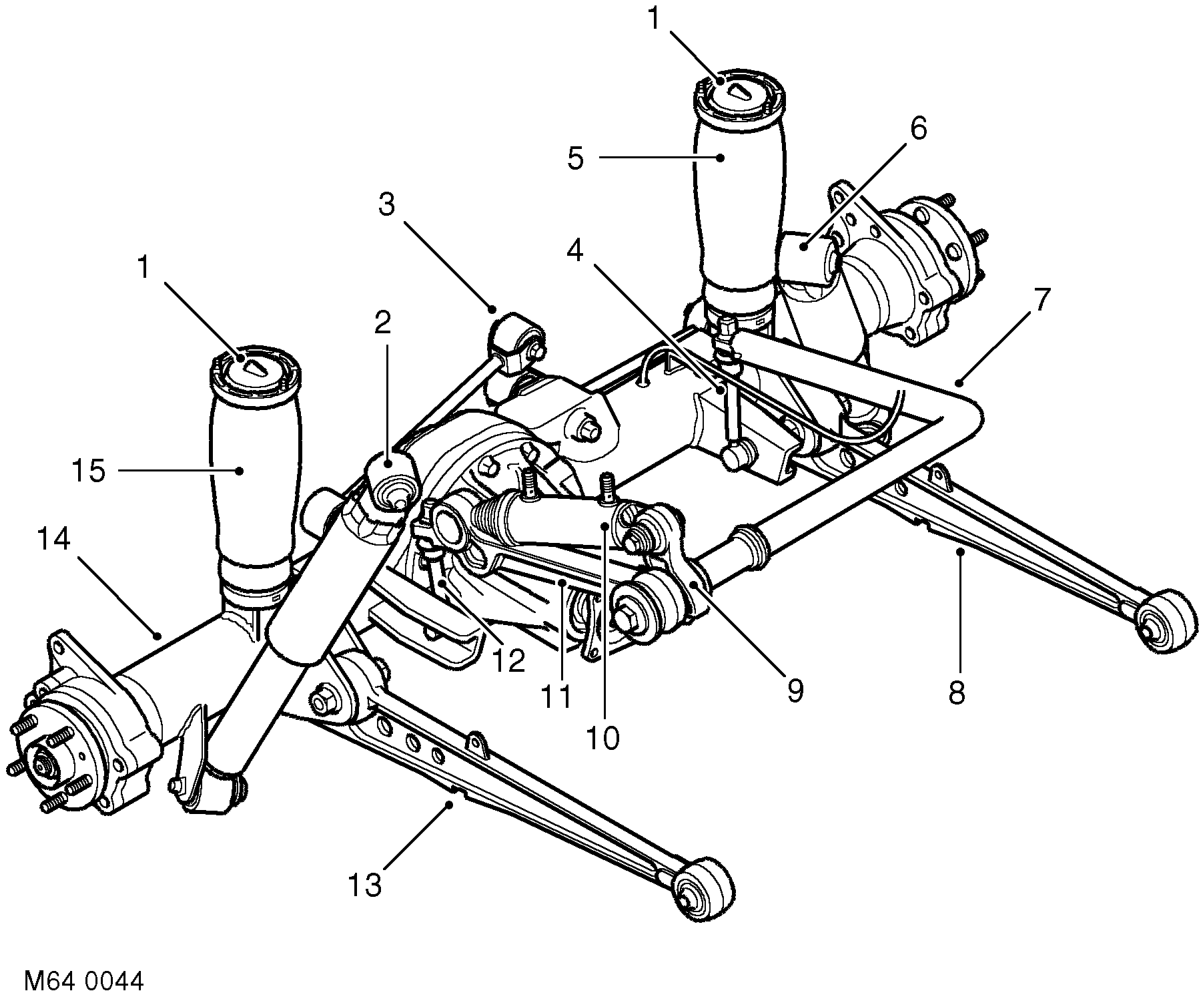

Rear suspension component layout (vehicles with SLS)

1 Air pressure pipe connector 2 Damper RH 3 Watts linkage 4 Anti-roll bar link LH 5 Air spring LH 6 Damper LH 7 Torsion/Anti-roll bar 8 Radius arm LH

9 ACE short arm (if fitted) 10 ACE actuator (if fitted) 11 ACE long arm (if fitted) 12 Anti-roll bar link RH 13 Radius arm RH 14 Rear axle 15 Air spring RH
