Rear suspensionSLS component layout
DESCRIPTION AND OPERATION

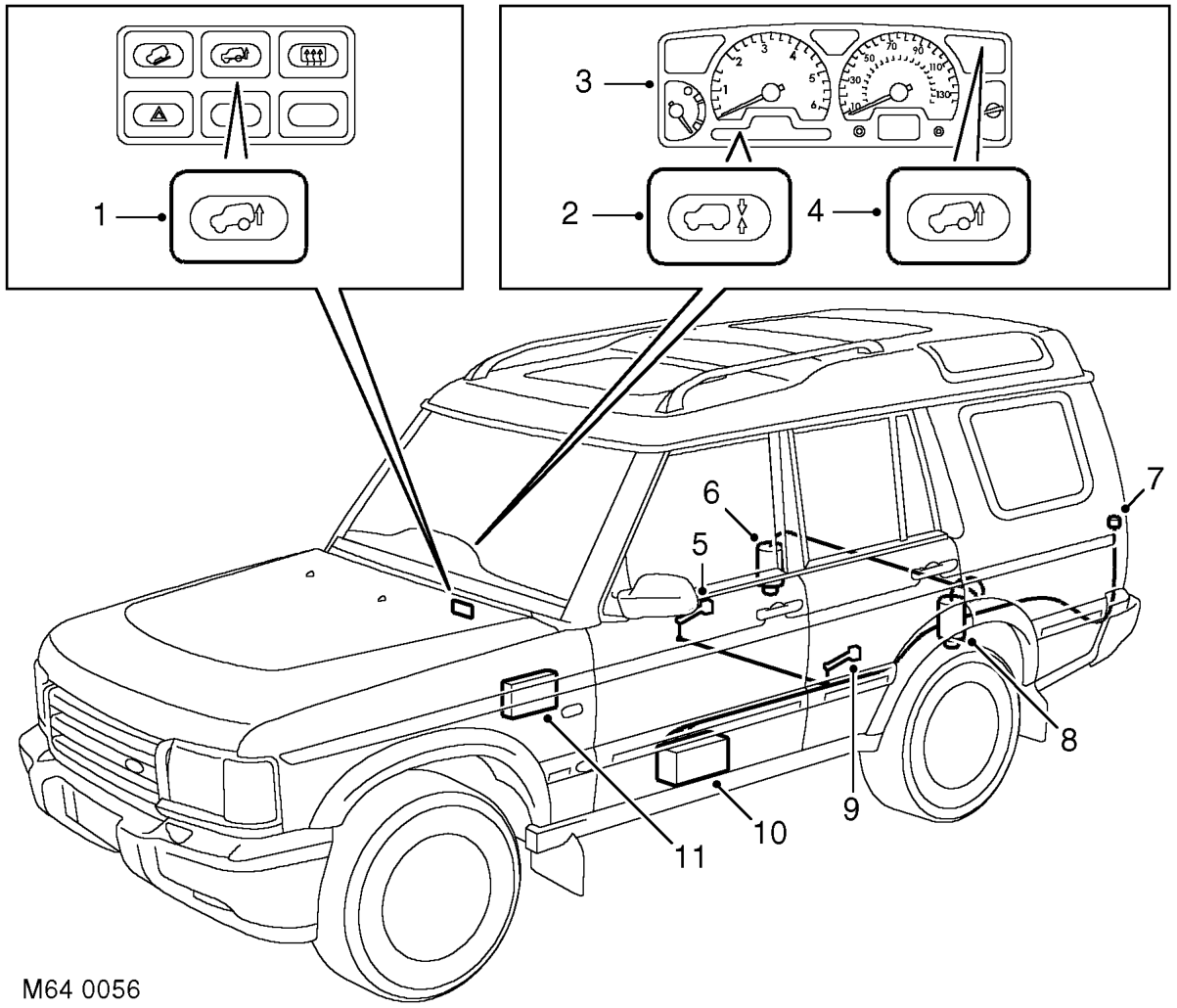

SLS component layout
RH drive shown, LH drive similar
1 Off-road mode switch 2 SLS warning lamp 3 Instrument pack 4 Off-road mode warning lamp 5 RH Height sensor 6 RH Air spring 7 Air inlet filter 8 LH Air spring 9 LH Height sensor 10 Air supply unit 11 SLABS ECU
